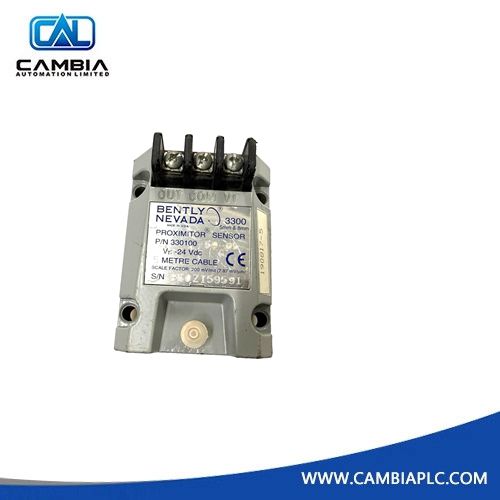

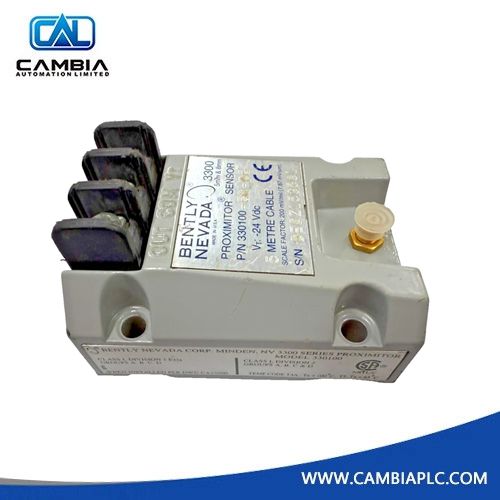

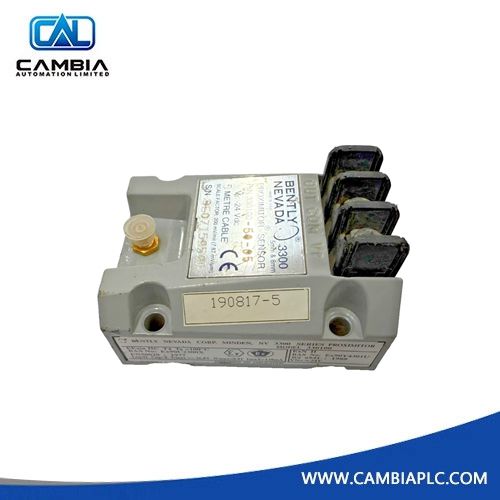

Bently Nevada 330100-50-05 3300 XL Proximitor Sensor
In stock, ready to ship
Manufacturer: Bently Nevada
Product No.: 330100-50-05
Product Type: 3300 XL Proximitor Sensor
Product Origin: USA
Payment: T/T
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Description
The Bently Nevada 330100-50-05 is a core electronic component of the 3300 XL 8 mm Proximity Transducer System, the industry standard for machinery protection and condition monitoring. This Proximitor sensor acts as a signal conditioner, converting the gap between an 8 mm proximity probe and a rotating shaft into a high-precision voltage signal.
The “50” configuration is calibrated for a 5.0-meter total system length, providing a standardized 200 mV/mil output compatible with most vibration monitoring racks and DCS systems. The -05 suffix denotes a specific combination of agency approvals or mounting configurations for specialized industrial requirements.
Engineered for maximum reliability, the 330100-50-05 offers exceptional temperature stability and signal linearity, enabling early detection of shaft vibration, axial movement, and eccentricity in critical assets like gas turbines, steam turbines, and centrifugal compressors.
Technical Specifications
| Feature | Specification |
|---|---|
| Product Series | 3300 XL 8 mm Proximity Transducer System |
| Part Number | 330100-50-05 |
| Total System Length | 5.0 m (16.4 ft) |
| Output Scale Factor | 7.87 V/mm (200 mV/mil) |
| Linear Range | 2.0 mm (80 mils) |
| Input Voltage | -17.5 V DC to -26 V DC |
| Frequency Response | 0 Hz (DC) to 10 kHz |
| Operating Temperature | -51 °C to +100 °C |
| Physical Weight | 0.5kg |
Application Scenarios
The 330100-50-05 is used for critical machinery protection in heavy industrial assets:
-
Radial Vibration: Detecting unbalance, misalignment, or bearing wear in high-speed rotors.
-
Thrust Monitoring: Sub-millimeter tracking of axial shaft position to prevent internal turbine contact.
-
Phase Reference: Serves as a Keyphasor®, providing a once-per-revolution pulse for vibration analysis.
-
Speed Sensing: Provides a high-frequency pulse train for tachometers and overspeed trip systems.
Frequently Asked Questions
Q: What does the -05 option signify?
A: The -05 denotes a specific set of regional or international approvals (e.g., INMETRO, KOSHA) or specific mounting requirements, ensuring the device meets the standards of the target installation region.
Q: Can I use this with a non-XL Bently Nevada probe?
A: While compatible with standard 3300 8 mm probes and cables, the 3300 XL system improves temperature stability, linearity, and overall performance when used with genuine 3300 XL components.
