Bently Nevada

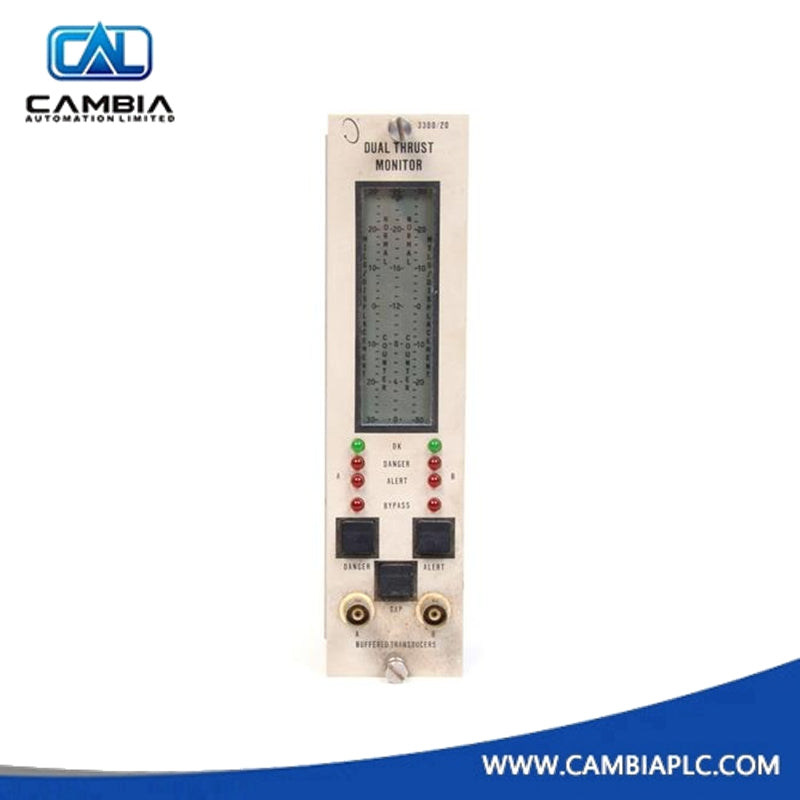

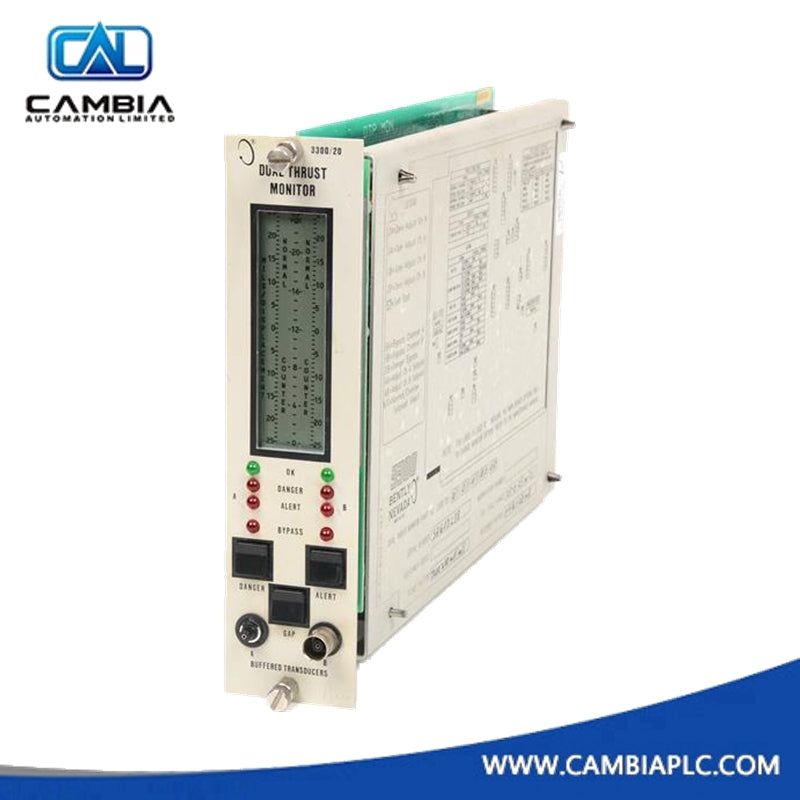

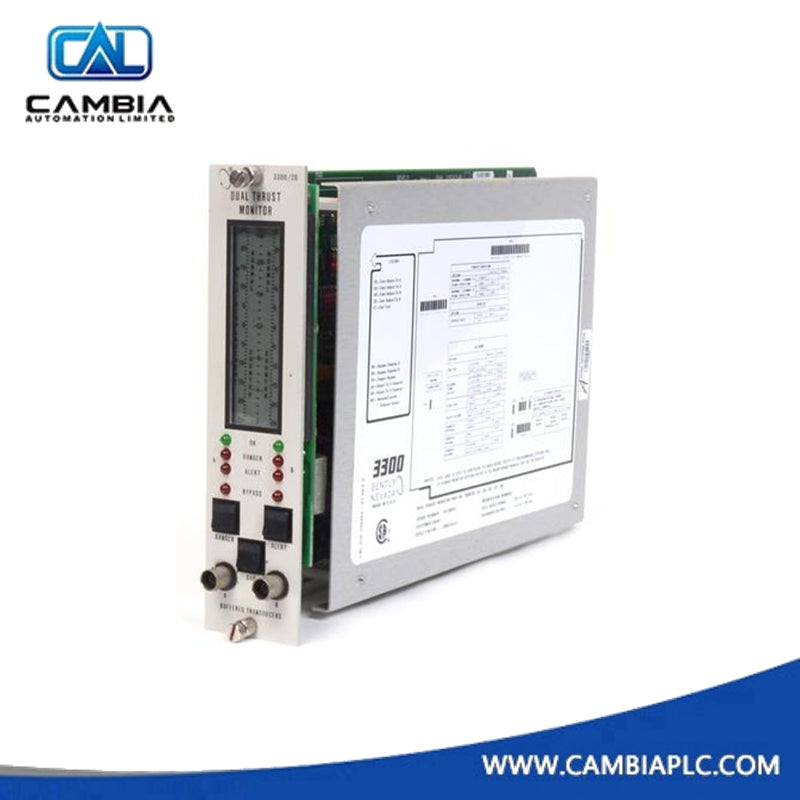

Bently Nevada 3300/20-12-01-02-03-02 Dual Thrust Position Monitor
In stock, ready to ship
Manufacturer: Bently Nevada
Product No.: 3300/20-12-01-02-03-02
Product Type: Dual Thrust Position Monitor
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The Bently Nevada 3300/20-12-01-02-00-00 is a Dual Thrust Position Monitor specifically designed for monitoring the axial (thrust) position of rotating machinery shafts. It provides continuous and independent monitoring of two channels, allowing accurate assessment of shaft movement relative to axial clearances within the machine.
Key Features:
-
Dual-Channel Monitoring – Enhances system reliability through independent measurement of two axial positions.
-
High Accuracy and Sensitivity – Delivers precise monitoring for critical machinery protection.
-
Wide Full-Scale Range Options – Suitable for various machine types and configurations.
-
Probe Compatibility – Supports a broad range of Bently Nevada proximity probes.
-
User-Friendly Design – Simplified installation and configuration reduce commissioning time.
Technical Specifications:
| Parameter | Details |
|---|---|
| Output | 4–20 mA, two independent channels |
| Accuracy | ±1% of full-scale range |
| Resolution | 0.1% of full-scale range |
| Operating Temperature | -40°C to +80°C (-40°F to +176°F) |
| Storage Temperature | -60°C to +85°C (-76°F to +185°F) |
| Humidity Range | 0% to 95% RH (non-condensing) |
| Vibration | 0.06 g RMS (10 to 2000 Hz) |
| EMC Compliance | CE Compliant |
