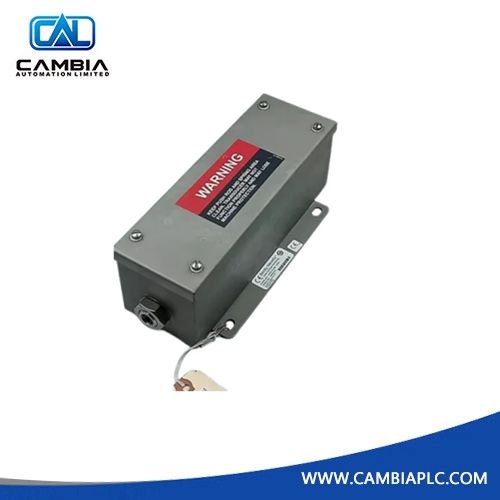

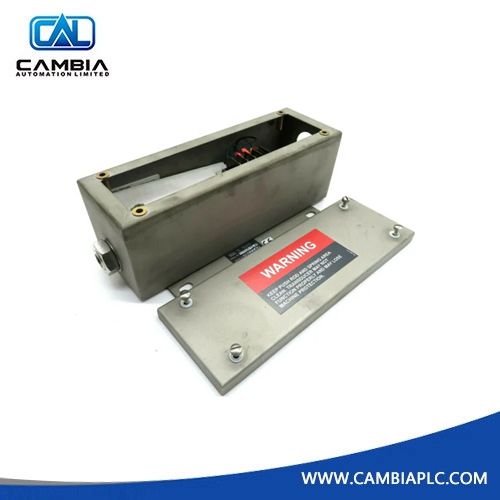

Bently Nevada 24765-02-00 Case Expansion Transducer LVDT Sensor
In stock, ready to ship
Manufacturer: Bently Nevada
Product No.: 24765-02-00
Product Type: Case Expansion Transducer LVDT Sensor
Product Origin: USA
Payment: T/T
Weight: 2500g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Overview
The Bently Nevada 24765-02-00 Case Expansion Transducer is a Linear Variable Differential Transformer (LVDT) sensor designed to measure case expansion and thermal growth in large rotating machinery such as turbines, compressors, and generators. It provides highly accurate displacement measurements, enabling operators to monitor thermal expansion and prevent mechanical stress or misalignment. The sensor features rugged construction and long-term stability, making it suitable for mission-critical environments in power generation and heavy industry.
Additionally, the 24765-02-00 integrates seamlessly with Bently Nevada monitoring systems, ensuring reliable data acquisition and predictive maintenance capabilities. Therefore, it is widely adopted in industries where machinery protection and operational reliability are essential.
Technical Data
| Parameter | Specification |
|---|---|
| Model | 24765-02-00 |
| Type | Case Expansion Transducer (LVDT Sensor) |
| Operating Temperature | –30 °C to +100 °C |
Typical Applications
-
Power Generation: Monitoring turbine case expansion to prevent rotor-to-stator contact.
-
Oil & Gas: Measuring compressor case growth during thermal cycling.
-
Petrochemicals: Ensuring safe operation of large process machinery under varying thermal loads.
-
Heavy Industry: Tracking displacement in generators and large rotating equipment.
-
Industrial Automation: Providing precise displacement feedback for predictive maintenance systems.
The 24765-02-00 is frequently deployed in turbine monitoring systems where controlling thermal expansion is critical to avoid costly downtime.
FAQ
Q1: What is the primary function of the 24765-02-00?
A1: It measures case expansion and thermal growth in large rotating machinery using LVDT technology.
Q2: What monitoring systems is it compatible with?
A2: It integrates with Bently Nevada 3300 and 3500 series monitoring systems.
Q3: What is the measurement range?
A3: The sensor typically measures ±25 mm of displacement.
Q4: What industries use this transducer?
A4: Power generation, oil and gas, petrochemicals, and heavy industry.
Q5: Why is case expansion monitoring important?
A5: It prevents mechanical stress, misalignment, and potential rotor-to-stator contact in turbines and compressors.
