Bently Nevada

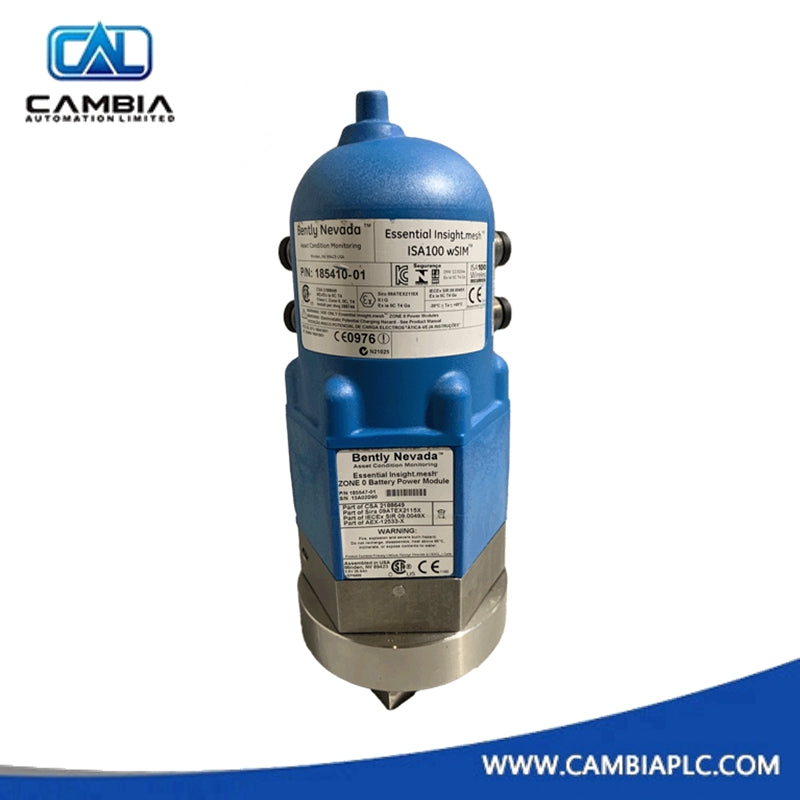

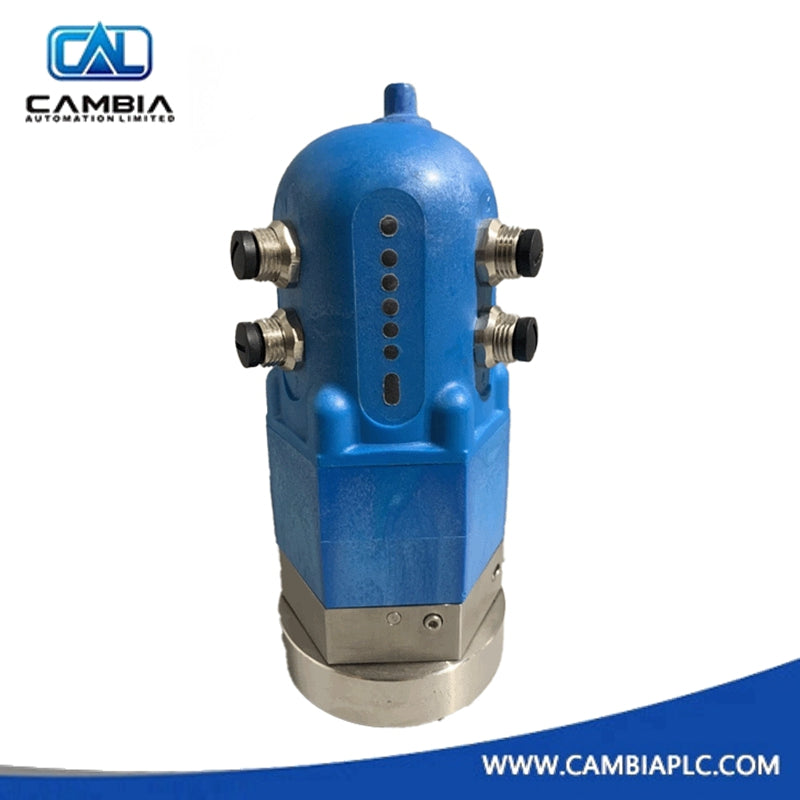

Bently Nevada 185410-01 Wireless Sensor Interface Module
In stock, ready to ship
Manufacturer: Bently Nevada
Product No.: 185410-01
Product Type: Wireless Sensor Interface Module
Product Origin: USA
Payment: T/T
Weight: 760g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The Bently Nevada 185410‑01 Wireless Sensor Interface Module (wSIM) is a crucial component of the Essential Insight.mesh™ wireless monitoring system. It enables the wireless acquisition of vibration and temperature data from industrial machinery, supporting real-time monitoring and diagnostics. Designed for integration with ISA100.11a wireless mesh networks, this module offers a scalable and reliable solution for condition monitoring across a wide range of industrial applications.
Key Features
-
Wireless Data Acquisition: Seamlessly collects vibration and temperature data from machinery, enhancing condition monitoring capabilities.
-
Network Integration: Operates within ISA100.11a wireless mesh networks, ensuring scalability and flexibility.
-
Extended Coverage: Provides a wide coverage range, supporting up to 200 meters line-of-sight and approximately 30 meters indoors.
-
Real-Time Monitoring: Facilitates continuous, real-time diagnostics and monitoring of machinery performance.
-
Mounting Flexibility: Offers versatile mounting options, including DIN rail, panel, or enclosure mounting.
Specifications
| Parameter | Specification |
|---|---|
| Model Number | 185410‑01 |
| Product Type | Wireless Sensor Interface Module (wSIM) |
| Wireless Protocol | ISA100.11a (IEC 62734 compliant) |
| Frequency Band | 2.4 GHz ISM |
| Transmit Power | +20 dBm (100 mW max) |
| Receiver Sensitivity | –100 dBm typical |
| Coverage Range | Up to 200 m line-of-sight; ~30 m indoors |
| Data Rate | 250 kbps PHY; mesh packets up to 40 kbps |
| Network Capacity | Supports up to 100 sensor nodes per gateway |
| Power Input | 24 V DC ±10% @ 100 mA |
| Power Consumption | ≤ 2.5 W peak |
| Mounting Options | DIN rail, panel, or enclosure |
| Operating Temperature | −30 °C to +65 °C |
| Storage Temperature | −40 °C to +85 °C |
| Humidity | Up to 95%, non-condensing |
| Environmental Rating | IP30 standard; IP65 option available |
| Dimensions | 16 cm × 16 cm × 12 cm |
| Weight | 0.8 kg |
| Warranty | 12 months |
