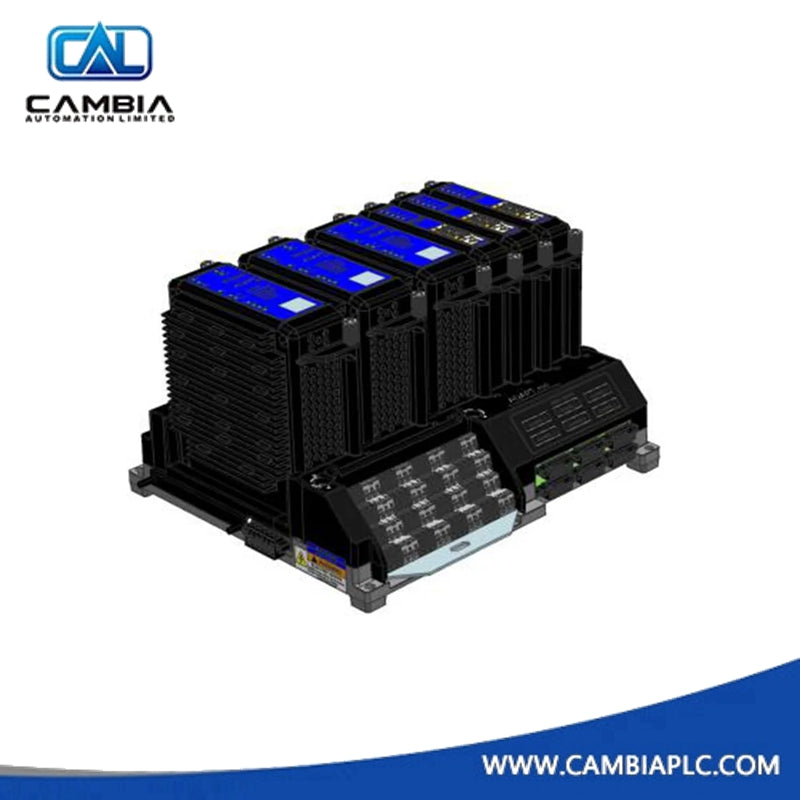

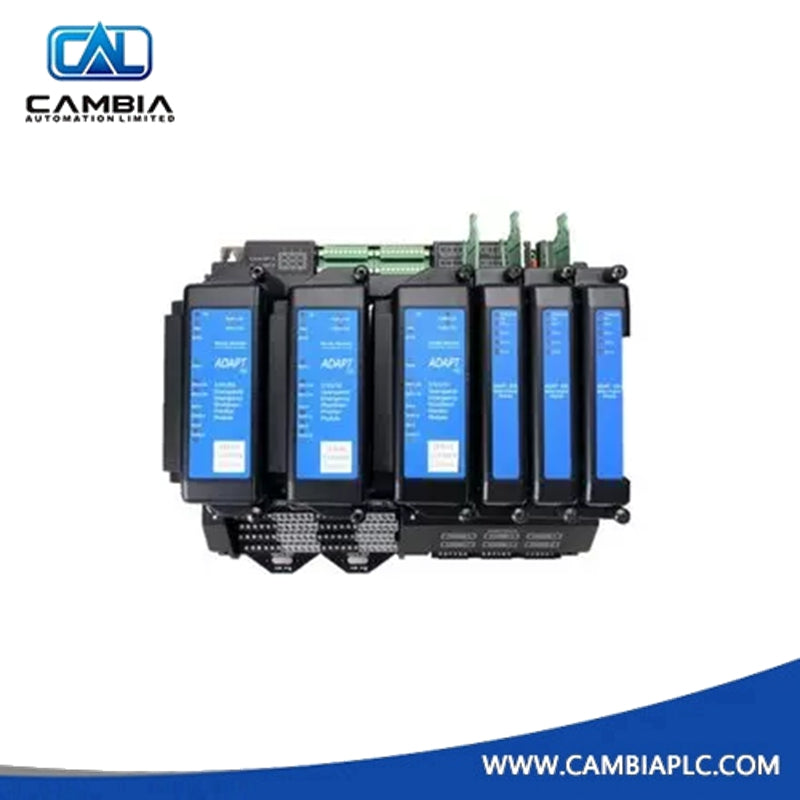

Bently Nevada 177896-01 Processor Module

The Bently Nevada 177896-01 is a 3701/40 Processor Module used in the 3701 Series Machinery Protection System. It processes vibration and sensor data from rotating equipment, enabling real-time fault detection and alarm generation for critical assets such as turbines, compressors, and motors.

Specifications:

• Model: 177896-01

• Product Type: 3701/40 Processor Module

• Function: Vibration data processing and machinery protection

• Input Channels:

• Up to 12 dynamic signals

• 2 Keyphasor/speed signals

• Signal-to-Noise Ratio: 110 dB @ 102.4 ksps

• A/D Conversion: 24-bit Sigma-Delta

• Bandwidth: 0.0625 Hz to 40 kHz

• Communication Interfaces:

• Ethernet

• Serial

• Proprietary protocols

• Power Supply: Typically 24 V DC

• Mounting Type: Rack-mounted or panel-mounted

• Operating Temperature: –20°C to +65°C

• Software Compatibility: System 1™ and other Bently Nevada platforms

• Weight: Approx. 4.5 kg

• Origin: USA

Key Features:

• Real-Time Monitoring: Enables continuous condition monitoring of rotating machinery.

• Advanced Fault Detection: Identifies vibration anomalies such as imbalance, misalignment, and bearing wear.

• High Signal Fidelity: 24-bit resolution and wide bandwidth for precise diagnostics.

• Flexible Integration: Compatible with various sensor types, including accelerometers and proximity probes.

• Alarm Generation: Supports configurable thresholds and relay outputs for protective actions.

• System Compatibility: Seamlessly integrates with Bently Nevada’s System 1™ software.

• Industrial Reliability: Designed for harsh environments and mission-critical applications.
