Bently Nevada

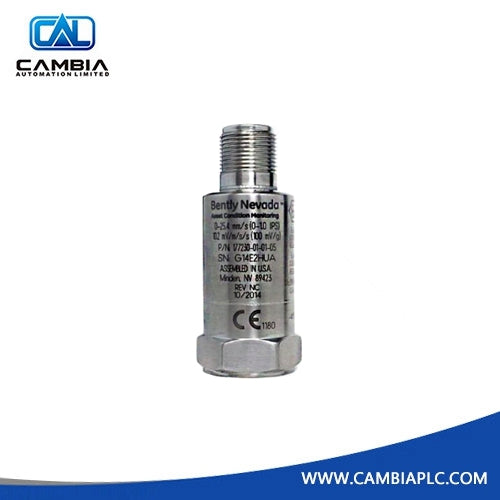

Bently Nevada | 177230-02-02-05 | Seismic Transmitter 50.8 mm/s
Manufacturer: Bently Nevada
Product No.: 177230-02-02-05
Product Type: Seismic Transmitter
Product Origin: USA
Payment: T/T
Weight: 1900g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Bently Nevada 177230-02-02-05 is a loop-powered seismic transmitter that converts machine vibration velocity into a 4–20 mA output for PLC, DCS and SCADA systems. Full-scale range is 0–50.8 mm/s (0–2.0 in/s) with multiple agency approvals.
Key Specs
- Type: Loop-powered seismic (velocity) transmitter
- Full-scale range: 0–50.8 mm/s (0–2.0 in/s) ±10%
- Output: 4–20 mA current loop
- Frequency response: 3 Hz to 1 kHz class
- Excitation: 12–30 V DC (current limited to 40 mA)
- Case: 316L stainless steel, hermetically sealed
- Mounting: 1/4-28 UNF (adapters available)
- Agency: Multiple approvals (05)
Why Choose This
- Simple 2-wire loop-powered installation
- Higher velocity range for machines with larger vibration levels
- Rugged 316L housing for industrial environments
- Direct interface to PLC/DCS 4–20 mA inputs
Common Questions
- Range? 0–50.8 mm/s full scale.
- Output? 4–20 mA loop-powered.
- Mounting? 1/4-28 UNF standard.
Mounting Steps
- Mount the transmitter on a clean, flat surface using the correct stud or adapter.
- Torque to the specified range (approx. 4–7 N·m).
- Wire the 3-pin MIL-C-5015 connector to the 4–20 mA loop (Pins A/B) and optional dynamic signal if used.
- Apply 12–30 V DC loop power and allow settling time.
- Verify 4–20 mA scaling and vibration readings in the control system.
Buying Advice
- Select the 02 range when full-scale velocity up to 50.8 mm/s is required.
- Confirm agency approvals and mounting thread for the installation site.
- Useful spare for loop-powered seismic monitoring points.
