Bently Nevada

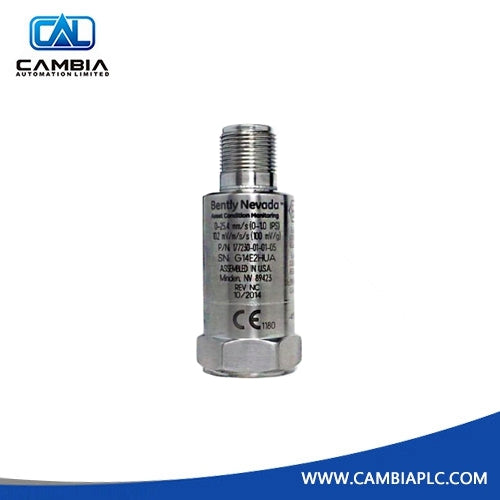

Bently Nevada 177230-00-02-05 Seismic Transmitter 0.5 in/s
Manufacturer: Bently Nevada
Product No.: 177230-00-02-05
Product Type: Seismic Transmitter
Product Origin: USA
Payment: T/T
Weight: 1200g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Bently Nevada 177230-00-02-05 is a loop-powered seismic transmitter with 0–12.7 mm/s (0–0.5 in/s) full-scale velocity range and frequency response option 02. It delivers a 4–20 mA output for PLC, DCS and SCADA systems and carries multiple agency approvals.
Key Specs
- Type: Loop-powered seismic (velocity) transmitter
- Full-scale range: 0–12.7 mm/s (0–0.5 in/s) ±10%
- Frequency response: 3 Hz to 1 kHz class (option 02)
- Output: 4–20 mA current loop
- Excitation: 12–30 V DC (current limited to 40 mA)
- Case: 316L stainless steel, hermetically sealed
- Mounting: 1/4-28 UNF
- Agency: Multiple approvals (05)
Why Choose This
- Low full-scale range for higher resolution on low-vibration machines
- Broad frequency response option for general machinery monitoring
- Rugged industrial construction and hazardous-area approvals
- Easy integration into existing 4–20 mA control loops
Common Questions
- Range? 0–12.7 mm/s.
- Frequency? 3 Hz–1 kHz class.
- Output? 4–20 mA loop-powered.
Mounting Steps
- Mount the transmitter using the specified stud and torque range.
- Wire Pins A/B for the 4–20 mA loop; use Pin C for dynamic signal if required.
- Apply loop power and wait for settling (typically under 15 s).
- Verify zero and full-scale correspondence in the receiving system.
- Confirm readings under normal operating conditions.
Buying Advice
- Choose this configuration for low-range velocity monitoring with standard frequency response.
- Confirm mounting thread adapters and agency needs for the site.
- Critical spare for 177230 seismic transmitter positions at 0–12.7 mm/s.
