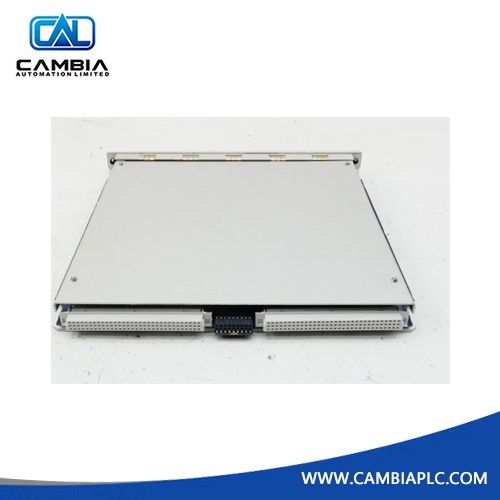

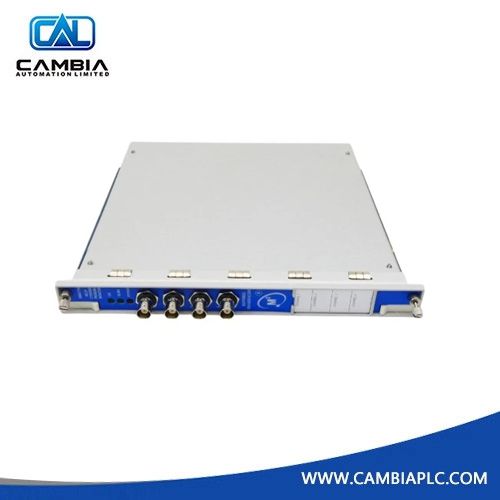

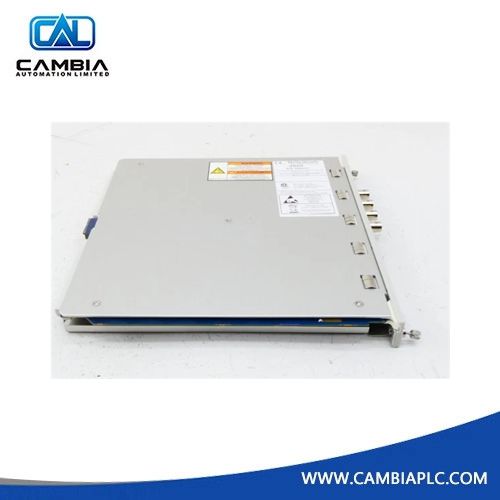

Bently Nevada 176449-07 Cylinder Pressure Monitor 3500 System Integration

Product Description

The Bently Nevada 176449-07 Cylinder Pressure Monitor is designed for precise measurement and monitoring of cylinder pressure in reciprocating machinery such as compressors, engines, and pumps. By continuously tracking cylinder pressure, the module helps detect issues including leaks, valve malfunctions, and combustion irregularities, ensuring machinery protection and operational reliability.

Integrated with the Bently Nevada 3500 monitoring system via the TDI bus, the 176449-07 supports multiple channels for simultaneous monitoring of up to four cylinders. Configurable alarms and trip functions provide proactive protection, triggering alerts or shutdowns when pressure exceeds safe operating limits.

Key Features

• Monitors cylinder pressure in reciprocating compressors, engines, and pumps

• Detects leaks, valve problems, and combustion irregularities

• Configurable alarms and trip functions for machinery protection

• Supports up to 4 monitoring channels

• Pressure measurement capability up to 10,000 psi

• Accuracy of 0.5% or better of full-scale pressure

• Compatible with analog voltage and current sensor signals

• Communicates with the 3500 system via TDI bus

Applications

• Cylinder pressure monitoring in reciprocating compressors

• Engine combustion analysis and performance optimization

• Pump condition monitoring and protection

• Integration into Bently Nevada 3500 machinery protection systems

Technical Specifications
