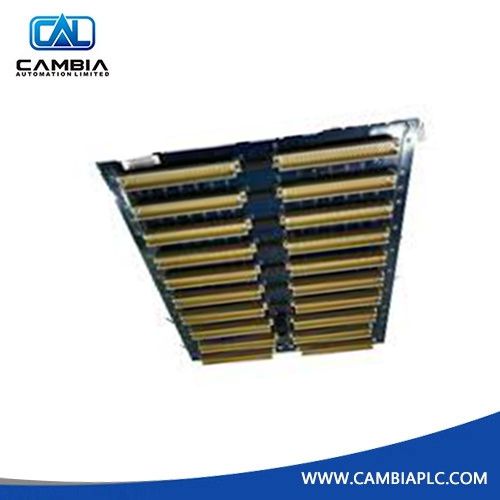

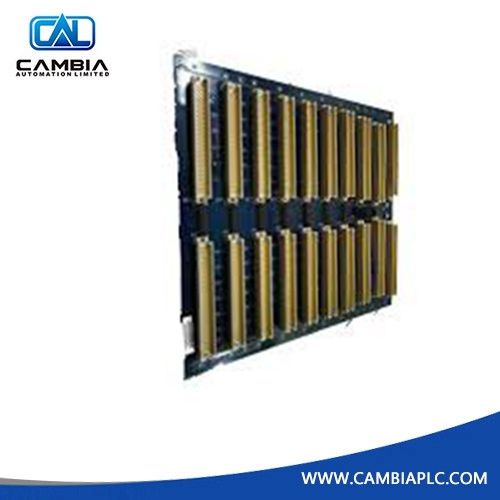

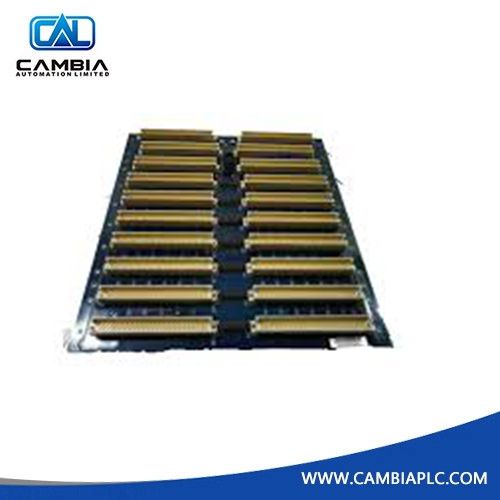

Bently Nevada 144464-01 3500/05 Mini-Rack Backplane

Product Description

The 144464-01 is a high-reliability Mini-Rack Backplane designed for the Bently Nevada 3500/05 Machinery Protection System. Serving as the physical and electrical backbone of the 3500 monitoring rack, it provides power distribution and the communication bus for all installed modules, enabling seamless data exchange between monitor modules, power supplies, and rack interface modules.

Engineered for mission-critical industrial environments, the 144464-01 ensures high-speed vibration and position signals remain stable and isolated, supporting SIL-rated safety functions in oil and gas, power generation, and petrochemical facilities. Its compact 7-slot design optimizes cabinet space without compromising performance, while a rugged aluminum frame and industrial-grade circuitry provide long-term durability against mechanical vibrations and electrical noise.

Key Features

• System Core Infrastructure: Provides critical backbone for power distribution and internal TMR communication.

• Space-Optimized Design: 7-slot Mini-Rack configuration ideal for compact monitoring installations.

• Reliable Data Integrity: Ensures stable signal paths for high-frequency vibration and Keyphasor synchronization.

• Robust Environmental Protection: IP20 rated with a wide operating temperature range for reliable plant-floor use.

• High-Strength Construction: Premium materials resist mechanical stress and ensure long-term rack stability.

Technical Specifications
