Bently Nevada

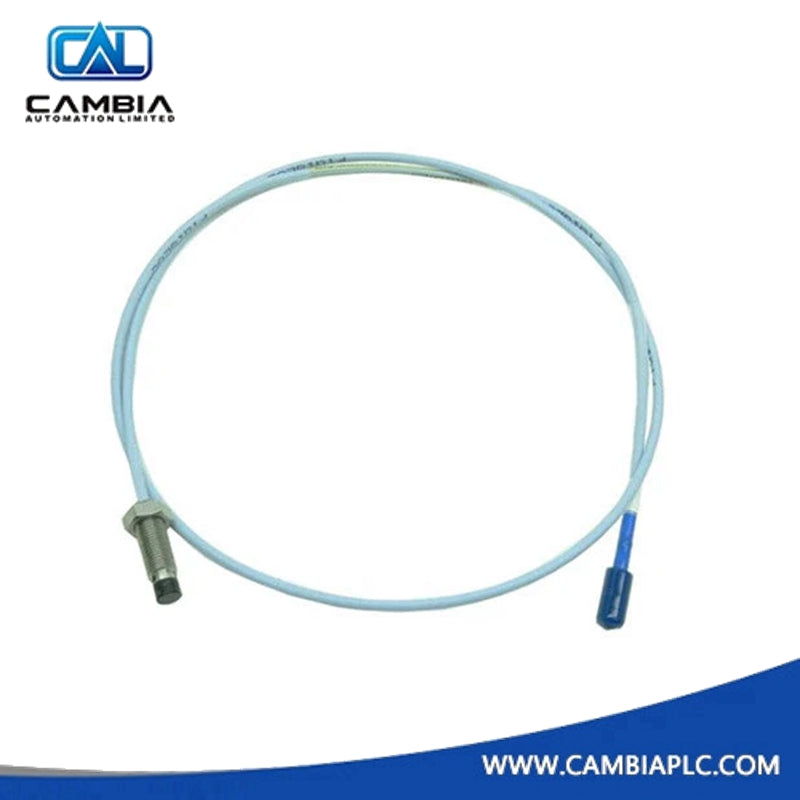

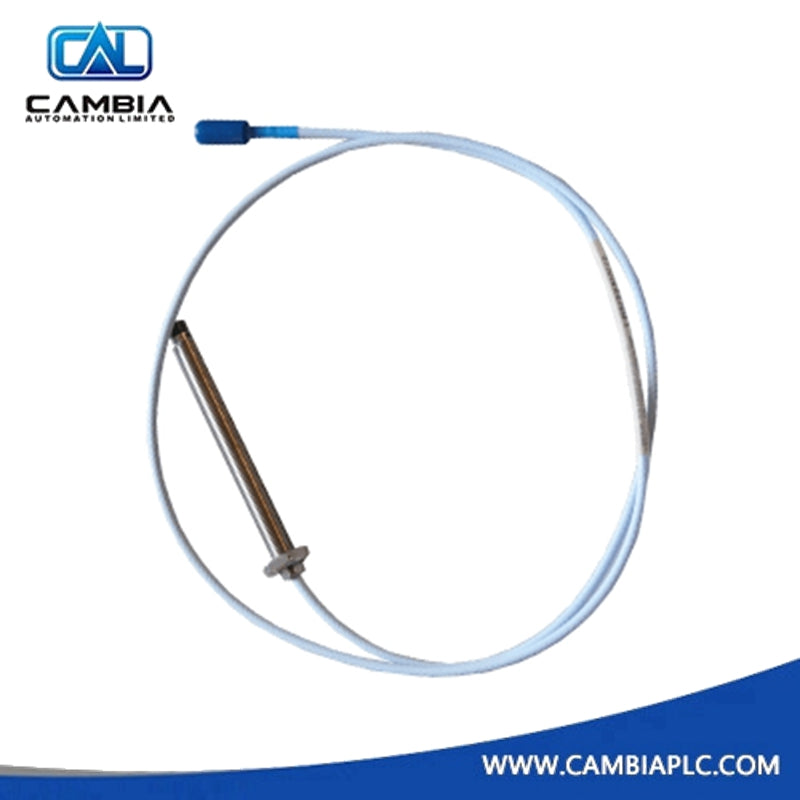

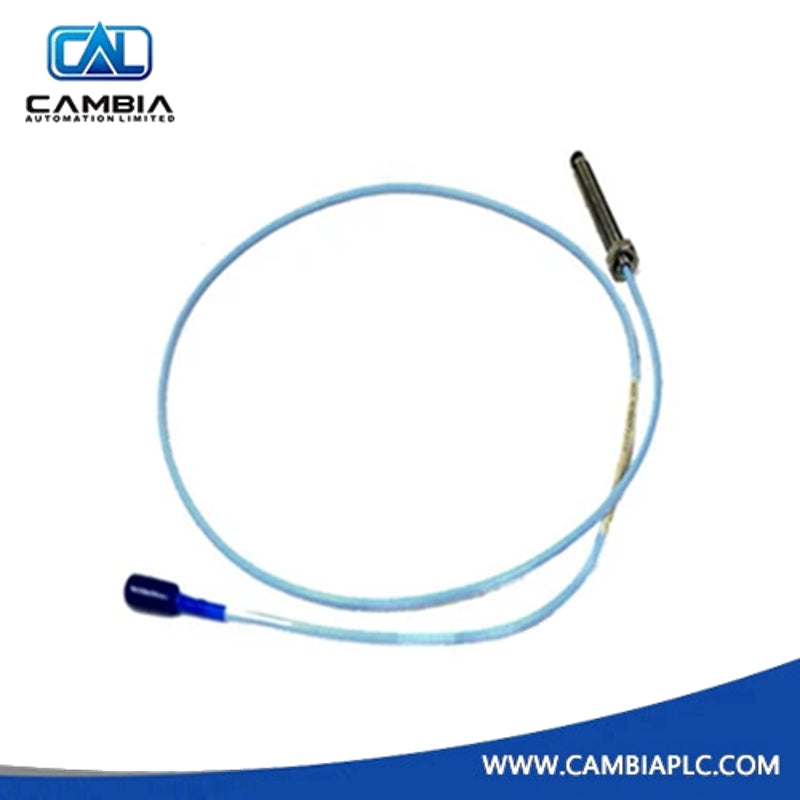

Bently Nevada 137504-08 3300 XL 8 mm proximity probe
In stock, ready to ship
Manufacturer: Bently Nevada
Product No.: 137504-08
Product Type: Proximity Probe
Product Origin: USA
Payment: T/T
Weight: 760g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The Bently Nevada 137504-08 is a high-performance proximity probe assembly from the 3300 XL Series, designed for precise non-contact vibration and position monitoring in rotating machinery. Built in the USA, this probe is engineered to operate reliably in high-temperature and high-humidity industrial environments.
Key Features
-
Non-Contact Sensing for vibration and shaft position in rotating machinery
-
High-Temperature Operation: Withstands up to +177°C for harsh environments
-
API 670 Compliance: Meets 4th Edition standards for critical machinery protection
-
Rugged Materials: Stainless steel housing with PPS tip and FEP cable insulation
-
Preassembled Design: Simplifies setup with integrated probe and cable
-
Flexible Mounting Threads: Supports 1/4–28 UNF or M8 × 1 configurations
-
Moisture Resistant: Performs in 100% condensing humidity when properly sealed
-
Interchangeable with 3300 XL extension cables and Proximitor® sensors
Technical Specifications
| Parameter | Description |
|---|---|
| Model | 137504-08 |
| Manufacturer | Bently Nevada |
| Product Type | Proximity Probe |
| Series | 3300 XL |
| Probe Tip Diameter | 8 mm |
| Cable Length | 8 feet (≈ 2.4 meters) |
| Probe Housing Material | Stainless steel |
| Tip Material | PPS (Polyphenylene sulfide) |
| Cable Insulation | FEP (Fluoroethylene propylene) |
| Operating Temp (Probe/Cable) | –52°C to +177°C |
| Operating Temp (Sensor) | –52°C to +100°C |
| Measurement Range | 2 mm to 5 mm (typical linear range) |
| Mounting Thread | 1/4–28 UNF or M8 × 1 (varies by configuration) |
| Humidity Tolerance | Up to 100% condensing with proper connector sealing |
| Tensile Strength (Probe-Cable) | 330 N |
| Tensile Strength (Lead-Cable) | 270 N |
| Compliance | API 670 (4th Edition) |
| Country of Origin | USA |
Applications
The 137504-08 proximity probe assembly is ideal for industrial condition monitoring systems that require reliable real-time measurement of shaft position and vibration. Common applications include:
-
Gas and steam turbines
-
Centrifugal compressors
-
Electric motors
-
Pumps and gearboxes
-
Other critical rotating equipment
