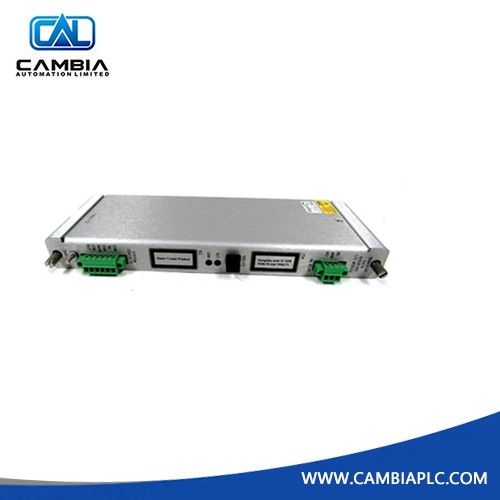

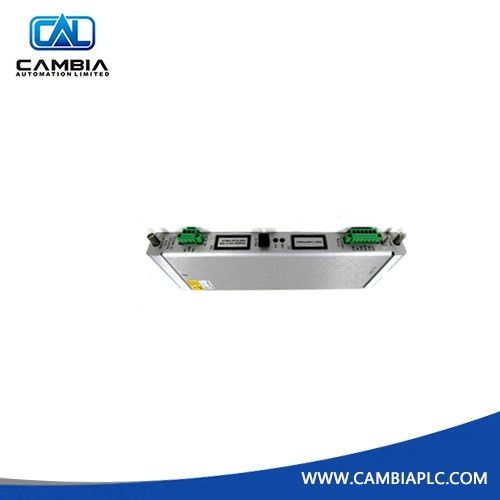

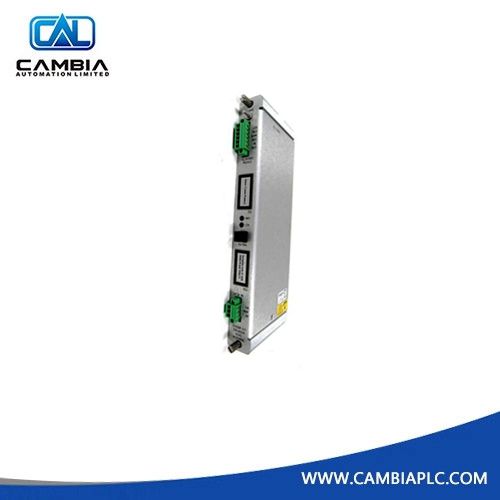

Bently Nevada 125710-01 3500/32 4-Channel Relay I/O Module
In stock, ready to ship
Manufacturer: Bently Nevada
Product No.: 125710-01
Product Type: Relay I/O Module
Product Origin: USA
Payment: T/T
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Description
The 125710-01 is a 4-channel Relay Input/Output (I/O) module for the Bently Nevada 3500 Series Machinery Protection System. It provides the capability to actuate external alarms, sirens, or machine trip circuits based on vibration, position, or temperature monitoring. This module is essential for automated safety interlocking and emergency shutdown (ESD) strategies, supporting programmable relay logic for complex machinery protection schemes.
Technical Specifications
| Item | Specification |
|---|---|
| Part Number | 125710-01 |
| Operating Temperature | -30°C to +65°C |
| Dimensions | 241 mm (H) x 24.4 mm (W) x 99.1 mm (D) |
Key Features & Benefits
-
Programmable Logic: Trigger relays based on individual sensor alerts, danger levels, or combined voting.
-
Fail-Safe Operation: Relays configurable as Normally Energized or De-energized to ensure safe shutdown.
-
API 670 Compliant: Meets industry standards for machinery protection systems.
-
Hot-Swappable: Can be replaced with the rack powered when appropriate bypasses are in place.
Operational Application
The 125710-01 is used to interface the 3500 monitoring system with external actuators such as alarms, sirens, or pilot relays for motor starters. It ensures machinery enters a safe state during abnormal vibration, temperature, or positional events, supporting automated protection and emergency shutdown protocols in turbines, compressors, and other critical rotating equipment.
Technical FAQ
Q: Can this module be used for motor starting?
A: The 2 A relays are intended as “pilot” relays to signal larger motor starters or PLC inputs, not to drive heavy motors directly.
Q: Where is this module installed in the rack?
A: Installs in the rear of the 3500 rack, directly behind the corresponding 3500/32 Relay Module.
