Bachmann

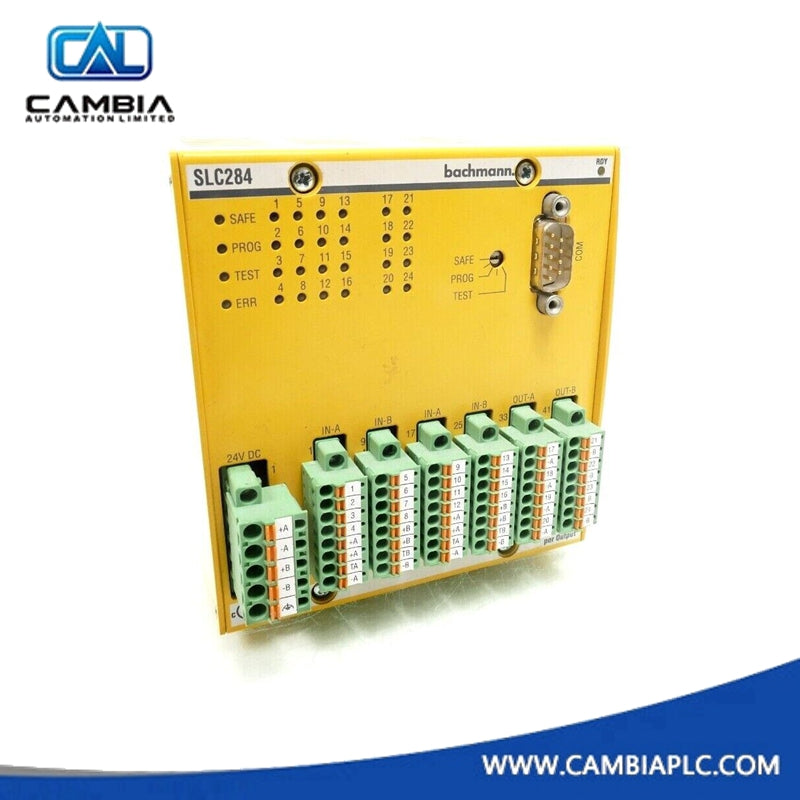

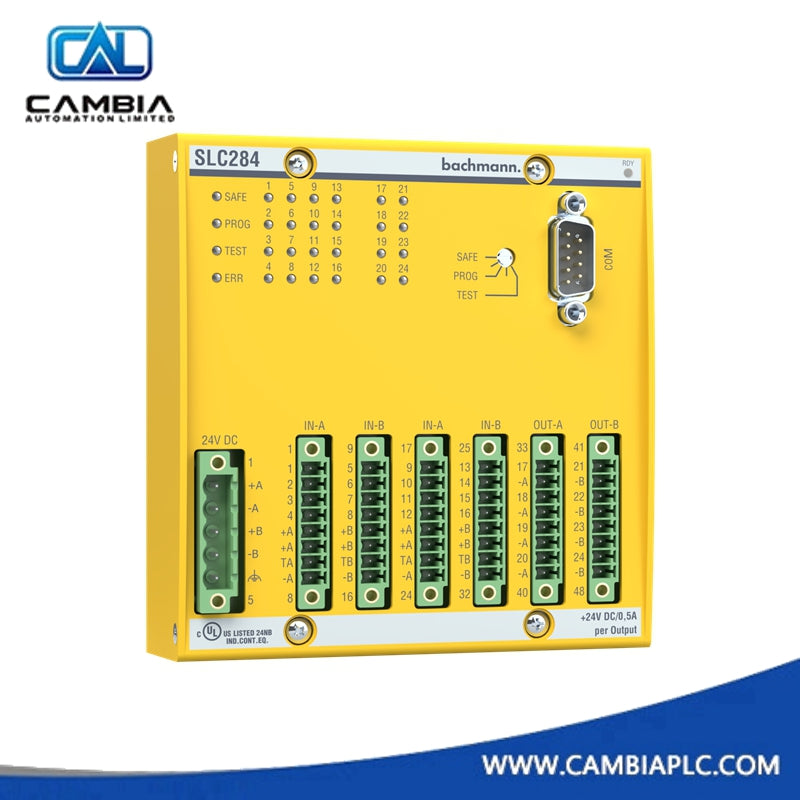

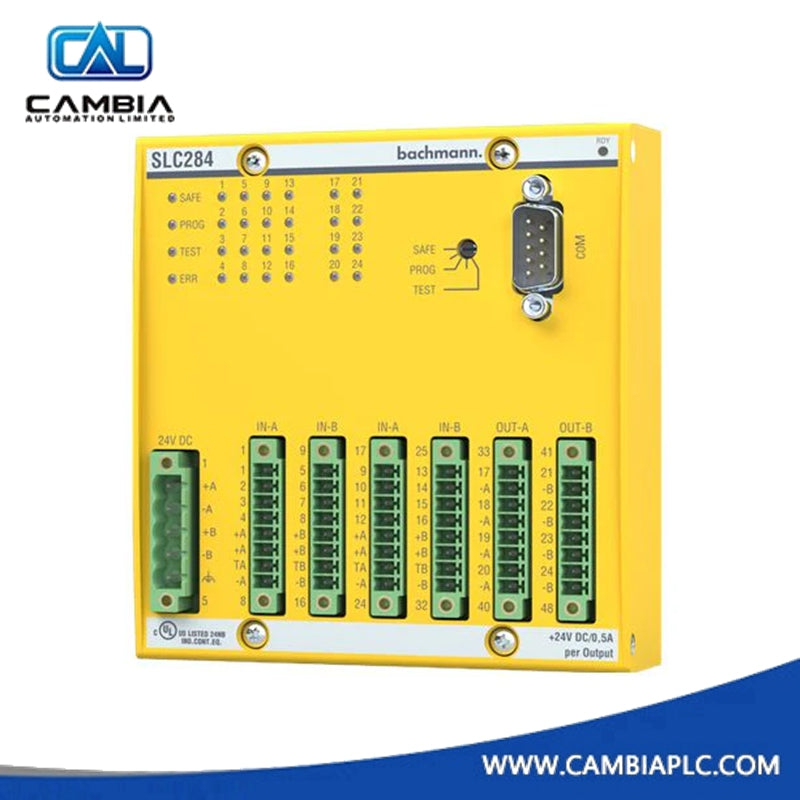

Bachmann SLC284 Safety Processor Module
In stock, ready to ship
Manufacturer: Bachmann
Product No.: SLC284
Product Type: Safety Processor Module
Product Origin: USA
Payment: T/T
Weight: 760g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The SLC284 module, ideally integrated with the M200 controller, functions as an independent, safe, and modern safety controller. It complies with the latest safety standard IEC 61508, ensuring high safety integrity. Communication between the SLC284 and safety I/O modules SDI208 and SDO204 requires no additional cabling. These modules can be distributed across several hundred meters and operate via bus expansion, FASTBUS, CAN, or bluecom protocols.
Features
-
16 digital inputs and 8 digital outputs, configurable for redundant use in pairs (PL e / SIL 3 / Cat 4)
-
Each output includes an emergency delay configurable for communication loss events
-
Safety controller equipped with two independent 32-bit microcontrollers
-
Fast program cycle time of 5 ms for rapid safety response
-
Decentralized I/O operation via FASTBUS or bus expansion modules SDI208 and SDO204
-
Full access to all safety I/O states through the M200 controller
-
Safety programming supported via SolutionCenter software
-
Galvanic isolation between input/output groups
-
Galvanic isolation from the main system for enhanced protection
-
Operating mode selector switch for easy configuration
-
Clear operating status indicators: SAFE, PROG, TEST, BIOS, ERR
-
Individual channel status LEDs for real-time monitoring
-
Programming capabilities through the M200 controller or integrated serial interface
