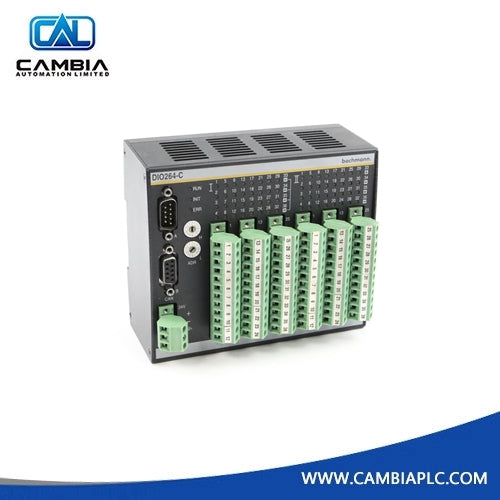

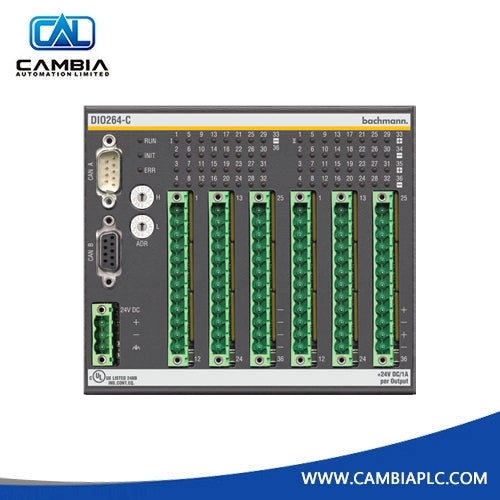

BachmannDIO264-C

Overview

The Bachmann DIO264-C is a compact and versatile CAN slave module designed for industrial automation applications. It offers a high number of digital input and output channels, making it suitable for controlling and monitoring various devices and processes.

Key Features

• Stand-alone, compact CAN slave module

• 16/32 channels can be freely configured as input or output

• Digital outputs each with 1 A continuous current

• Two internally connected CAN interfaces for loop-through of the cable

• Galvanic isolation between CAN interfaces and control electronics

• Baud rate and node ID can be set via rotary switch

• Supply voltage 18 to 34 VDC

• Operating range 0 to +60°C without additional cooling

• Full wiring without additional backplanes

• Snappable on EN 50022 backplanes

Data

Inputs

• Quantity: Max. 64

• Input Delay: < 3.5 ms

• Internal Resistance: 6 kΩ

• Status Display: Green LED

Outputs

• Quantity: Max. 32

• Supply Voltage: 18 to 34 VDC

• Isolated Output Blocks: 1-16, 17-32

• Nominal Output Current: 1 A

• Output Current (Sum/Block): Max. 12 A

• Switching Frequency: Max. 500 Hz

• Short-Circuit Proof: Yes

• Status Display: Green LED

CAN Interface

• Transfer Rate (Kbaud): 10 to 1000

• Connection: 2x 9-pin D-Sub

• Module ID: 1 to 254

• Galvanic Isolation: 500 V

• Terminating Resistance: 123 Ω, external

External Power Supply

• Voltage Range: 18 to 34 VDC

• Current Consumption (Without I/O): Normally 100 mA at 24 VDC

• Reverse Polarity Protection: Yes

CAN Protocols

• CAL/CANopen: DS 301 Communication Profile, DS 401 Device Profile

• Status LEDs: RUN (guarding), INIT, ERROR

Approvals / Certificates

• General: CE, cULus, CCC

• Marine: DNV GL, LR, ABS, BV, NK, KR, RINA

Ambient Conditions

• Operating Temperature: -30 to +60°C

• Relative Humidity (Operation): 5 to 95% without condensation

• Storage Temperature: -40 to +85°C

• Relative Humidity (Storage): 5 to 95% with condensation

• Pollution Degree: 2 (without condensation; according to IEC 60664-1)
