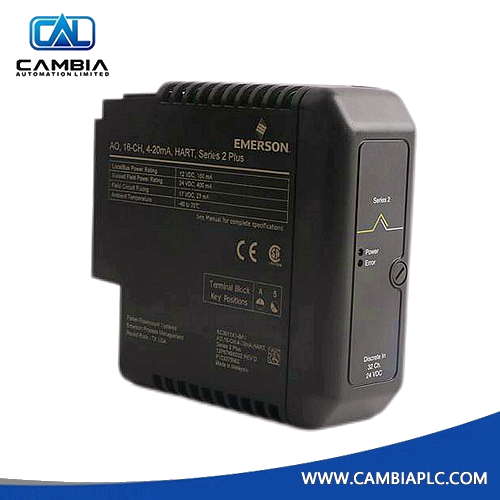

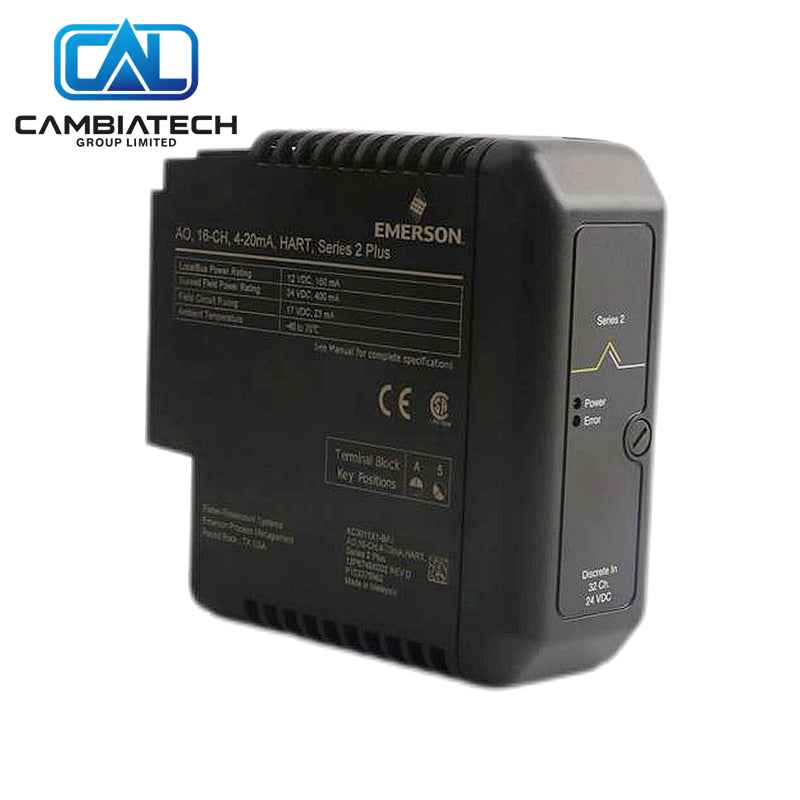

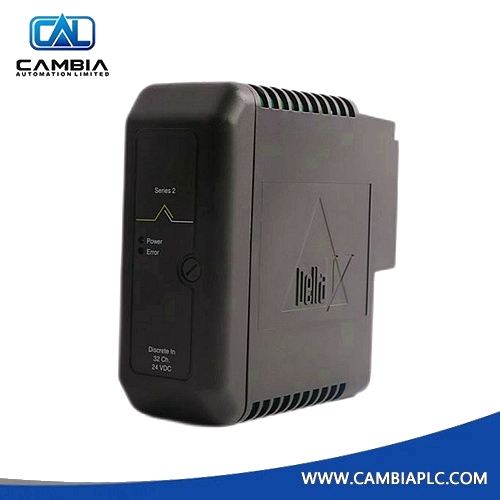

AO 16ch HART Plus Card KC3011X1-BK1 Emerson DeltaV S-Series
Manufacturer: Emerson
Product No.: KC3011X1-BK1
Product Type: Analog Output Module
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Emerson KC3011X1-BK1 is a 16-channel Analog Output HART Plus card for DeltaV S-series systems. It delivers 4–20 mA signals with HART communication for high-density process control.
Key Specs
- Channels: 16 AO
- Local Bus Power: 12 VDC at 160 mA
- Bussed Field Power: 24 VDC at 400 mA
- Field Circuit: 17 VDC at 23 mA class
- Terminal Block Key: A5
- Operating temperature: −40 °C to +70 °C
- System: DeltaV S-series
Why Choose This
- High-density 16-channel analog output
- Native HART support
- Hazardous-area certified
- Efficient for large AO counts
Common Questions
- Channels? 16 AO HART.
- Key? A5.
- System? DeltaV S-series.
Mounting Steps
- De-energize field power.
- Install the terminal block with A5 key.
- Insert the card into the carrier.
- Wire the 4–20 mA field loads.
- Configure channels and HART in DeltaV.
Buying Advice
- Select for multi-channel HART analog output needs.
- Confirm power budget and key position.
- Useful spare for S-series AO racks.
