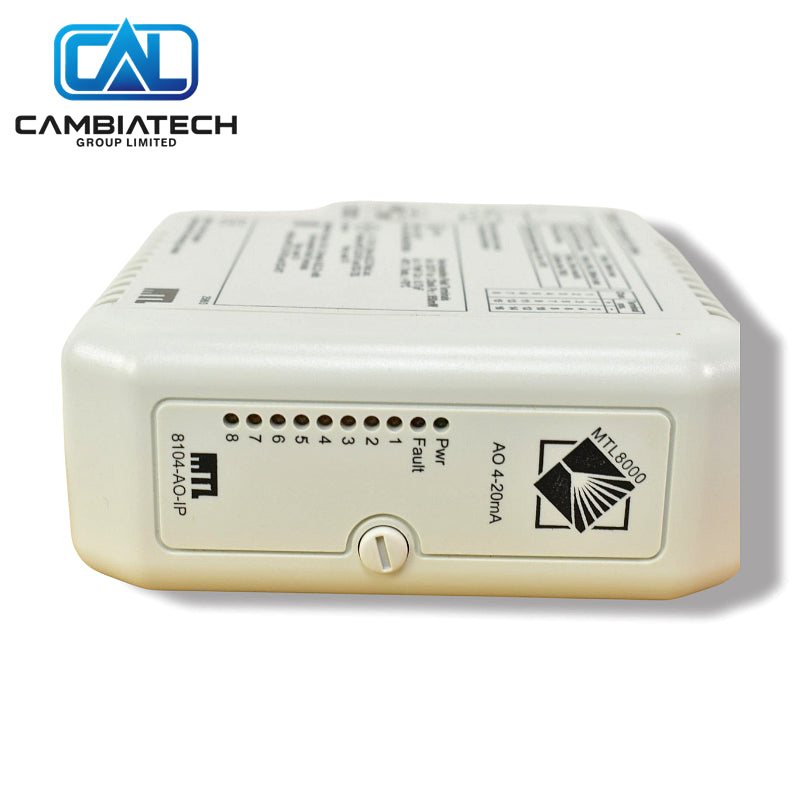

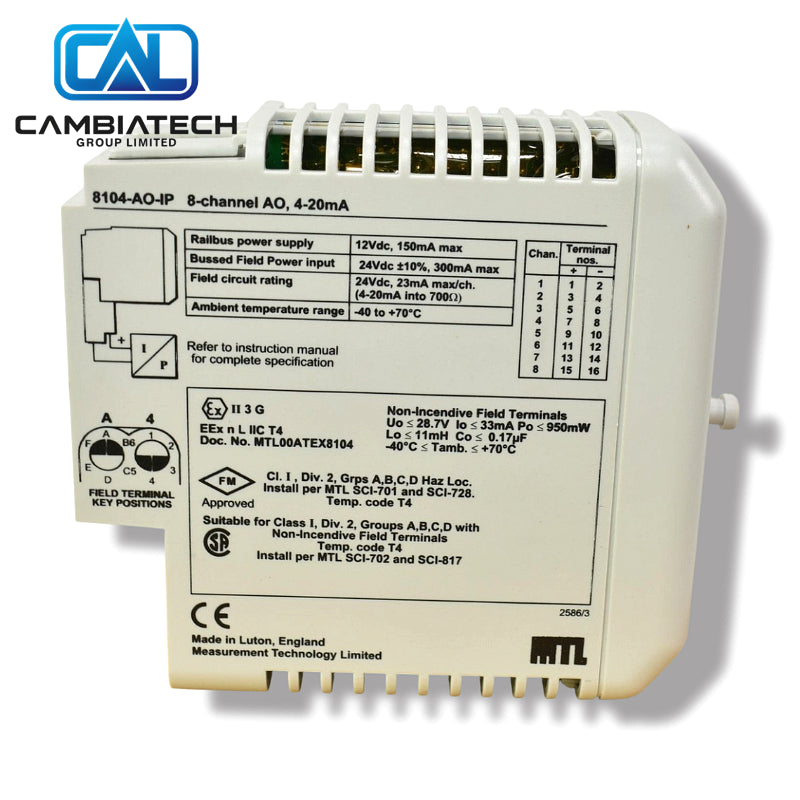

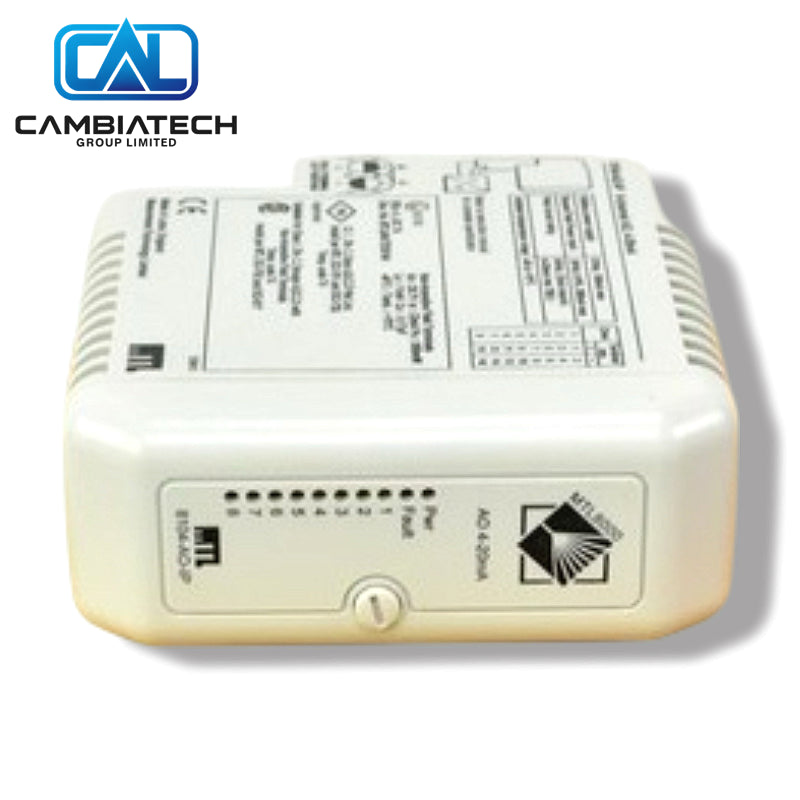

Analog Output 8ch 4-20mA 8104-AO-IP-03 MTL PAC8000
In stock, ready to ship
Manufacturer: Emerson
Product No.: 8104-AO-IP-03
Product Type: Analog Output Module
Product Origin: USA
Payment: T/T
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
MTL 8104-AO-IP-03 is an 8-channel single-ended analog output module providing 4–20 mA signals for I/P converters, actuators and remote indicators. It requires bussed 24 V DC field power and includes open-circuit detection.
Key Specs
- Channels: 8 single-ended AO
- Signal range: 4–20 mA (1–23 mA full)
- Accuracy: ±0.25% of span class
- Resolution: 12-bit class
- Open-loop detection: Yes
- Field power: Bussed 24 V DC required
- System: MTL PAC8000
Why Choose This
- Dedicated 4–20 mA output for I/P devices
- Open-circuit detection per channel
- Non-incendive capability for hazardous areas
- Compact PAC8000 module design
Common Questions
- Channels? 8 AO 4–20 mA.
- Use? I/P converters and indicators.
- System? PAC8000.
Mounting Steps
- Install the module on the PAC8000 carrier.
- Connect bussed 24 V DC field power.
- Wire the 4–20 mA loads (I/P converters, etc.).
- Configure output ranges and diagnostics.
- Verify loop current and open-circuit status.
Buying Advice
- Select for multi-channel 4–20 mA analog output needs.
- Confirm field power capacity on the carrier.
- Useful spare for PAC8000 analog output applications.
