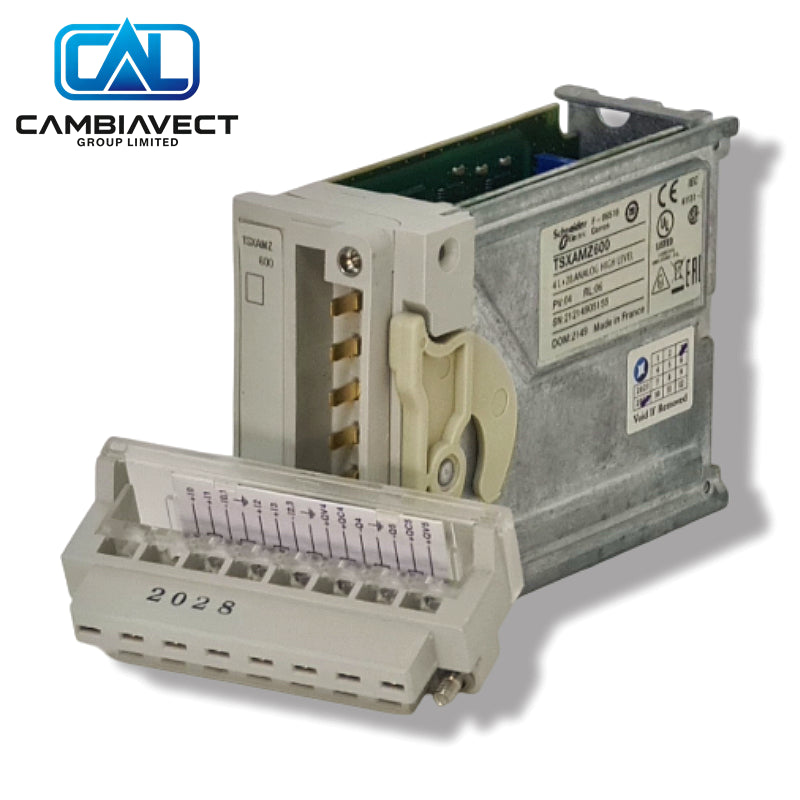

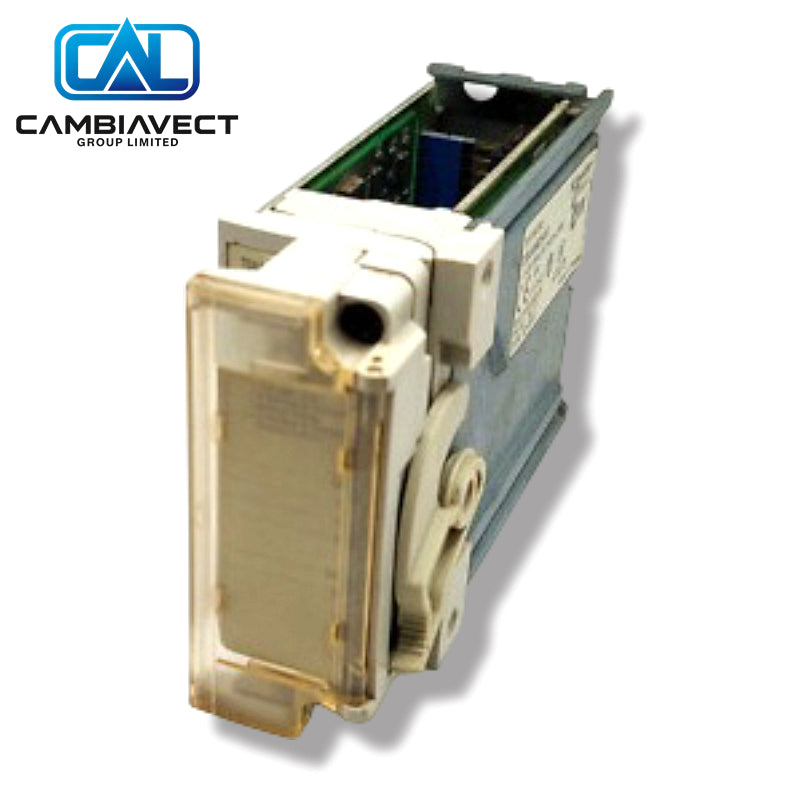

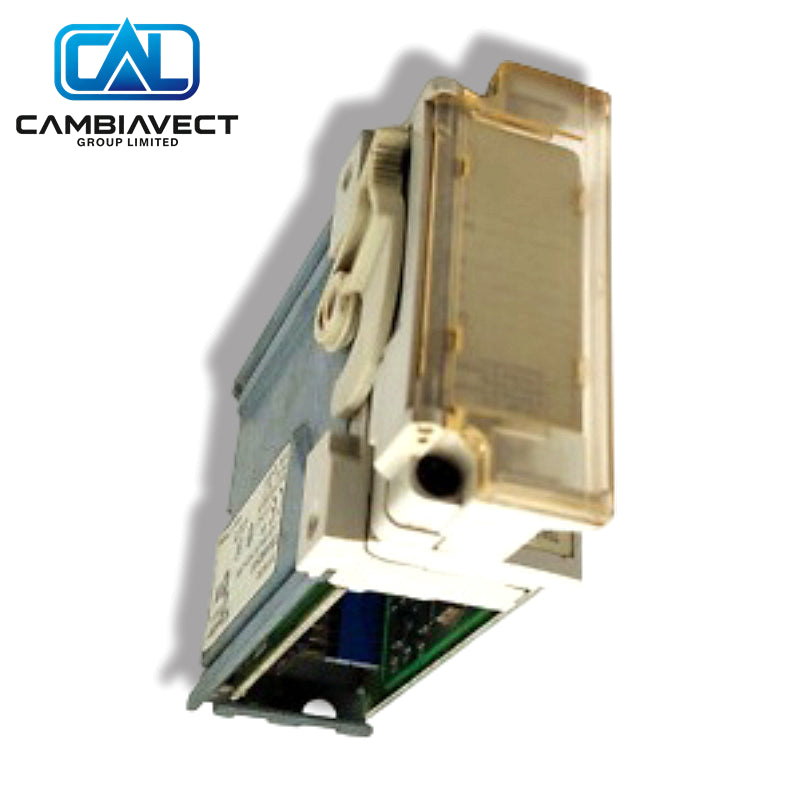

Analog Input Output Module TSXAMZ600 Schneider Micro

Product Overview

The Schneider Electric TSXAMZ600 is a mixed analog I/O expansion module for the Modicon TSX Micro PLC system. Featuring 4 analog inputs and 2 analog outputs, it provides high-accuracy signal acquisition and variable control for compact industrial processes.

Key Specs

• Series: Modicon TSX Micro
• Analog Inputs: 4 channels (0-20mA, 4-20mA, +/-10V, 0-10V)
• Analog Outputs: 2 channels (0-20mA, 4-20mA, +/-10V, 0-10V)
• Conversion Resolution: 11 bits (or 11 bits + sign for +/-10V)
• Acquisition Period: 16 ms
• Isolation Voltage: 1000 VAC between channels and ground
• Current Consumption: 180 mA at 5 VDC

Why Choose This

• Combination Architecture: Combines input data acquisition and analog control outputs into a single slot, saving panel space.
• Multi-Range Flexibility: Software configurable for both current (0/4-20mA) and voltage (+/-10V, 0-10V) signal ranges.
• Built-In Circuit Protection: Features short-circuit protection on voltage and current output channels.

Common Questions

• Q: Does this module support high-resolution 16-bit process measurements? A: No, the TSXAMZ600 uses an 11-bit analog-to-digital converter suitable for general industrial applications.
• Q: Is external power required for the analog output loops? A: Current outputs require appropriate external loop power depending on field sensor wiring configuration.

Mounting Steps

1. Shut down power to the TSX Micro base rack before module installation.
2. Insert the TSXAMZ600 module into an available half-format or full-format slot on the base rack.
3. Press firmly until the module side clips latch onto the chassis.
4. Connect the multi-pin terminal block cable and turn on power to configure channel parameters.

Buying Advice

• Check if your field instrumentation requires 16-bit resolution or if 11-bit conversion is adequate.
• Confirm total current consumption on your TSX Micro backplane power supply when adding analog expansion modules.
