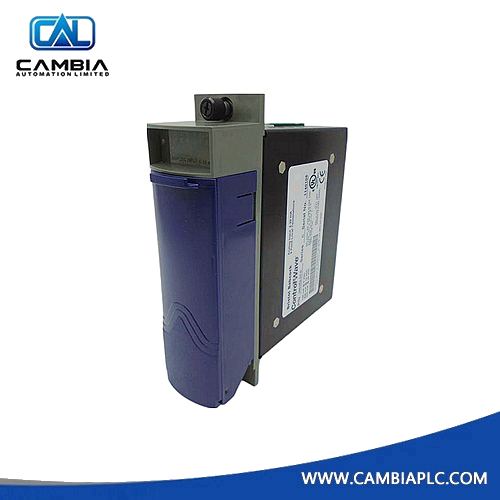

Analog Input Module 16ch 396352-01-4 Emerson ControlWave
Manufacturer: Emerson
Product No.: 396352-01-4
Product Type: Analog Input Module
Product Origin: USA
Payment: T/T
Weight: 1700g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Emerson 396352-01-4 is a 16-channel Analog Input module for ControlWave systems. It accepts 4–20 mA signals with local termination and is designed for process monitoring in RTU and PAC applications.
Key Specs
- Channels: 16 analog inputs
- Signal: 4–20 mA class
- Termination: Local
- Supply options: 5 / 12 / 24 V DC class
- Current consumption: Approx. 140–850 mA class depending on supply
- System: Emerson ControlWave Micro / PAC
Why Choose This
- High-density 16-channel analog input
- Local termination simplifies wiring
- Compatible with ControlWave platforms
- Suitable for multi-loop process measurement
Common Questions
- Channels? 16 AI.
- Signal? 4–20 mA class.
- System? ControlWave.
Mounting Steps
- Install the module in the ControlWave chassis.
- Connect the appropriate DC supply.
- Wire the 4–20 mA field transmitters to the local terminals.
- Configure scaling and channel parameters.
- Verify input readings and diagnostics.
Buying Advice
- Confirm channel count and termination style match the existing module.
- Useful spare for ControlWave analog input expansion.
- Check power supply voltage compatibility.
