Allen-Bradley PLC-5 1771-OBD Digital Output Module
In stock, ready to ship
Manufacturer: Allen-Bradley
Product No.: 1771-OBD
Product Type: Digital Output
Product Origin: USA
Payment: T/T
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.

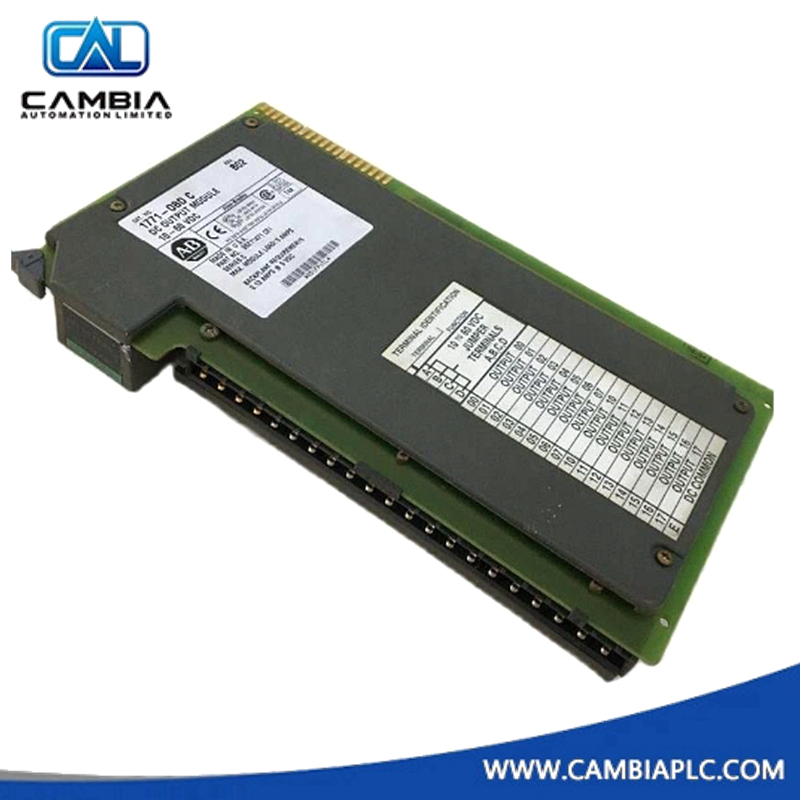

Allen-Bradley 1771-OBD
16-Point DC Digital Output Module for PLC-5® Systems
Product Description
The 1771-OBD is a 16-point DC digital output module designed for use in PLC-5® systems. It provides non-isolated sourcing outputs for controlling field devices such as solenoids, relays, and indicator lamps. Operating within a voltage range of 10–60 VDC, the module is suitable for medium-voltage DC control applications. Each output is capable of handling both resistive and pilot-duty loads.
Technical Specifications
| Attribute | Specification |
|---|---|
| Catalog Number | 1771-OBD |
| Product Type | DC Digital Output Module |
| Platform Compatibility | PLC-5® Series |
| Number of Outputs | 16 sourcing outputs |
| Output Voltage Range | 10–60 VDC |
| Output Current (Resistive) | 2 A per output |
| Output Current (Pilot Duty) | 0.2 A per output |
| Total Module Current | 8 A max |
| Backplane Current | 400 mA @ 5 VDC |
| Output Type | Non-isolated sourcing |
| Fuse Protection | Replaceable fuses per output |
| Wiring Arm | 1771-WA |
| Mounting Type | 1771 I/O chassis (rack-mounted) |
| Certifications | UL, CE, Class I Div 2 (when installed per guidelines) |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity | 5% to 95% non-condensing |
Installation Notes
- Install only in 1771-A1B through 1771-A4B chassis; not compatible with 1771-A4 chassis.
- Observe correct polarity when wiring DC loads; reverse polarity may damage outputs.
- Each output is protected by a fuse; refer to installation manual for fuse ratings and replacement procedures.
- Module is not hot-swappable; power down system before installation or removal.
