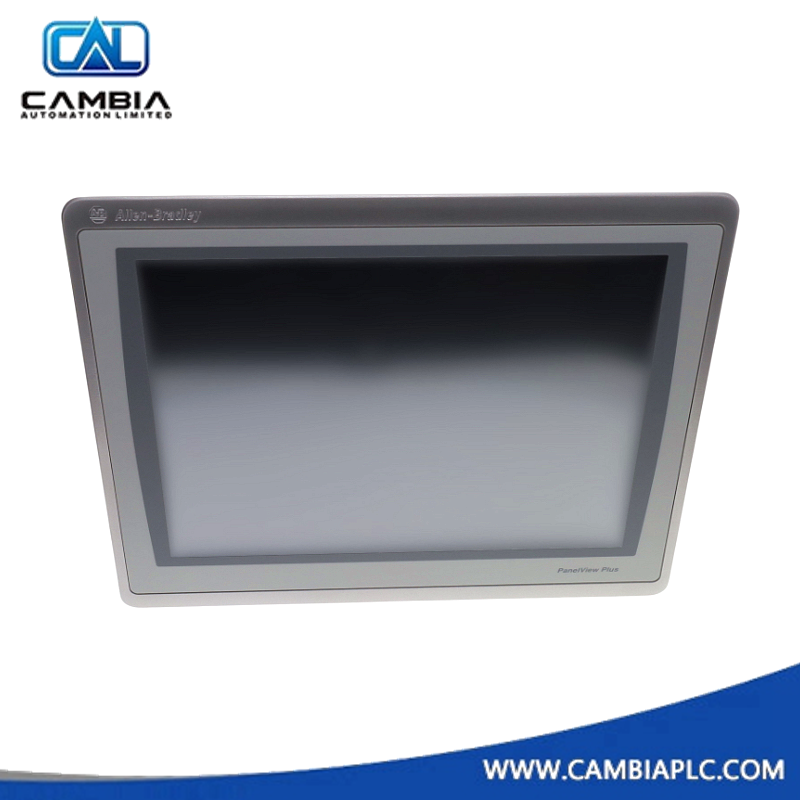

Allen-Bradley 2711P-T15C22D9P HMI PanelView Plus Graphic Terminal

Overview

The Rockwell Automation 2711P-T15C22D9P is a PanelView Plus 7 Performance graphic terminal designed for advanced industrial HMI applications. It features a 15-inch color touchscreen, dual Ethernet ports with Device Level Ring (DLR) support, and operates on 24 VDC power. Optimized for seamless integration with ControlLogix and CompactLogix controllers, this model delivers enhanced performance, connectivity, and visualization capabilities.

Technical Specifications

• Manufacturer: Rockwell Automation
• Catalog Number: 2711P-T15C22D9P
• Product Line: PanelView Plus 7 Performance
• Display Size: 15 inches
• Display Type: XGA TFT color LCD
• Resolution: 1024 × 768 pixels (XGA)
• Input Method: Analog resistive touchscreen
• Processor: ARM Cortex-A8, 1 GHz
• Memory: 512 MB RAM, 512 MB nonvolatile storage
• User Memory: ~80 MB available for applications
• Operating System: Windows Embedded Compact 7
• Software Compatibility: FactoryTalk View ME v8.0 or later
• Communication Ports:
  • 2 × Ethernet (RJ45, 10/100 Mbps, DLR support)
  • 2 × USB host
  • 1 × USB device
  • 1 × SD card slot
• Power Supply: 24 VDC nominal (18–30 VDC range)
• Power Consumption: ~25 W max
• Backlight: White LED, non-replaceable, 50,000 hr life expectancy
• Certifications: UL, cUL, CE, RoHS, IP65/NEMA 4X (front panel)

Dimensions and Weight

• Width: 390 mm
• Height: 290 mm
• Depth: 60 mm
• Net Weight: 3.5 kg
• Mounting Type: Panel-mounted
• Cutout Dimensions: Refer to Rockwell installation guide
• Cooling Method: Passive convection

Product Questions

• Q: What controllers are compatible with this model?
  A: It is optimized for ControlLogix and CompactLogix controllers over EtherNet/IP.
• Q: Does it support Device Level Ring (DLR)?
  A: Yes. The dual Ethernet ports support DLR, linear, and star topologies.
• Q: Can the backlight be replaced?
  A: No. The LED backlight is non-replaceable but rated for 50,000 hours.
