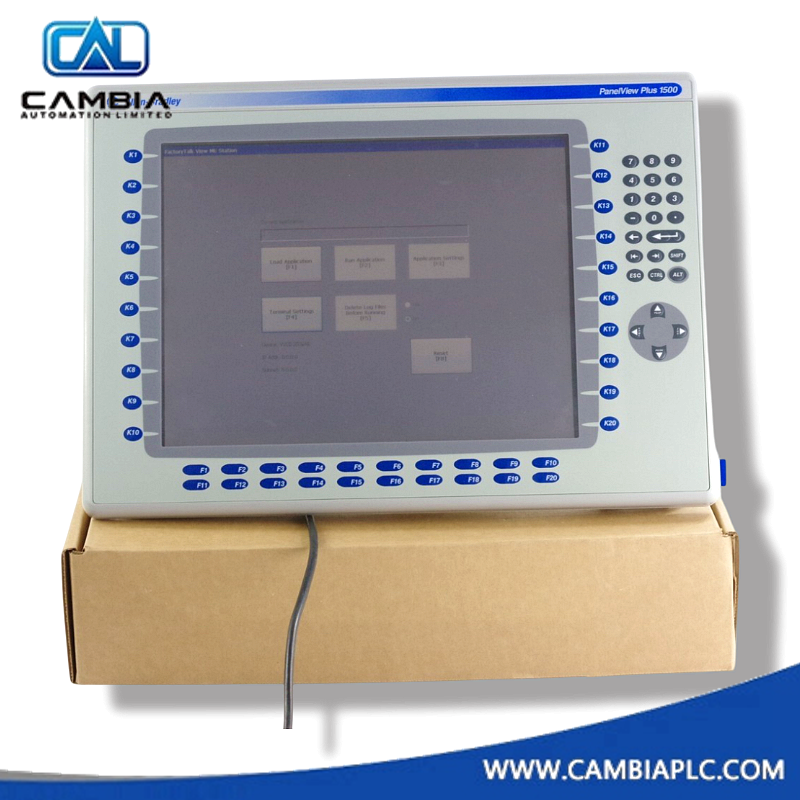

Allen-Bradley 2711P-T10C15A1 Panelview Plus 1000 Touch Screen Panel

Overview

The Rockwell Automation 2711P-T10C15A1 is a PanelView Plus 1000 Human-Machine Interface (HMI) terminal designed for industrial control applications. It features a 10.4-inch color touchscreen, supports ControlNet communication, and operates on AC power. The unit runs on Windows CE and is configured using FactoryTalk View Machine Edition (ME) software. It is suitable for integration with ControlLogix and other Rockwell Automation controllers in environments requiring robust visualization and interaction.

Technical Specifications

• Manufacturer: Rockwell Automation
• Catalog Number: 2711P-T10C15A1
• Product Line: PanelView Plus 1000
• Display Size: 10.4 inches
• Display Type: Color TFT LCD
• Resolution: 640 × 480 pixels (VGA)
• Input Method: Analog resistive touchscreen
• Operating System: Windows CE
• Software Compatibility: FactoryTalk View ME
• Processor: 300 MHz CPU
• Memory: 64 MB RAM, 64 MB flash
• User Memory: 25 MB available for applications
• Communication Ports: ControlNet, RS-232, USB host/device
• Input Voltage Range: 85–264 VAC
• Frequency: 47–63 Hz
• Power Consumption: ~50 VA max
• Backlight: Replaceable CCFL, ~50,000 hr life expectancy
• Certifications: UL, cUL, CE, RoHS

Environmental Ratings

• Operating Temperature: 0 to 55 °C
• Storage Temperature: –25 to 70 °C
• Humidity: 5–95% non-condensing
• Shock/Vibration: IEC 60068 compliant

Dimensions and Weight

• Width: 326 mm
• Height: 266 mm
• Depth: 60 mm
• Net Weight: 2.5 kg
• Mounting Type: Panel-mounted
• Cutout Dimensions: Refer to installation manual
• Cooling Method: Passive (natural convection)

Key Features

• 10.4-inch color TFT LCD with resistive touchscreen
• Supports ControlNet, RS-232, and USB communication
• Configurable with FactoryTalk View ME
• Replaceable CCFL backlight with long service life
• Industrial-grade durability with wide environmental tolerance
• Seamless integration with ControlLogix and other Rockwell controllers

Product Questions

• Q: What software is required to configure the 2711P-T10C15A1?
  A: FactoryTalk View ME is used for application development and deployment.
• Q: What communication protocols are supported?
  A: ControlNet is the primary protocol, with additional support for RS-232 and USB.
• Q: Is the touchscreen suitable for industrial environments?
  A: Yes. The analog resistive touchscreen is rated for over 1 million actuations and supports gloved operation.
• Q: Can the backlight be replaced?
  A: Yes. The CCFL backlight is field-replaceable and rated for 50,000 hours.
