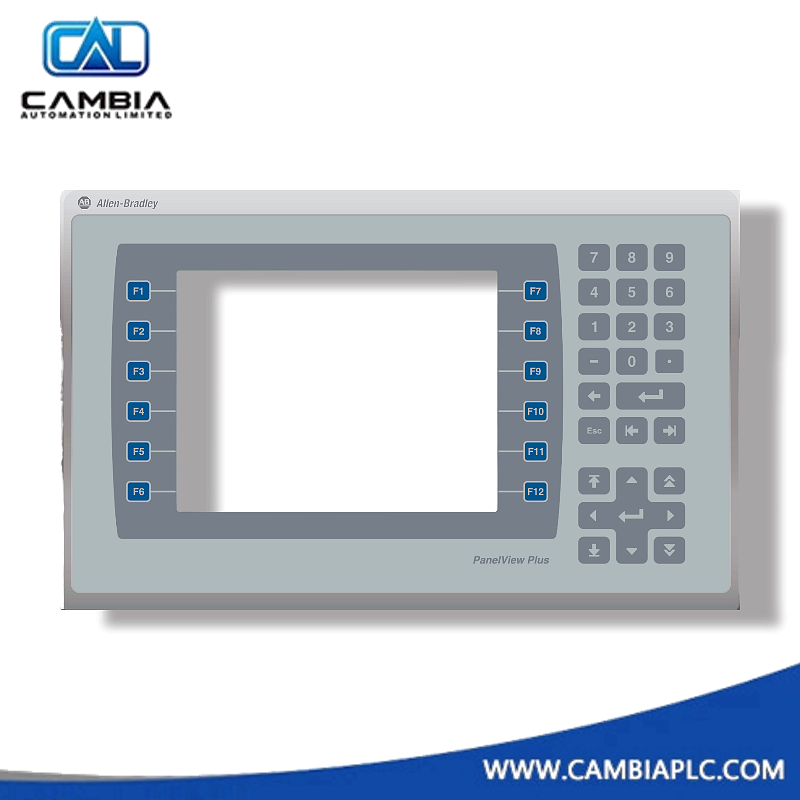

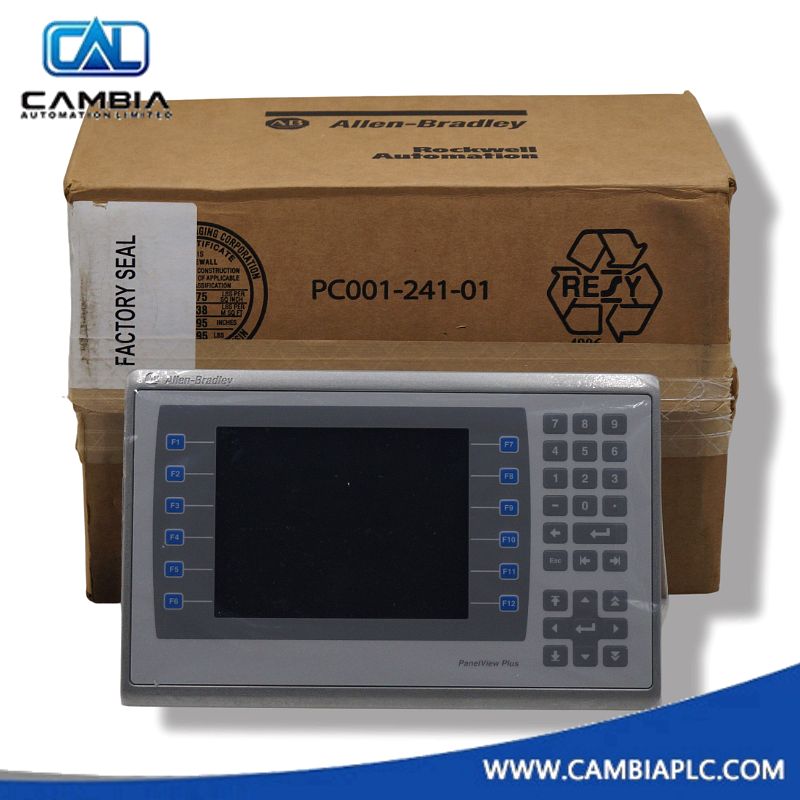

Allen-Bradley 2711P-B7C22D9P PanelView Plus 7 Performance Terminal
In stock, ready to ship
Manufacturer: Allen-Bradley
Product No.: 2711P-B7C22D9P
Product Type: Panel
Product Origin: USA
Payment: T/T
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Overview
The Rockwell Automation 2711P-B7C22D9P is a PanelView Plus 7 Performance graphic terminal designed for advanced industrial HMI applications. It features a 7-inch color VGA display with dual input capability—touchscreen and keypad—providing flexible operator interaction. This model supports EtherNet/IP communication, including Device Level Ring (DLR) topology, and is optimized for high-performance integration with ControlLogix and CompactLogix 5370 controllers.
Technical Specifications
- Manufacturer: Rockwell Automation
- Catalog Number: 2711P-B7C22D9P
- Product Line: PanelView Plus 7 Performance
- Display Size: 7 inches
- Display Type: TFT color LCD
- Resolution: 640 × 480 pixels (VGA)
- Input Method: Analog resistive touchscreen + stainless-steel keypad
- Processor: ARM Cortex-A8, 1 GHz
- Memory: 512 MB RAM, 512 MB nonvolatile storage
- User Memory: ~80 MB available for applications
- Operating System: Windows Embedded Compact 7
- Software Compatibility: FactoryTalk View ME v8.0 or later
-
Communication Ports:
- 2 × Ethernet (RJ45, 10/100 Mbps, DLR support)
- 1 × USB host
- 1 × USB device
- 1 × SD card slot
- Power Supply: 24 VDC nominal (18–30 VDC range)
- Power Consumption: 15 W max
- Backlight: White LED, non-replaceable, 50,000 hr life expectancy
- Certifications: UL, cUL, CE, RoHS, IP65/NEMA 4X (front panel)
Dimensions and Weight
- Width: 206 mm
- Height: 152 mm
- Depth: 56 mm
- Net Weight: 1.2 kg
- Mounting Type: Panel-mounted
- Cutout Dimensions: Refer to Rockwell installation guide
- Cooling Method: Passive convection
Key Features
- 7-inch VGA touchscreen and keypad for flexible operator interaction
- Optimized for ControlLogix and CompactLogix 5370 controllers
- Dual Ethernet ports with Device Level Ring (DLR) support
- High-performance ARM Cortex-A8 processor
- Wide software compatibility with FactoryTalk View ME v8.0 or later
- Industrial-grade stainless-steel keypad rated for 1 million actuations
- Durable IP65/NEMA 4X front panel protection
Product Questions
-
Q: What controllers are compatible with the 2711P-B7C22D9P?
A: It is optimized for ControlLogix and CompactLogix 5370 controllers over EtherNet/IP. -
Q: Does it support Device Level Ring (DLR)?
A: Yes. The dual Ethernet ports support DLR, linear, and star topologies. -
Q: Is the keypad industrial-grade?
A: Yes. It features stainless-steel membrane keys rated for 1 million actuations. -
Q: Can the backlight be replaced?
A: No. The LED backlight is non-replaceable but rated for 50,000 hours.
