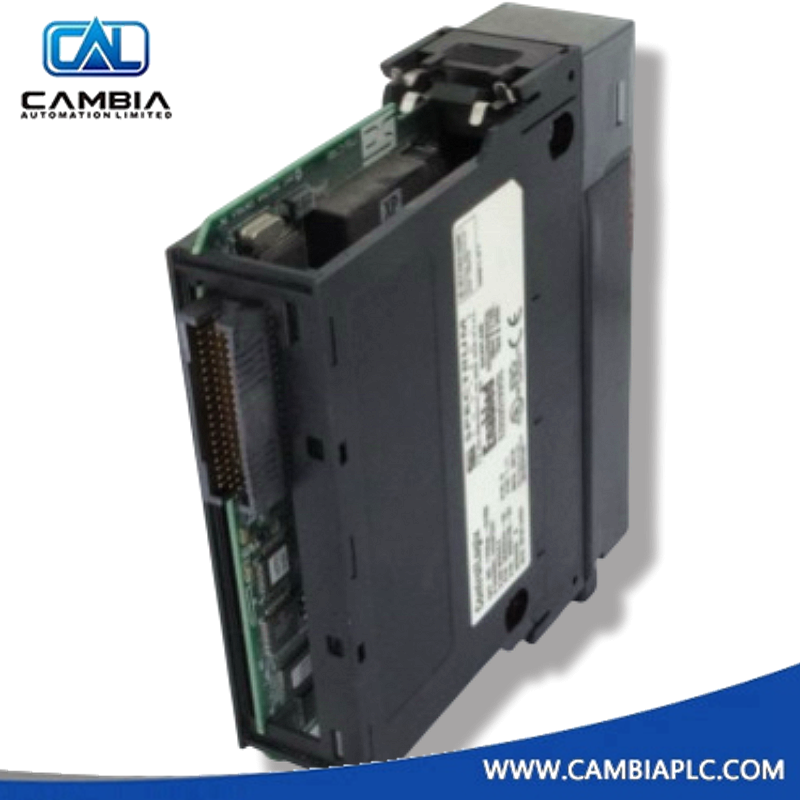

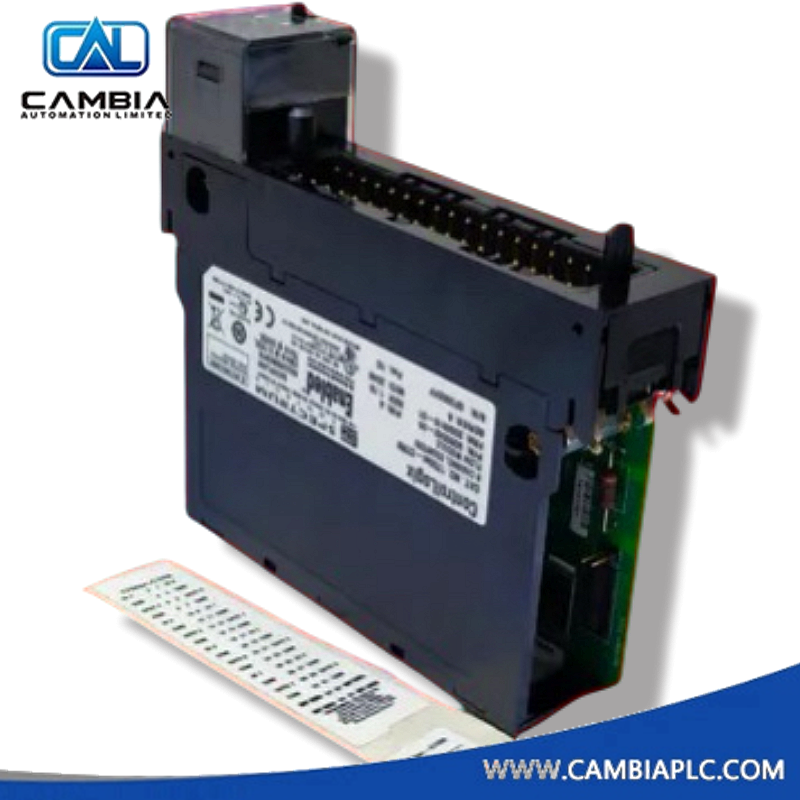

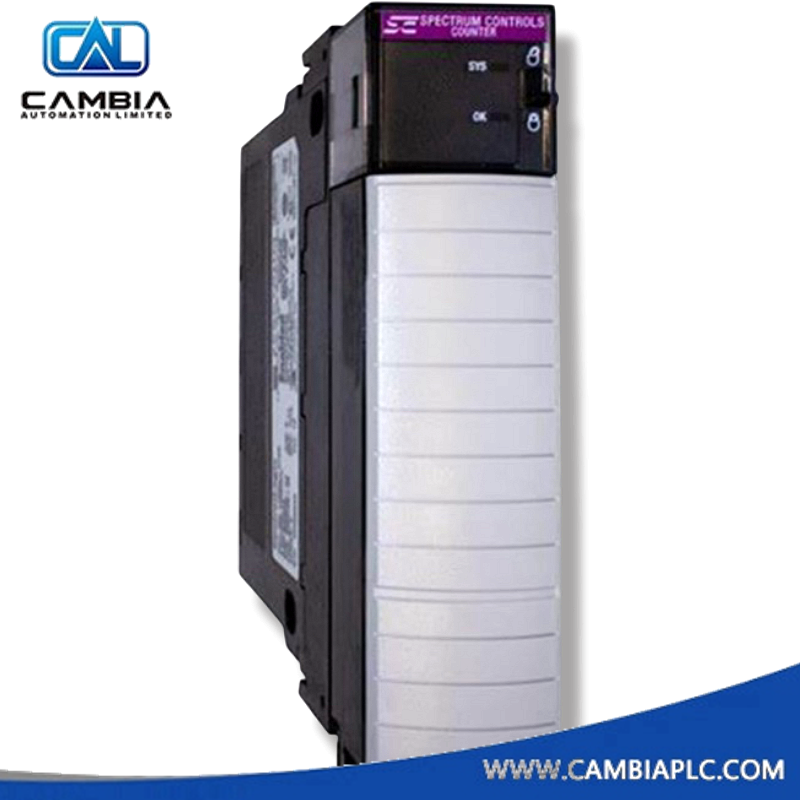

Allen-Bradley 1756SC-CTR8 8-Channel Counter / Flowmeter Input Module
In stock, ready to ship
Manufacturer: Allen-Bradley
Product No.: 1756SC-CTR8
Product Type: Flowmeter Input
Product Origin: USA
Payment: T/T
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Allen-Bradley 1756SC-CTR8
8-Channel Counter / Flowmeter Input Module for ControlLogix® Systems
Product Description
The 1756SC-CTR8 is an 8-channel counter/flowmeter input module designed for use in ControlLogix® systems. Manufactured by Spectrum Controls in collaboration with Rockwell Automation, this module provides high-speed counting and flow measurement capabilities for industrial automation applications. It supports incremental, up/down, and quadrature counting modes, and is ideal for turbine flowmeter integration, encoder feedback, and general-purpose event counting. Each channel operates independently and supports simultaneous rate and count measurement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Spectrum Controls / Rockwell Automation |
| Catalog Number | 1756SC-CTR8 |
| Product Type | Counter / Flowmeter Input Module |
| Platform Compatibility | ControlLogix® |
| Number of Channels | 8 single-ended or 4 differential (A/B/Z) |
| Count Modes Supported | Incremental, Up/Down, Quadrature |
| Input Frequency Range | 0 to 65 kHz |
| Minimum Pulse Width | 5.4 µs |
| Count Value Range | 0 to 16,777,215 (24-bit counters) |
| Input Voltage Ranges | 5 VDC (3.5–50 VDC), 12/24 VDC (9–50 VDC), AC (50 mVpp to 50 Vrms) |
| Input Resistance | ~24 kΩ (voltage dependent) |
| Data Format | IEEE 32-bit floating point |
| Update Time | <13 ms for all channels |
| Diagnostic Features | Counter enable lines, limit flags, rollover detection |
| Terminal Block | 1756-TBCH (36-position screw terminal block included) |
| Power Supply | Via ControlLogix backplane |
| Mounting Type | 1-slot ControlLogix chassis |
| Certifications | UL/cUL Listed, CE, ANSI ISA 12.12.01 (Class I Div 2) |
Dimensions and Weight
| Attribute | Specification |
|---|---|
| Module Width | Standard ControlLogix slot |
| Mounting Type | Chassis-mounted |
| Net Weight | 0.45 kg |
| Cooling Method | Passive (natural convection) |
Features
- High-speed counting and flow measurement for industrial automation
- Supports incremental, up/down, and quadrature counting modes
- Each channel operates independently with simultaneous rate and count measurement
- Compatible with turbine flowmeter integration and encoder feedback
- 36-position terminal block included for easy wiring
- Certifications: UL/cUL, CE, ANSI ISA 12.12.01 (Class I Div 2)
