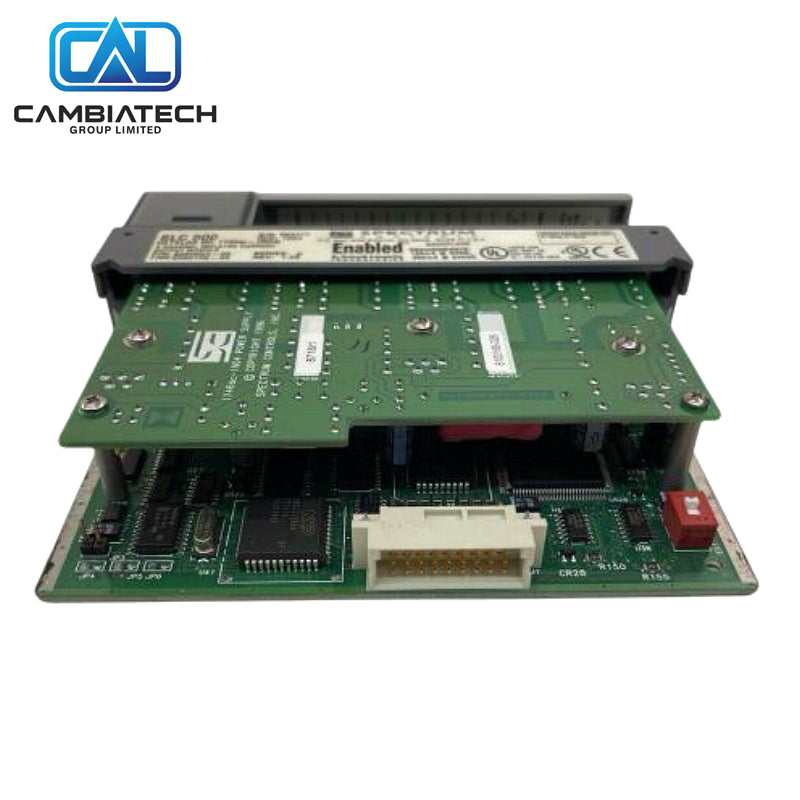

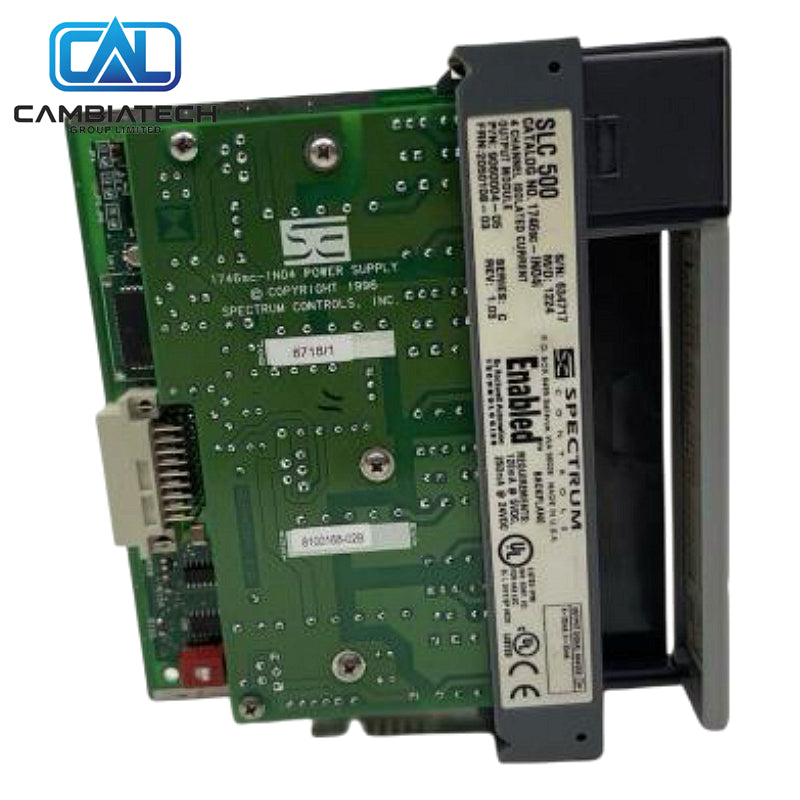

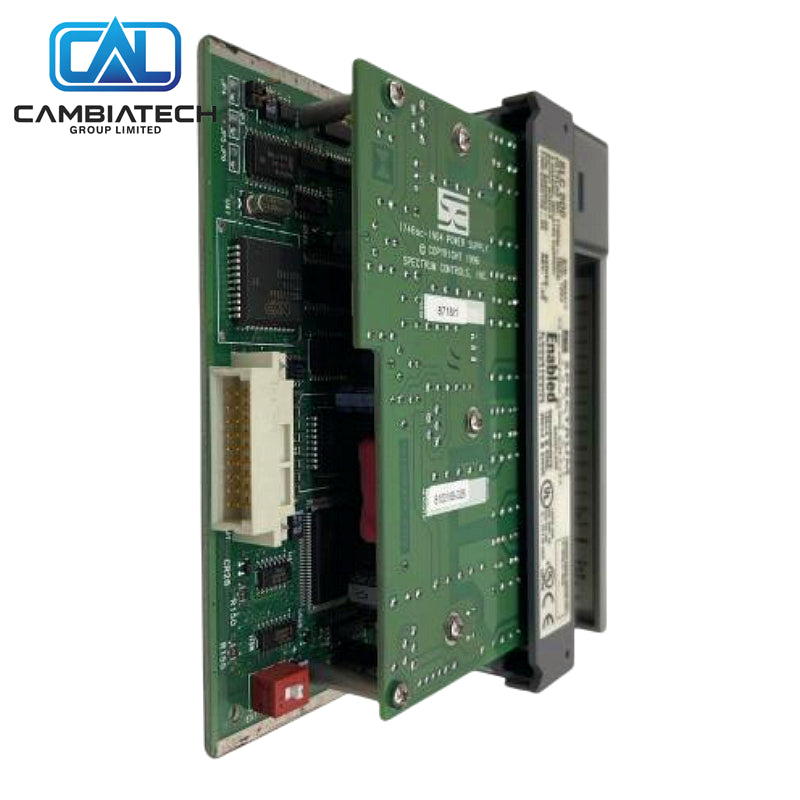

Allen-Bradley 1746SC-INO4VI SLC 4ch Isolated Analog Output V/I Module
In stock, ready to ship
Manufacturer: Allen-Bradley
Product No.: 1746SC-INO4VI
Product Type: Isolated Analog Output Module
Product Origin: USA
Payment: T/T
Weight: 1500g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
The Allen-Bradley 1746SC-INO4VI (Spectrum Controls) is a 4-channel isolated analog output module for the SLC 500 platform. Each channel can be independently configured for voltage or current output, providing high isolation and 16-bit resolution performance.
Key Specs
- Channels: 4 individually isolated
- Output types: Current (0–20 mA, 0–21 mA, 4–20 mA) or Voltage (±10 V, 0–10 V, 0–5 V, 1–5 V)
- Resolution: 16-bit
- Isolation: 750 VDC channel-to-channel and field-to-backplane
- Backplane current: 120 mA @ 5 VDC, 250 mA @ 24 VDC
- Module ID: 3519
- System: SLC 500 single-slot
Why Choose This
- Channel-to-channel isolation eliminates crosstalk
- Mixed voltage and current outputs on one module
- High resolution and onboard temperature compensation
- No external isolation barriers required
Common Questions
- Channels? 4 isolated.
- Signal types? Selectable voltage or current per channel.
- Isolation? 750 VDC channel-to-channel.
Mounting Steps
- Insert the module into an SLC 500 chassis slot.
- Enter module ID 3519 in the I/O configuration.
- Configure each channel range in the program or module setup.
- Wire field loads using shielded cable where required.
- Power up and verify output values and isolation.
Buying Advice
- Ideal when mixed voltage/current isolated outputs are needed in one slot.
- Confirm backplane power budget (especially 24 VDC).
- Use for applications requiring high accuracy and noise immunity.
