Allen-Bradley

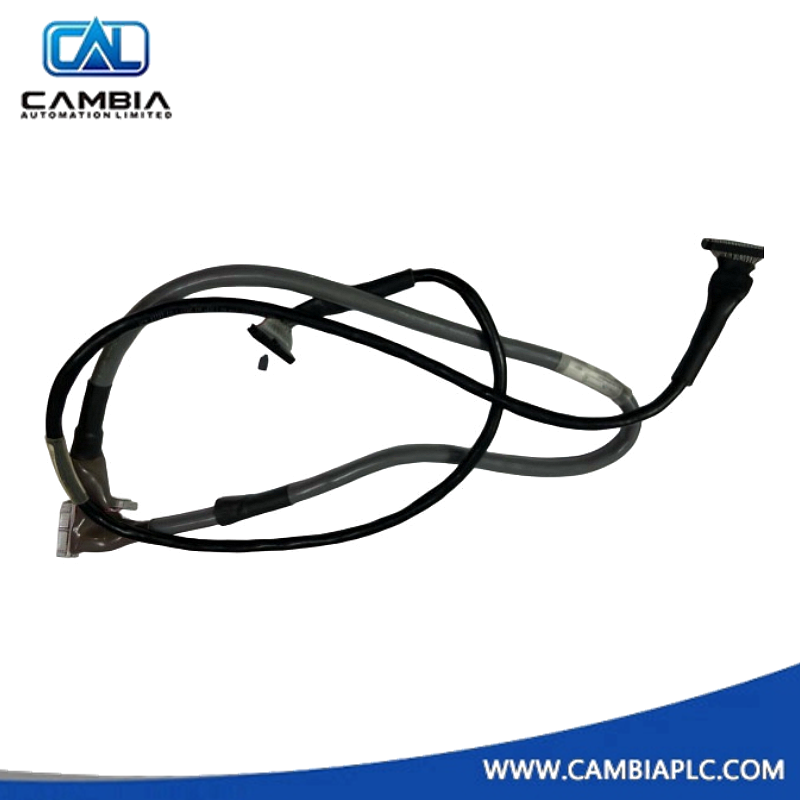

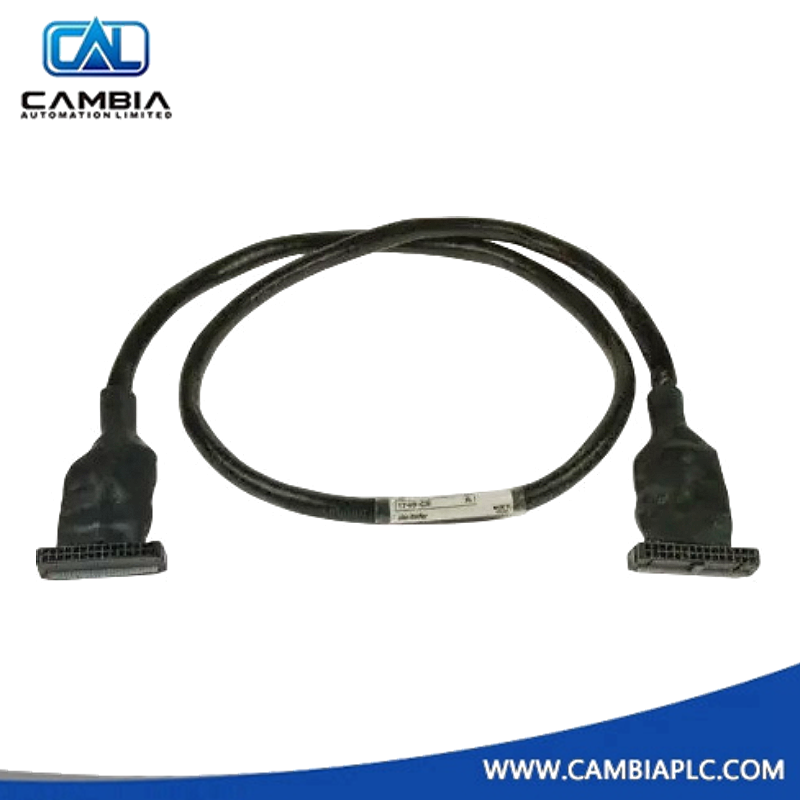

Allen Bradley 1746-C16 SLC 500 Programmable Controller Rack Interconnect Cable
In stock, ready to ship
Manufacturer: Allen-Bradley
Product No.: 1746-C16
Product Type: Cable
Product Origin: Japan
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Allen-Bradley 1746-C16
SLC 500 Chassis Interconnect Cable – 50-Inch
Product Overview
The 1746-C16 is a chassis interconnect cable designed for use with Allen-Bradley SLC 500 modular systems. It facilitates communication between multiple chassis by connecting their backplanes, allowing system expansion while preserving signal integrity. With a length of 50 inches (1.27 meters), it is the longest cable available for SLC 500 setups, ideal for flexible control cabinet layouts.
Technical Specifications
| Attribute | Specification |
|---|---|
| Model | 1746-C16 |
| Product Type | Chassis Interconnect Cable |
| System Compatibility | SLC 500 Modular Systems |
| Cable Length | 50 inches (1.27 meters) |
| Backplane Current (5 V) | 110 mA |
| Backplane Current (24 V) | 85 mA |
| Connector Type | Ribbon cable with keyed connectors |
| Mounting Orientation | Horizontal chassis stacking |
| Bend Radius Clearance | Minimum 101.6 mm (4 inches) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Shock Resistance | 30g operational, 50g non-operational |
| Vibration Resistance | 2g peak, 10–500 Hz |
| Humidity | 5–95% non-condensing |
