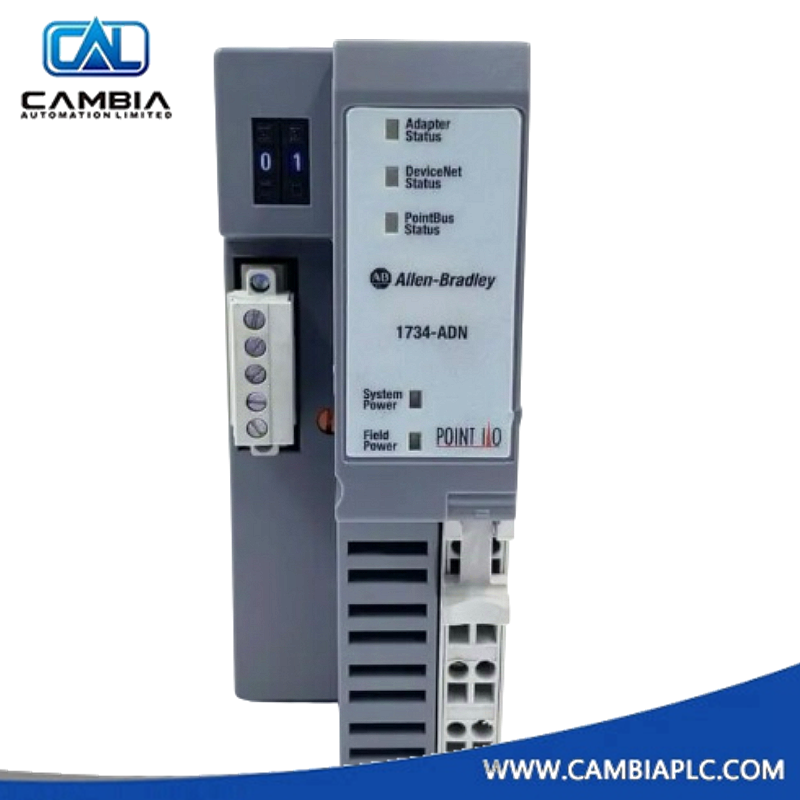

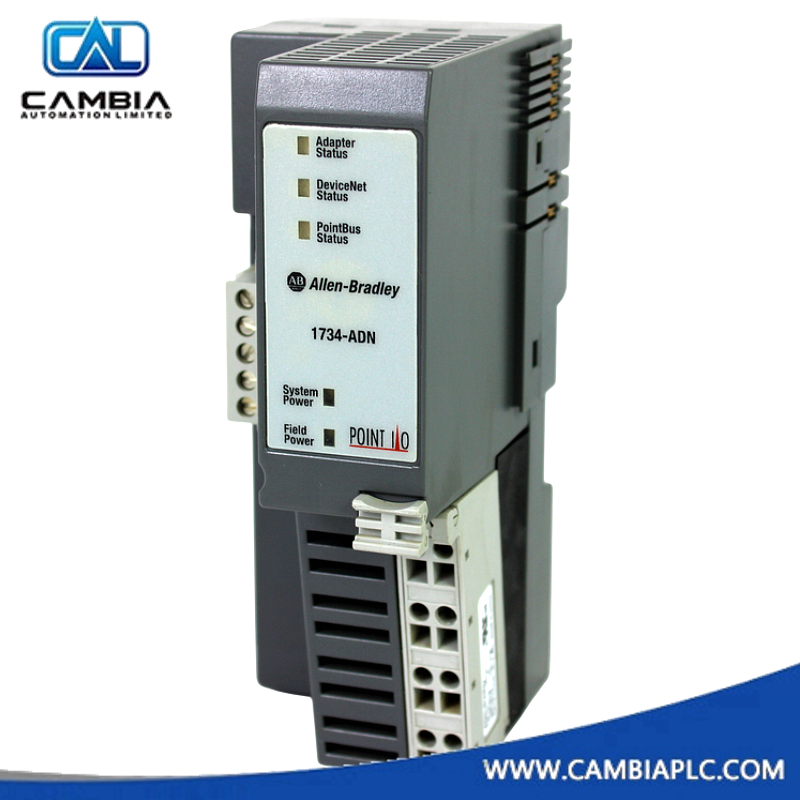

Allen-Bradley 1734-ADN POINT I/O 24V DC DeviceNet Adapter
In stock, ready to ship
Manufacturer: Allen-Bradley
Product No.: 1734-ADN
Product Type: Adapter Module
Product Origin: USA
Payment: T/T
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Overview
The 1734-ADN is a DeviceNet communication adapter from Allen-Bradley’s POINT I/O series, designed for connecting distributed I/O modules to a DeviceNet network. It bridges POINT I/O racks with a DeviceNet master, enabling modular expansion with high-speed communication and reliability. The 1734-ADN supports up to 63 modules and 504 I/O points, making it ideal for decentralized automation applications.
Technical Specifications
| Attribute | Specification |
|---|---|
| Product Type | DeviceNet Adapter Module |
| Series | POINT I/O |
| Communication Protocol | DeviceNet |
| Supported Baud Rates | 125K, 250K, 500K bits/sec |
| Input Voltage | 23–24 VDC |
| Field Side Power | 400 mA |
| Inrush Current | 6 A |
| Power Consumption | 8.1 W |
| POINTBus Current | 1000 mA @ 5 VDC ±5% |
| Power Dissipation | 2.8 W @ 28.8 VDC |
| Max I/O Modules Supported | 63 |
| Max I/O Points | 504 |
| DeviceNet Current | 30 mA |
| Node Address Range | 0–63 |
| Mounting Position | Left side of POINT I/O rack |
| Dimensions (L × W × H) | 12.2 × 5.49 × 13.34 cm |
| Weight | 0.3 kg |
| Certifications | CE, UL, RoHS |
Features
- Connects POINT I/O modules to DeviceNet for distributed control applications
- Supports up to 63 modules and 504 I/O points
- Delivers 1000 mA POINTBus current to power connected I/O
- DIN rail mountable compact design for space-efficient installations
- Works with RSNetWorx for DeviceNet configuration and diagnostics
