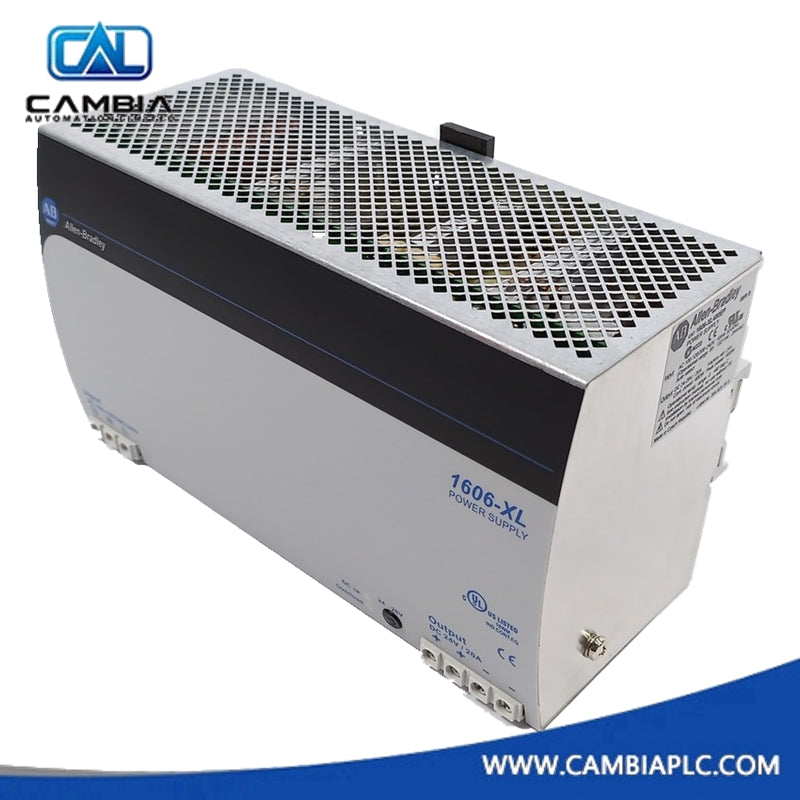

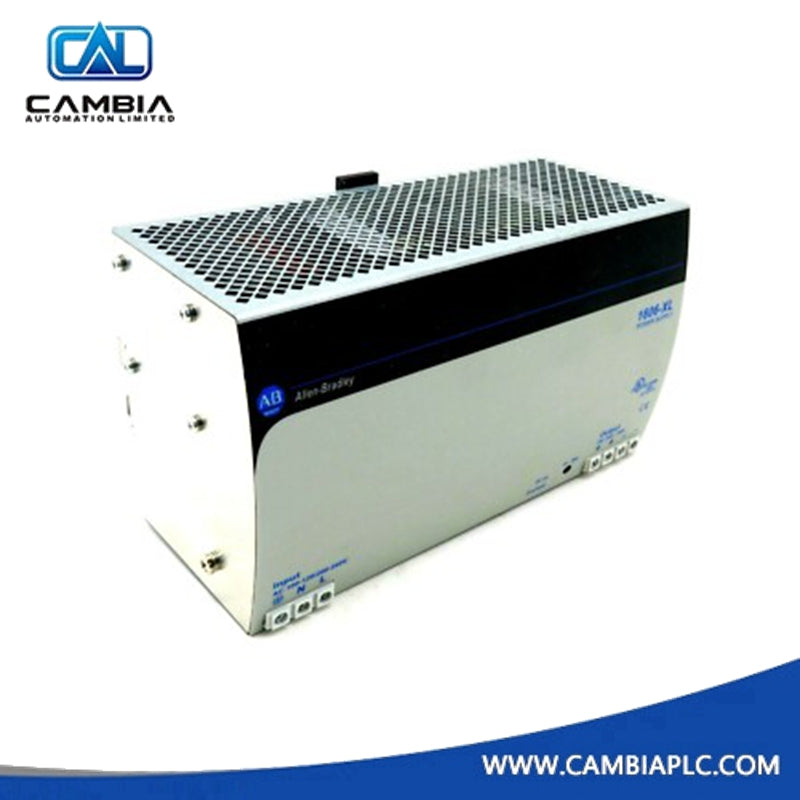

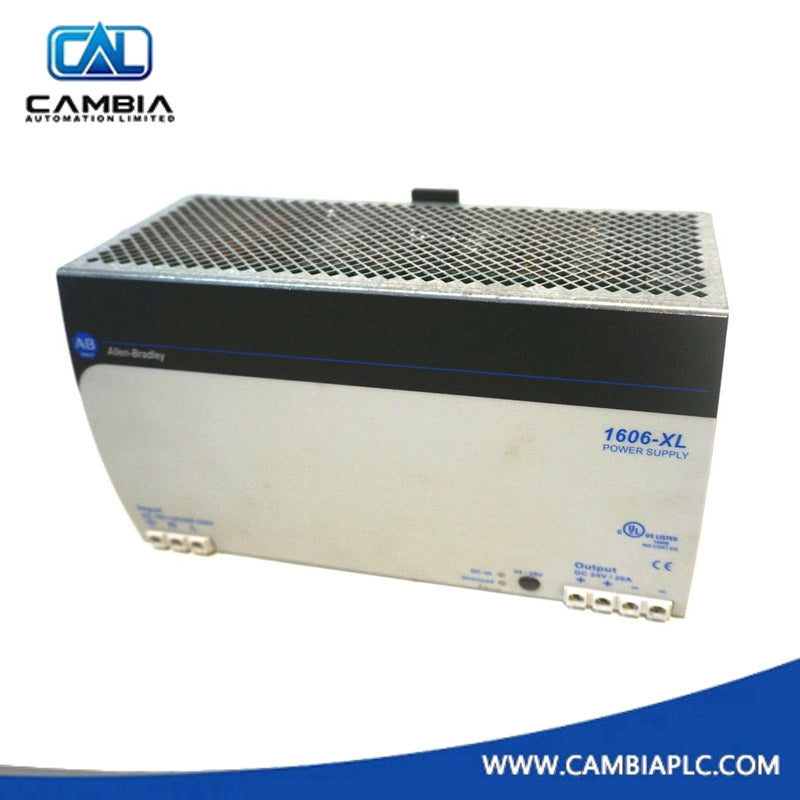

Allen-Bradley 1606-XL480EP Power Supply
In stock, ready to ship
Manufacturer: Allen-Bradley
Product No.: 1606-XL480EP
Product Type: Power Supply
Product Origin: USA
Payment: T/T
Weight: 760g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The Allen-Bradley 1606-XL480EP power supply offers a cost-effective solution without compromising on quality, reliability, or performance. Designed for high efficiency, it features electronic inrush current limitation, active power factor correction (PFC), and operates across a wide temperature range. The compact design is achieved through the use of synchronous rectification and other advanced techniques, making it ideal for a variety of industrial applications.
Key Features
-
High Efficiency: Achieves up to 94.0% efficiency at 230 V AC input, minimizing energy losses.
-
Wide Temperature Range: Operates in environments from –25°C to +70°C, with derating above 60°C.
-
Power Factor Correction (PFC): Ensures efficient energy use with active power factor correction (PFC).
-
Compact Design: Synchronous rectification and advanced design techniques allow for a compact size, optimizing space and installation.
-
Low Ripple Output: Provides smooth DC output with <50 mVpp ripple across a wide frequency range (20 Hz to 20 MHz).
Technical Specifications
| Parameter | Specification |
|---|---|
| Output Voltage (DC) | 24 V |
| Adjustment Range | 24 – 28 V |
| Output Current | 20 A at 24 V (ambient <60°C); 24 A at 24 V (ambient <45°C); 17.1 A at 28 V (ambient <60°C); 20.6 A at 28 V (ambient <45°C) |
| Output Power | 480 W (ambient <60°C); 576 W (ambient <45°C) |
| Output Ripple | <50 mVpp (20 Hz to 20 MHz) |
| AC Input Voltage | 100–240 V AC (-15% / +10%) |
| Mains Frequency | 50–60 Hz ±6% |
| AC Input Current | 4.36 A / 2.33 A at 120 V / 230 V AC |
| Power Factor | 0.99 / 0.95 at 120 V / 230 V AC |
| AC Inrush Current | Typ. 9 A / 7 A peak at 120 V / 230 V AC |
| Efficiency | 92.7% / 94.0% at 120 V / 230 V AC |
| Losses | 37.8 W / 30.6 W at 120 V / 230 V AC |
| Temperature Range | –25°C to +70°C operational |
| Derating | 12 W/°C from +60°C to +70°C |
| Hold-up Time | Typ. 26 ms at 120 V / 230 V AC |
| Dimensions (WxHxD) | 65 × 124 × 127 mm |
| Weight | 1000 g / 2.2 lb |
Product Highlights
-
Compact & Efficient: With an efficiency of up to 94%, the 1606-XL480EP ensures minimal energy loss while occupying less space, ideal for industrial environments with limited room.
-
Reliable & Durable: Built to operate in a wide temperature range from –25°C to +70°C, making it suitable for harsh operating conditions.
-
Active Power Factor Correction: Ensures high-quality energy usage with PFC that improves power system efficiency.
-
Stable Power Output: Offers low ripple and stable output, essential for sensitive equipment, ensuring reliability across applications.
