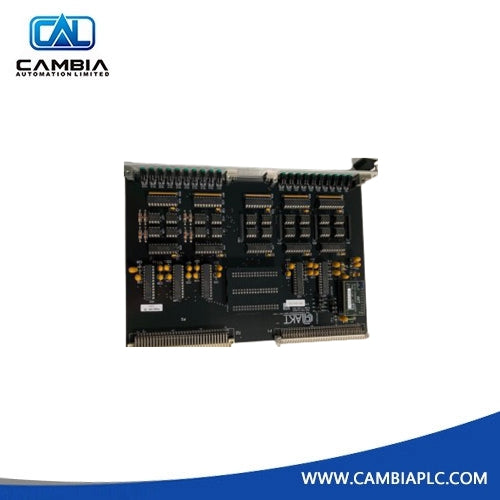

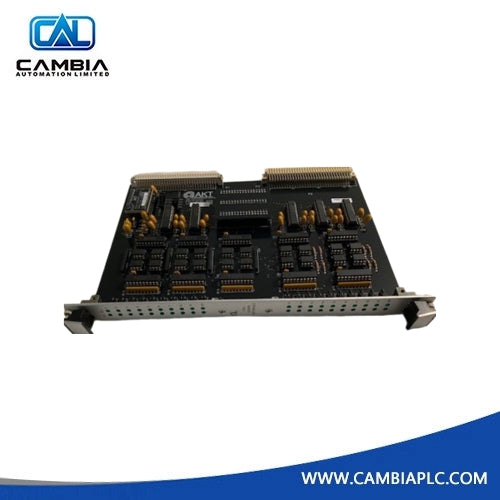

AKT 0100-71365 VME Communication With PMC Card And GND Planes Board 100% New

The AKT 0100-71365 is a specialized printed circuit board (PCB) designed to facilitate communication between a VMEbus system and a PMC (Peripheral Component Module) card. It incorporates ground planes for electrical stability and signal integrity, ensuring reliable data transfer and system performance.

Key Features

• VMEbus Interface: Provides necessary connections and protocols for communication with a VMEbus system.

• PMC Connector: Equipped with a PMC connector for seamless integration with a PMC card.

• Ground Planes: Incorporates copper layers dedicated to grounding for reduced noise and improved signal quality.

• Signal Routing: Optimized signal paths to minimize impedance mismatches and crosstalk.

• Power Distribution: Provides power and ground planes for supplying power to the PMC card.

• Communication Bridge: Enables data transfer between the VMEbus and PMC card.

• Signal Conditioning: Improves signal quality by reducing noise and interference.

• Power Distribution: Supplies necessary power to the PMC card.

• Grounding: Provides a stable ground reference for the entire circuit.
