Emerson

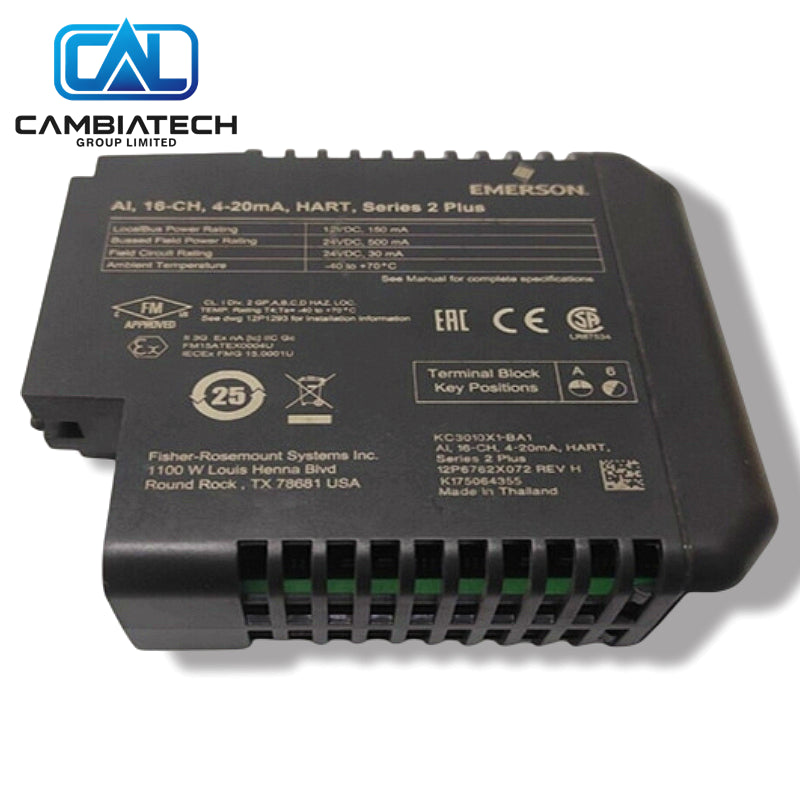

AI 16ch 4-20mA HART Plus KC3010X1-BA2 Emerson DeltaV
In stock, ready to ship
Manufacturer: Emerson
Product No.: KC3010X1-BA2
Product Type: Analog Input Module
Product Origin: USA
Payment: T/T
Weight: 1900g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
The Emerson KC3010X1-BA2 is a 16-channel Analog Input HART Plus module for DeltaV S-series systems. It accepts 4–20 mA signals with HART communication for high-density process measurement and device diagnostics.
Key Specs
- Channels: 16 analog inputs
- Signal: 4–20 mA with HART
- Local Bus Power: 12 VDC at 150 mA
- Bussed Field Power: 24 VDC at 500 mA
- Field Circuit: 24 VDC at 30 mA per channel
- Key position: A6 class
- Operating temperature: −40 °C to +70 °C
Why Choose This
- High-density 16-channel analog input
- Native HART support
- Hazardous-area certified
- Efficient for large I/O counts
Common Questions
- Channels? 16 AI 4–20 mA HART.
- Power? 12 VDC local / 24 VDC field.
- Key? A6 class.
Mounting Steps
- Install the matching terminal block.
- Insert the module into the S-series carrier.
- Wire the 4–20 mA field transmitters.
- Configure channels and HART parameters in DeltaV.
- Verify input values and device diagnostics.
Buying Advice
- Select for high-channel-count 4–20 mA + HART needs.
- Confirm terminal block and power budget.
- Useful spare for dense analog input racks.
