ABB

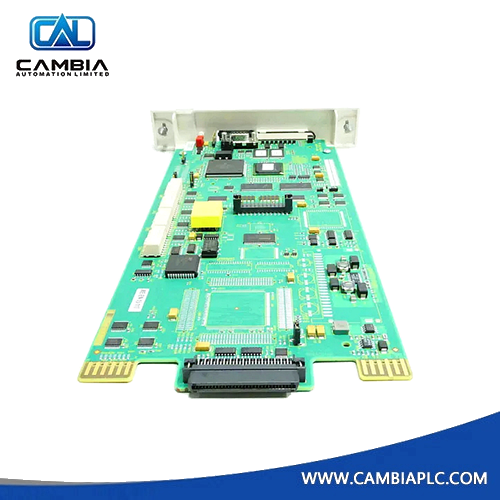

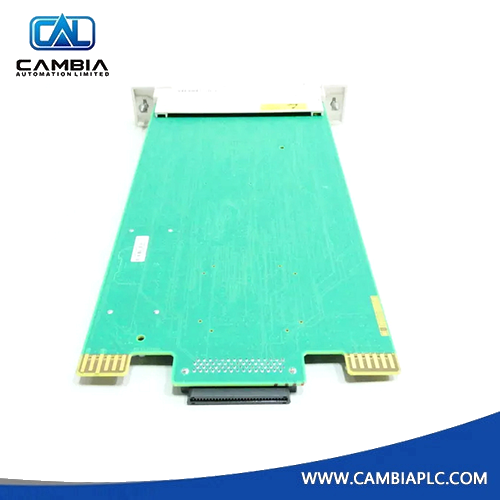

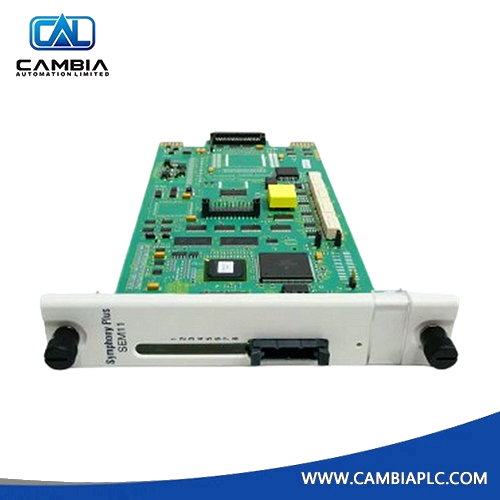

ABB Symphony Plus SPSEM11 SOE Master Module
In stock, ready to ship
Manufacturer: ABB
Product No.: SPSEM11
Product Type: SOE Master Module
Product Origin: Japan
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
ABB SPSEM11
High-Resolution Sequence of Events (SOE) Master Module
Product Description
The SPSEM11 is a high-resolution SOE (Sequence of Events) master module used in ABB Symphony Plus Distributed Control Systems (DCS). It captures and sequences digital input transitions across multiple process control units (PCUs), enabling precise fault analysis, operational diagnostics, and event tracking in industrial automation environments.
- Model: SPSEM11
- Product Type: SOE Master Module
- System Compatibility: ABB Symphony Plus DCS
Technical Specifications
| Attribute | Specification |
|---|---|
| Event Resolution | 1 ms |
| Channel Capacity | Up to 1,500 DI points across 1,000 PCU nodes |
| Time Synchronization | Via TKM01 Clock Master Module |
| Communication Interfaces | INFI-Net, RS485, Ethernet |
| Battery | 1 × Lithium button cell (5 g) |
| Dimensions (W × H × D) | 254 × 355.6 × 76.2 mm |
| Weight | 0.3 kg |
| Operating Temperature | –20°C to +70°C |
| WEEE Category | Category 5 (Small Equipment) |
Features
- Captures digital input transitions with 1 ms timestamp accuracy
- Sorts and transmits SOE data to operator stations for incident reconstruction
- Synchronizes with TKM01 for system-wide time consistency
- Supports exception-based reporting to reduce data traffic
- Integrates with modules like INNIS01, SET01, SED01, and TST01
- Modular design for scalable deployment and flexible topology
- Ideal for switchgear monitoring, fault tracing, and event diagnostics
