ABB RED670 1MRK000008-MB Display Panel Module
In stock, ready to ship
Manufacturer: ABB
Product No.: RED670 1MRK000008-MB
Product Type: Display Panel Module
Product Origin: USA
Payment: T/T
Weight: 760g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.

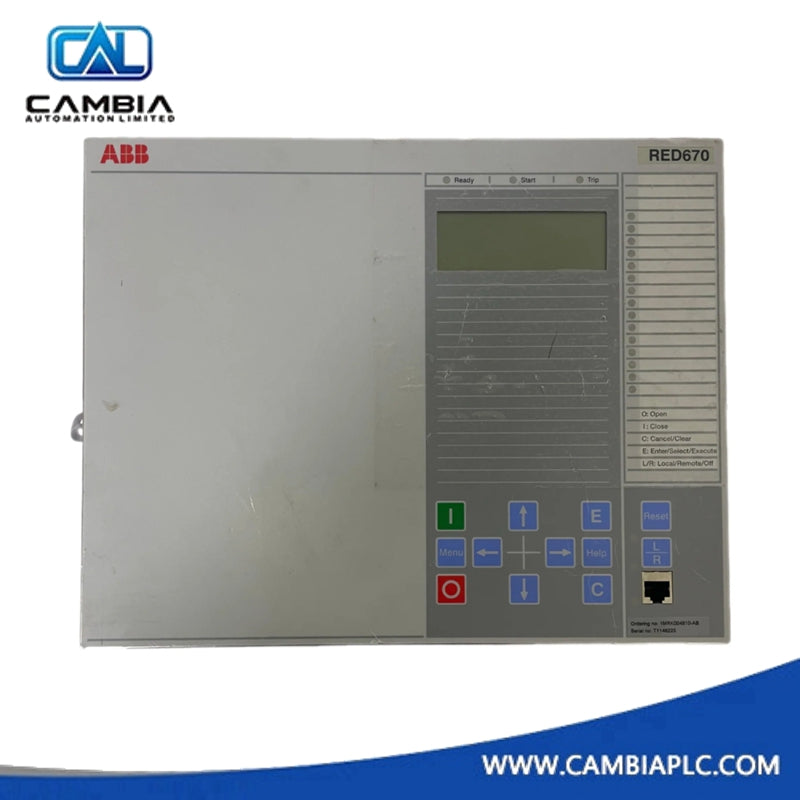

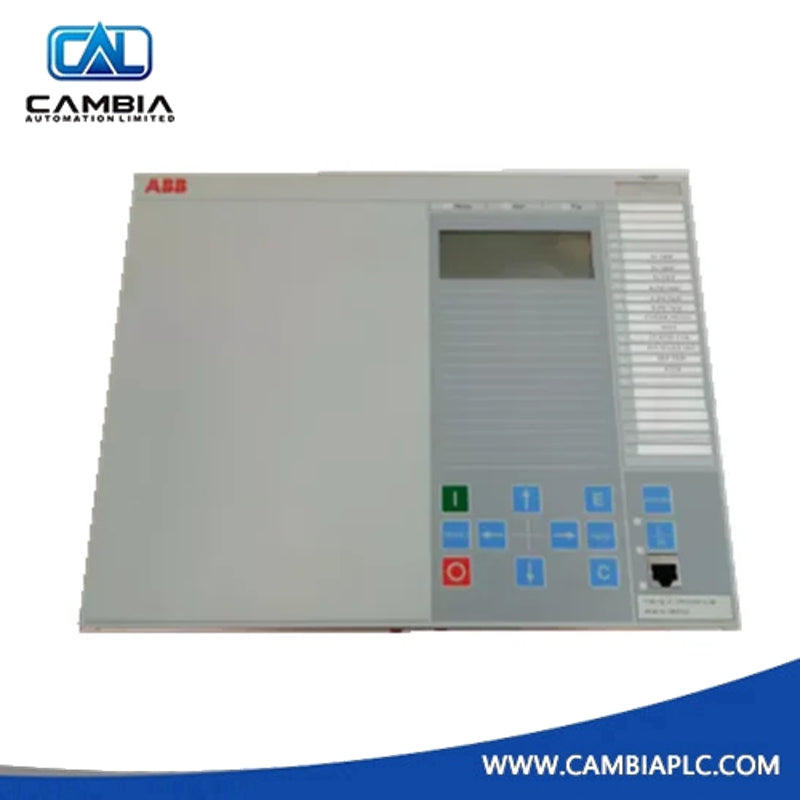

The ABB RED670 1MRK000008-MB is a high-resolution display panel module designed for the RED670 line differential protection relay, part of the Relion® 670 series. Operators use this module for local monitoring, configuration, and diagnostics in demanding high-voltage substation environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model | RED670 Display Panel |
| Part Number | 1MRK000008-MB |
| Series | Relion® 670 |
| Compatible Relays | RED670, REC670, REB670 |
| Display Type | High-resolution graphical touchscreen with ANSI symbol support |
| Frame Size | ¾ × 19 inch |
| Dimensions | 1200 mm × 800 mm × 500 mm |
| Weight | 3.5 kg |
| Mounting Method | Front panel installation |
| Communication Interface | Internal bus connection to RED670 base unit |
| Functions | Real-time data visualization, alarm management, operator control, data logging |
| Compatibility | Supports Relion® 670 IEDs (RED670, REL670, REB670) |
| Interface | Backlit LCD screen with keypad for navigation and data entry |
| Communication | Internal communication with the main relay unit |
| Firmware | Operation tied to IED firmware, version-dependent |
| Power Supply | Powered directly by the IED, supports low-voltage DC or AC |
| Part Number Breakdown | Internal ABB designation for Relion® 670 display variants |
