ABB DI801 Digital Input Module
In stock, ready to ship
Manufacturer: ABB
Product No.: DI801
Product Type: Digital Input Module
Product Origin: USA
Payment: T/T
Weight: 1020g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.

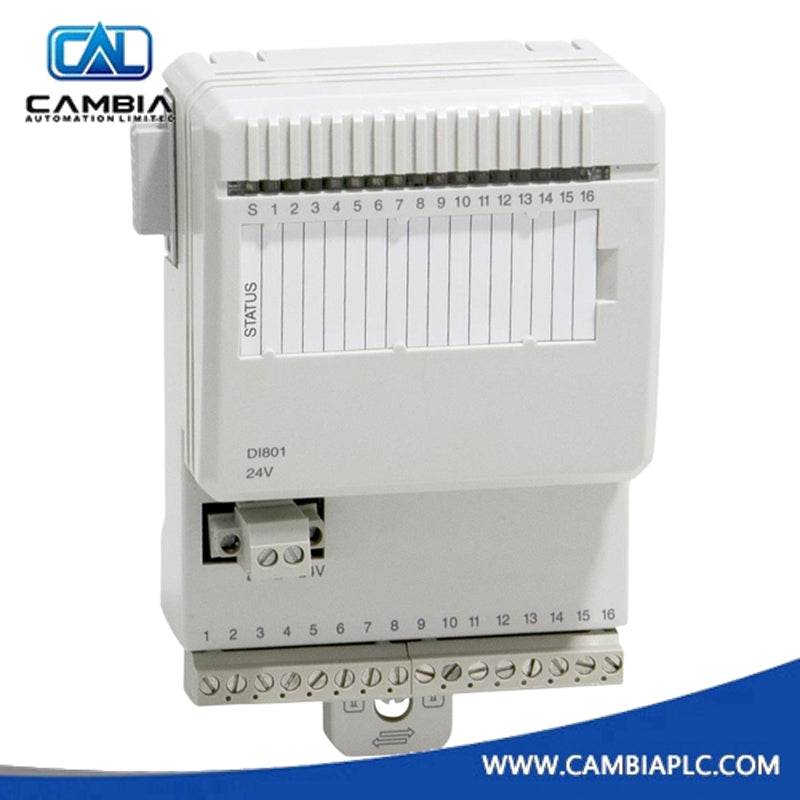

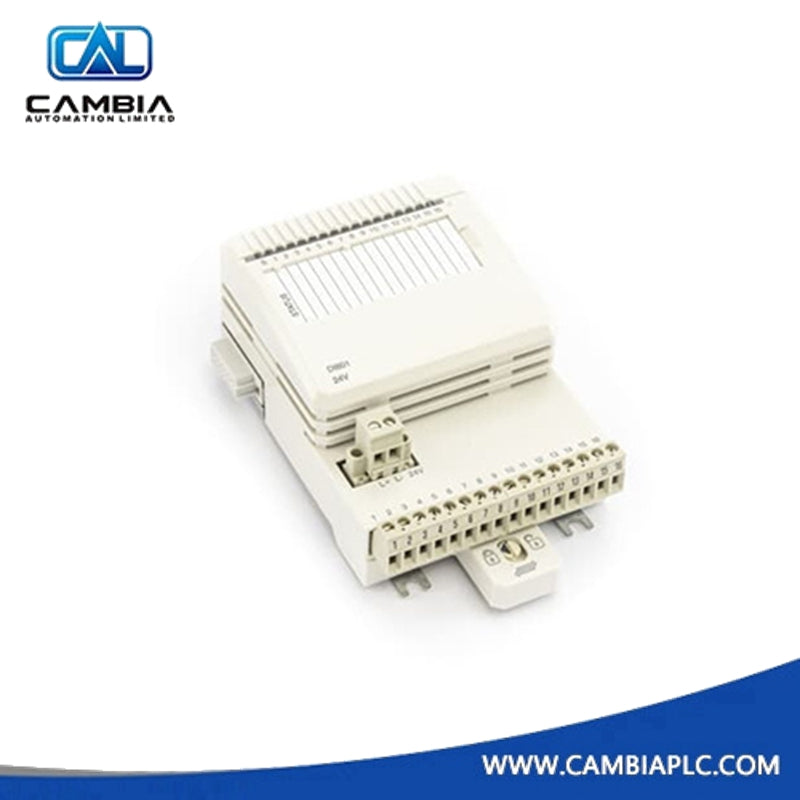

The ABB DI801 3BSE020508R1 is a 16-channel digital input module designed for the S800L I/O system. It operates at 24V DC and supports current sinking input types. The module is commonly used in industrial control applications where space efficiency, input status indication, and reliable signal processing are required.
Technical Summary
The DI801 handles 16 digital input channels, all within a single isolated group. The input voltage range spans from 18 V to 30 V DC, with each channel drawing approximately 6 mA at 24 V. Channel 16 can optionally serve as a voltage supervision input, enabling diagnostics within the input group.
Each input channel includes components for current limiting, EMC protection, an LED status indicator, and optical isolation, ensuring safe and interference-free operation.
Features and Benefits
-
Supports 16 channels for 24 V DC current-sinking inputs
-
All channels grouped into one isolated block for simplified wiring
-
Channel 16 allows voltage supervision to monitor input group health
-
LED indicators provide visual feedback for each input state
-
Uses detachable connectors for efficient process and power connection
-
Built to fit the compact S800L modular platform
-
Ideal for scalable and space-limited control systems
Physical Specifications
-
Width: 86.1 mm (3.4 inches)
-
Depth: 58.5 mm (2.3 inches)
-
Height: 110 mm (4.33 inches)
-
Weight: 0.24 kg (0.53 lbs)
