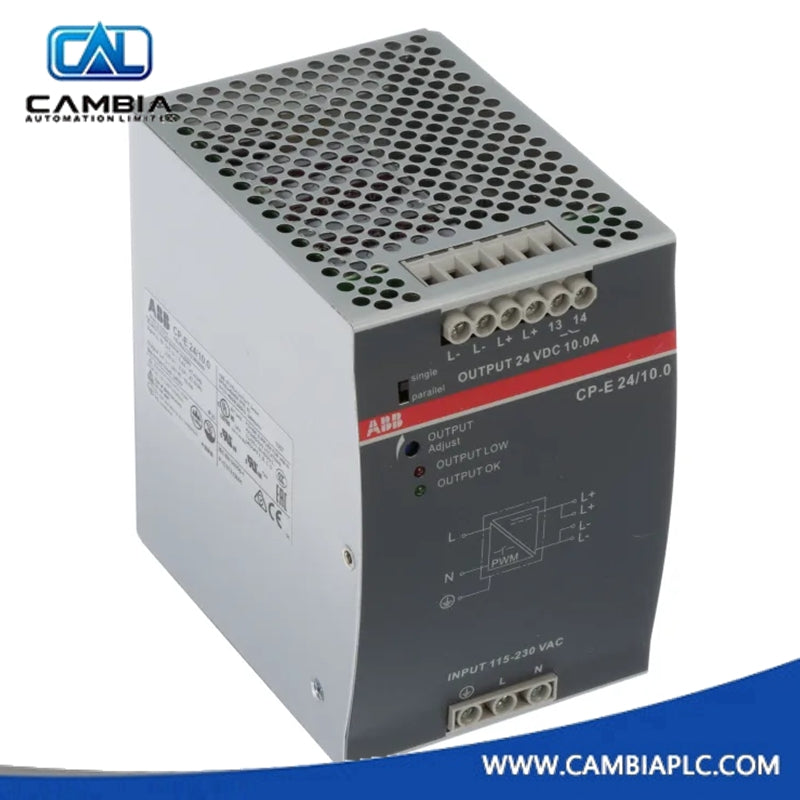

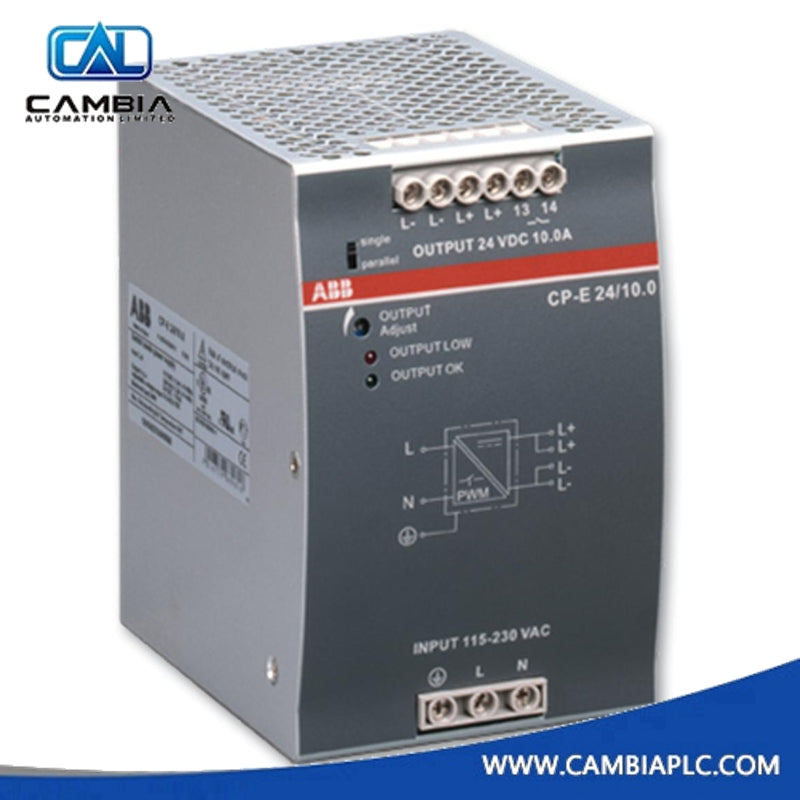

ABB CP-E 24/10.0 Power Supply – 24VDC 10A Module

1. Product Summary

The ABB CP-E 24/10.0 power supply delivers dependable 24 VDC output for medium-to-high power automation systems requiring stable and efficient performance. Its switch-mode architecture ensures consistent regulation while supporting a wide input range suited for global installations. Moreover, the auto-select function between 115 and 230 VAC simplifies commissioning, enabling engineers to integrate the module into diverse control environments without manual adjustments.

2. Functional Highlights and Key Benefits

The supply provides 10 A of regulated output current, offering sufficient capacity for PLC networks, valve islands, industrial sensors, and motion subsystems. In addition, the adjustable output voltage of 22.5–28.5 VDC helps compensate for long cable runs or devices with tight voltage tolerances. The U/I output characteristic maintains reliable overload behavior, which supports smooth system performance during momentary high-demand conditions. Therefore, integrators gain a power source that remains stable even in dynamic machine cycles. Furthermore, up to three units can operate in parallel for capacity expansion or redundancy, enabling fault-tolerant or scalable architectures in advanced industrial applications.

3. Technical Specifications

Electrical Data

• Input ranges: 90–132 VAC / 180–264 VAC / 210–375 VDC

• Rated input voltage: 115 / 230 VAC (auto-select)

• Output voltage: 24 VDC adjustable 22.5–28.5 VDC

• Output current: 10 A

• Rated output power: 240 W

• Output characteristic: U/I

• Parallel operation: Up to 3 units

• Redundancy module: Available as accessory

Mechanical Dimensions

• Width: 83 mm

• Height: 123.6 mm

• Depth: 123.6 mm

• Net weight: 1.334 kg

Packaging Information

• Package width: 162 mm

• Package height: 104 mm

• Package depth: 160 mm

• Gross weight: 1.445 kg

• Units per box: 1

• EAN: 4016779669696

• Product ID: 1SVR427035R0000

4. Typical Applications and Integration

This model suits control cabinets powering advanced PLC systems, machine controllers, distributed I/O clusters, and industrial communication modules. For instance, integrators use it to support multi-axis equipment requiring stable 24 VDC during rapid load cycles. Moreover, the parallel operation capability allows integrators to scale total system power for robotics cells or packaging machines without redesigning the original electrical framework. Its robust mechanical build and predictable performance make it ideal for continuous-operation facilities.

5. Support, Reliability and Service

The CP-E family is engineered for long-term endurance in industrial environments where thermal and electrical stability are critical. In addition, ABB’s global service network ensures quick access to technical documentation and replacement parts. Therefore, maintenance teams rely on this supply to deliver consistent operation with minimal downtime throughout the equipment lifecycle.

6. FAQ

Q1: Can the CP-E 24/10.0 supply operate in redundant configurations?
Yes, the unit supports parallel operation and works with ABB redundancy accessories.

Q2: Is the output voltage adjustable?
Yes, the adjustable range of 22.5–28.5 VDC allows fine tuning for various load conditions.

Q3: What overload characteristic does the module use?
It uses a U/I output curve that stabilizes system operation during temporary overloads.

Q4: Is it suitable for global deployment?
Yes, the wide AC and DC input ranges support worldwide industrial voltage standards.

Q5: Which applications benefit most from this supply?
Medium-to-high power automation systems, motion platforms, and PLC networks benefit significantly.
