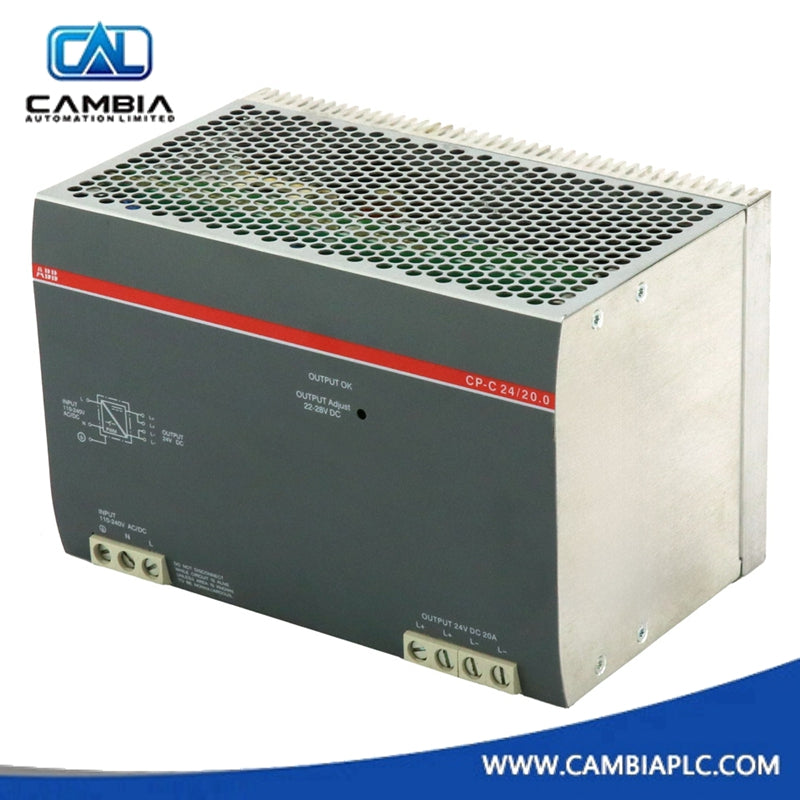

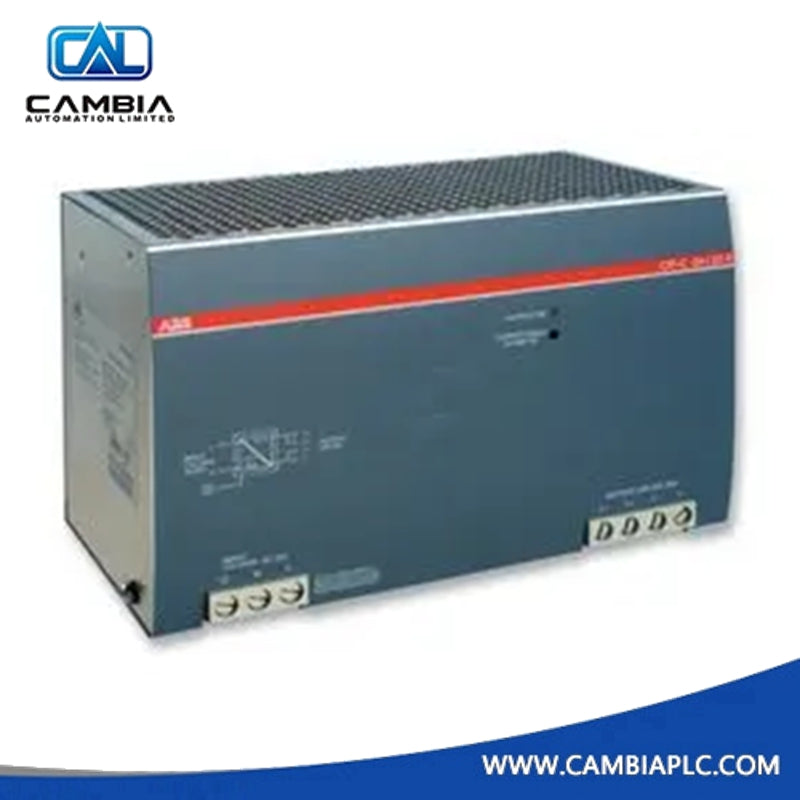

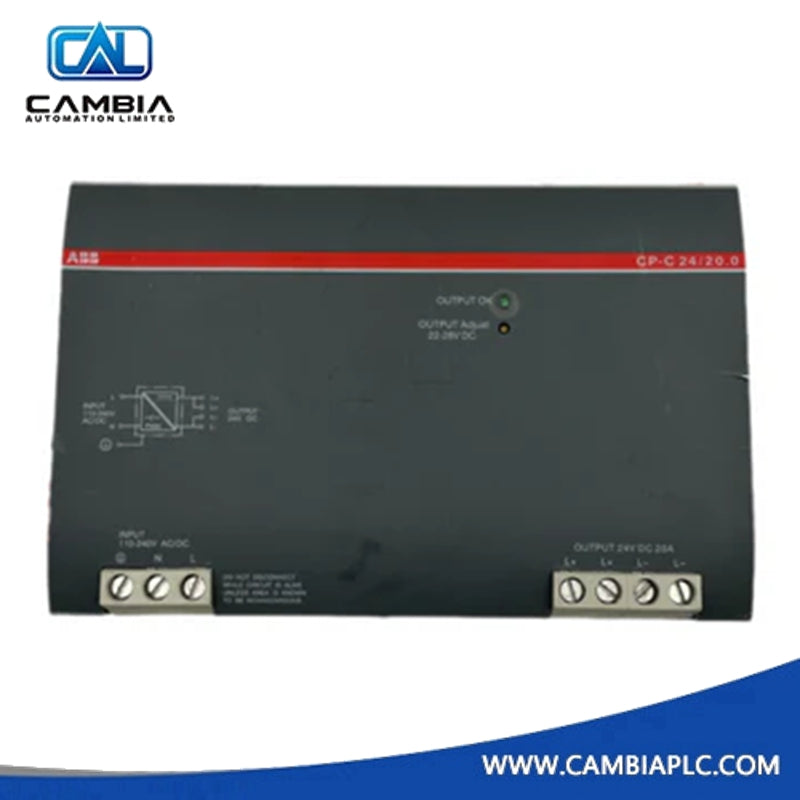

ABB CP-C 24/20.0 Power Supply – 24V 20A Module

The ABB CP-C 24/20.0 (1SVR427026R0000) delivers a powerful and robust 24 VDC supply ideal for demanding industrial control systems. It provides a high-current output that supports large loads such as multiple PLC modules, sensors, actuators, and I/O devices. In addition, the module’s broad input voltage range and built-in protections ensure stable operation under varying supply conditions. This makes the unit a reliable core element for control cabinets, machine automation, and heavy-duty industrial panels.

2. Key Features and Main Benefits

• Delivers a substantial 480 W output at 24 VDC, supplying up to 20 A of current — enough to power intensive automation systems with many downstream devices.

• Accepts a wide range of input voltages (AC 85–264 V or DC 100–350 V), ensuring compatibility across different power environments and reducing need for external converters.

• Provides adjustable output voltage, enabling fine-tuning of supply between approximately 22–28 VDC to compensate for voltage drop over long feed lines.

• Supports parallel operation for increased capacity or redundancy, helping to scale power delivery or build fault-tolerant systems.

• Built-in protections (overload, short circuit, and power-factor correction) safeguard both the supply and connected devices under fault conditions.

3. Technical Data / Specifications

Electrical Specifications

• Output voltage (nominal): 24 V DC

• Output current: up to 20 A

• Output power: 480 W

• Input voltage range: 85–264 V AC or 100–350 V DC (wide-range)

• Output voltage adjustment: ~22–28 V DC

• Output characteristic: U/I curve with overload capacity

Mechanical / Installation Data

• Mounting: DIN rail (standard industrial mounting)

• Protection / housing: enclosed design suitable for industrial environments

Compliance & Safety

• Certifications and approvals: CE, UL / cULus, CCC, GOST — meeting global industrial safety standards

• Built-in overload and short-circuit protection; power-factor correction included

4. Typical Applications / System Integration Use Cases

This power supply fits well in control cabinets powering programmable logic controllers (PLCs), distributed I/O, sensors, actuators and servo drives. It also supports systems requiring high combined current loads such as complex production machines or conveyor control lines. For example, OEM machine builders use it to power entire automation panels with many I/O and actuators. Moreover, its adjustable output and redundancy options make it ideal for systems demanding stable supply under heavy load or requiring high availability in manufacturing plants.

5. Reliability, Service and Maintenance

ABB builds the CP-C range with long-term durability in mind, ensuring stable performance even under fluctuating input voltage or heavy current draw. The inclusion of safety protections and power-factor correction reduces stress on internal components, which prolongs lifetime and minimizes maintenance frequency. In addition, global compliance certifications and adherence to standards facilitate smooth integration into industrial control infrastructure. Should replacement or expansion be necessary, parallel operation simplifies upgrades without major rewiring.

6. FAQ

Q1: What input voltages does this module accept?
It supports AC input from 85 to 264 VAC and DC input from 100 to 350 VDC, making it flexible across different installations.

Q2: Can the output voltage be adjusted for sensitive components?
Yes, the output voltage is adjustable around 22 to 28 V DC, letting you compensate for line losses or meet specific device requirements.

Q3: Is it possible to run multiple supplies for redundancy?
Yes, the module supports parallel connection to increase capacity or enable redundancy for critical controls.

Q4: Does the supply protect against overcurrent or short circuits?
Indeed. Overload and short-circuit protections are built in, safeguarding both the supply and connected devices.

Q5: What kinds of systems benefit most from this power supply?
Large control panels, automation machinery, systems with many sensors/actuators, or setups requiring stable 24 V power under heavy load benefit significantly.
