1. Product Overview

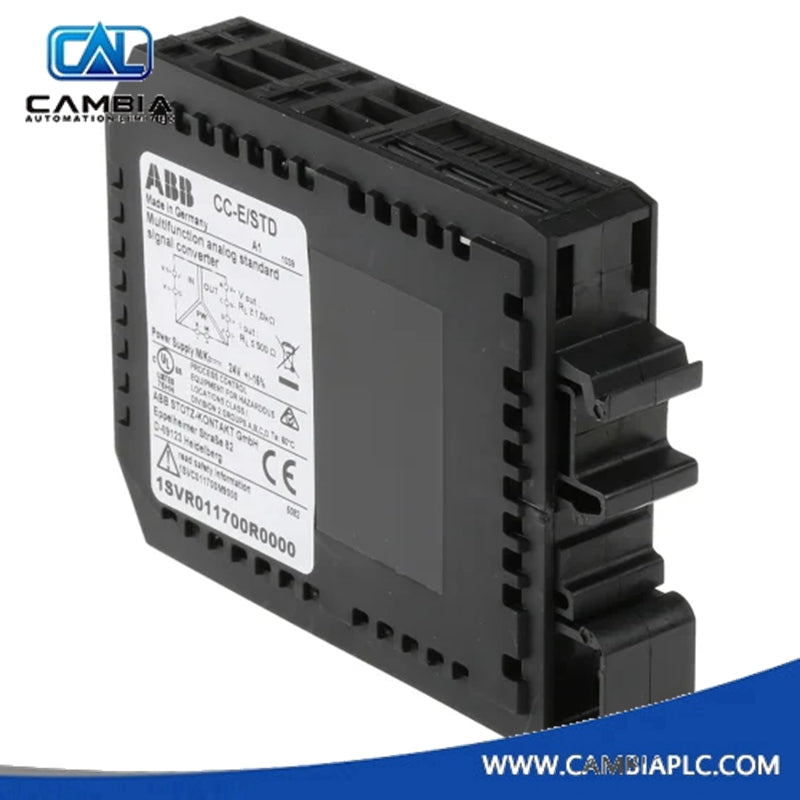

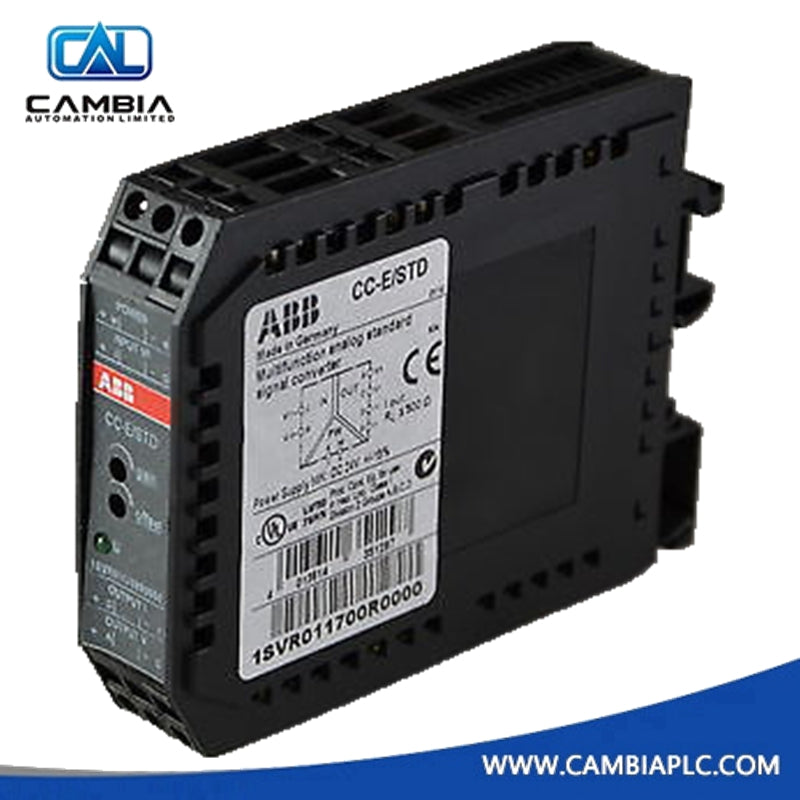

The ABB CC-E/STD (1SVR011700R0000) Universal Analog Signal Converter offers dependable signal conditioning for automation systems that require accurate and noise-resistant analog communication. The module ensures stable performance with its integrated 3-way electrical isolation, which prevents ground loop issues and improves measurement integrity in electrically complex environments. Moreover, its compact DIN-rail form factor allows effortless integration into existing control cabinets, even when panel space is limited.

2. Functional Highlights

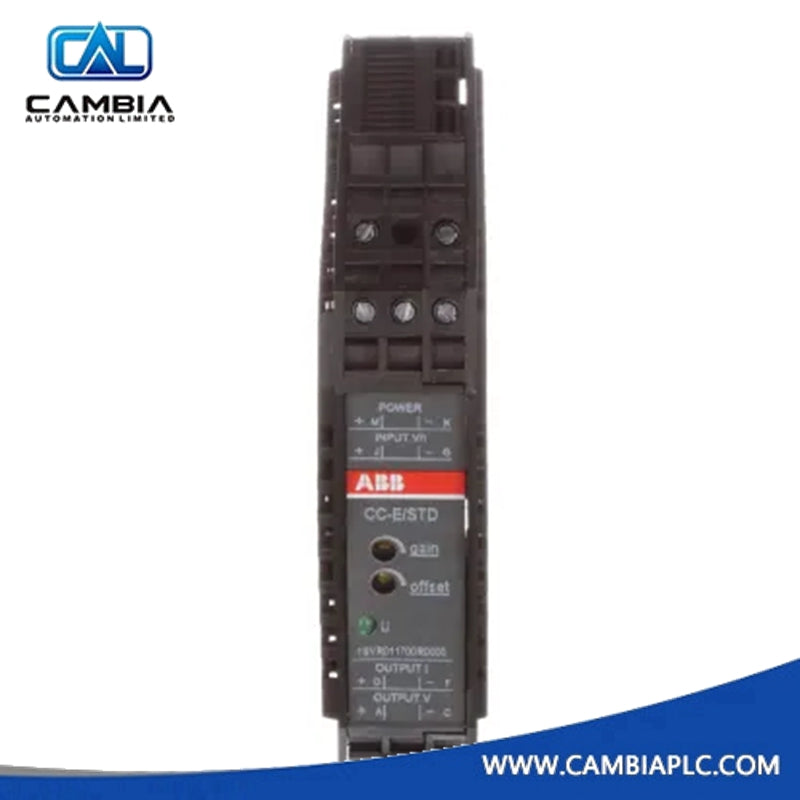

This converter supports multiple voltage and current ranges, providing engineers with a flexible solution for standard industrial signal conversion. In addition, the device enables rapid configuration through lateral DIP switches and front-panel potentiometers, making on-site adjustments straightforward during commissioning or troubleshooting. Furthermore, its low power consumption and stable DC supply requirement help maintain consistent operation across long duty cycles.

3. Technical Data / Specifications

General Information

• Manufacturer: ABB

• Product Type: Universal Analog Signal Converter

• Model Number: CC-E/STD

• Order Code: 1SVR011700R0000

• Product Origin: Sweden

• Weight: 0.088 kg

Functional Characteristics

• Function: Voltage / current to voltage / current conversion

• Electrical Isolation: 3-way (input, output, power supply)

Input Signal Ranges

• 0–5 V

• 0–10 V

• 0–20 mA

• 4–20 mA

Output Signal Ranges

• 0–5 V

• 0–10 V

• 0–20 mA

• 4–20 mA

Electrical Data

• Rated Control Supply Voltage: 24 V DC

• Power Loss: Approximately 2 W

Mechanical Data

• Mounting: DIN rail

• Height: 75 mm

• Width: 22.5 mm

• Depth: 107 mm

4. Typical Applications & System Integration

The CC-E/STD is commonly used in process automation, building management systems, and equipment monitoring applications requiring precise analog signal conversion. Therefore, engineers deploy this module when integrating PLCs, transmitters, and actuators that operate with different signal standards. For instance, the converter ensures smooth interoperability between legacy measurement devices and modern control hardware, maintaining accuracy throughout the entire control loop.

5. Support & Maintenance

Routine adjustments can be completed quickly thanks to front-panel trim settings, which help technicians fine-tune calibration during field servicing. Moreover, ABB’s established support infrastructure provides reliable access to manuals, configuration guides, and spare units, ensuring long-term system reliability.

FAQ

Q1: Can the CC-E/STD convert both voltage and current signals?
Yes, it supports multiple configurable voltage and current ranges for flexible signal conditioning.

Q2: What type of isolation does this converter provide?
It features 3-way isolation, which separates the input, output, and power supply circuits.

Q3: Is DIN-rail mounting required for installation?
Yes, the device is designed for standard DIN-rail installation in control cabinets.

Q4: How is the signal range configured?
Users can adjust the configuration through DIP switches and fine-tune values using potentiometers.
