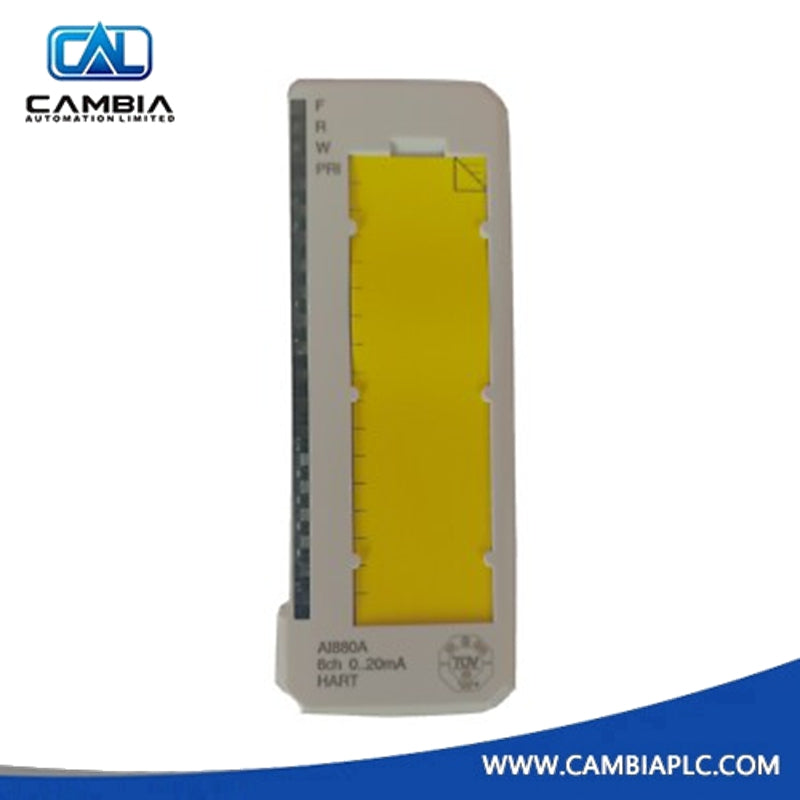

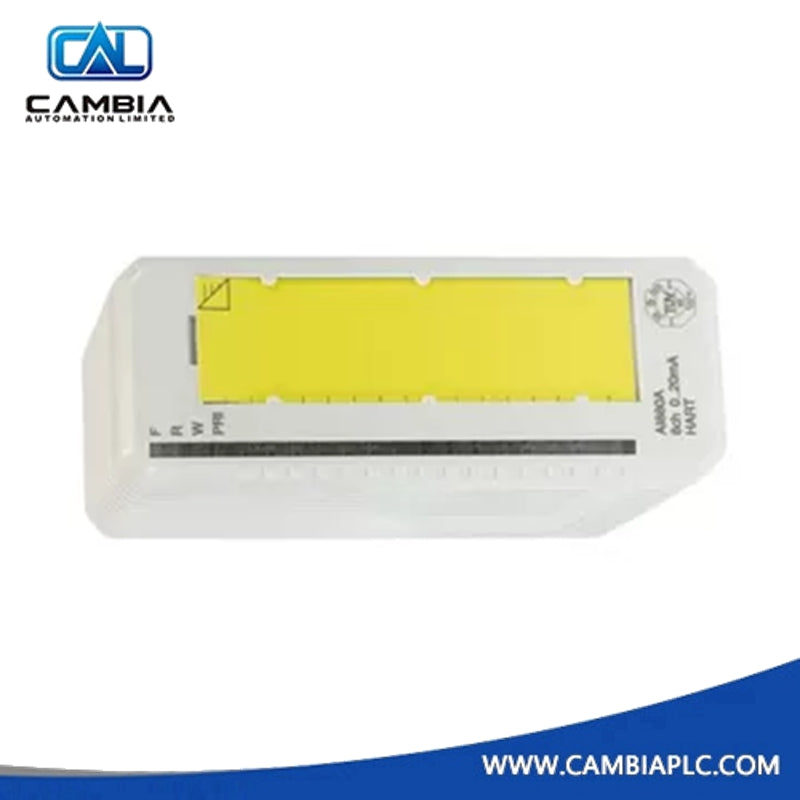

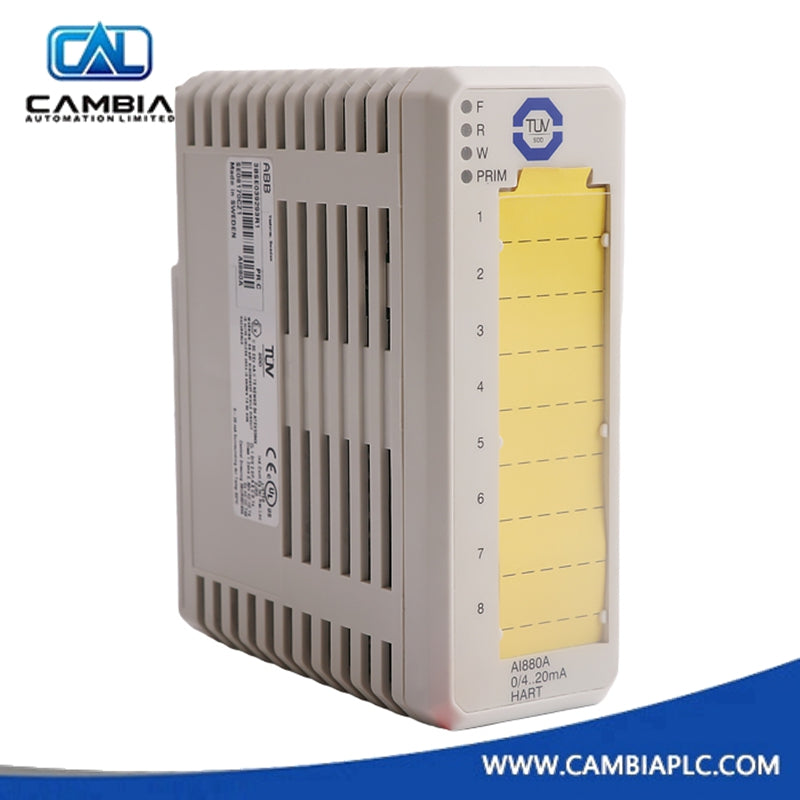

ABB AI880A Analog Input Module
In stock, ready to ship
Manufacturer: ABB
Product No.: AI880A
Product Type: Analog Input Module
Product Origin: USA
Payment: T/T
Weight: 760g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The ABB AI880A is a high-integrity analog input module from the S800 I/O series, offering 8 current input channels for 0–20 mA or 4–20 mA signals. Engineered for both single and redundant configurations, this module is ideal for applications requiring high safety standards, advanced diagnostics, and HART communication capabilities.
Product Details
| Attribute | Specification |
|---|---|
| Manufacturer | ABB |
| Series | S800 |
| Product Name | AI880A |
| Article Number | 3BSE039293R1 |
| Product Type | Analog Input Module |
| Signal Range | 0–20 mA, 4–20 mA |
| Number of Channels | 8 |
| Signal Type | Unipolar, single-ended |
| HART Support | Yes (HART pass-through communication) |
| Redundancy | Supported |
| High Integrity | Yes (SIL3 certified per IEC 61508) |
| Intrinsic Safety | No |
| SOE (Sequence of Events) | No |
| Input Resistance | 250 ohm |
| Resolution | 12-bit |
| Diagnostics | Advanced on-board diagnostics |
| Transmitter Supply | Supervised and current-limited per channel |
| Isolation | One group of 8 channels isolated from ModuleBus |
Mechanical Specifications
| Dimension | Value |
|---|---|
| Width | 45 mm (1.77 in) |
| Depth | 102 mm (4.01 in) / 111 mm (4.37 in) with connector |
| Height | 119 mm (4.7 in) |
| Weight | 0.15 kg (0.33 lbs) |
Key Features and Benefits
-
8 Current Input Channels
Supports 0–20 mA and 4–20 mA signals for unipolar, single-ended inputs. -
Flexible Configuration
Supports both single and redundant system configurations. -
Transmitter Power Distribution
Built-in distribution of external transmitter supply simplifies wiring for 2- or 3-wire transmitters. -
Loop Supervision & Alarms
Loop-supervised digital input function with configurable alarm limits for field power outputs. -
NAMUR NE43 Compliance
Configurable over- and under-range detection for process integrity. -
HART Communication
Enables pass-through HART communication for device diagnostics and asset management. -
Robust Diagnostics
Advanced on-board diagnostics help detect failures, wire breaks, and current loop faults. -
Certified Safety
Complies with IEC 61508 SIL3 and EN 954-1 Category 4 standards for high-integrity systems.
