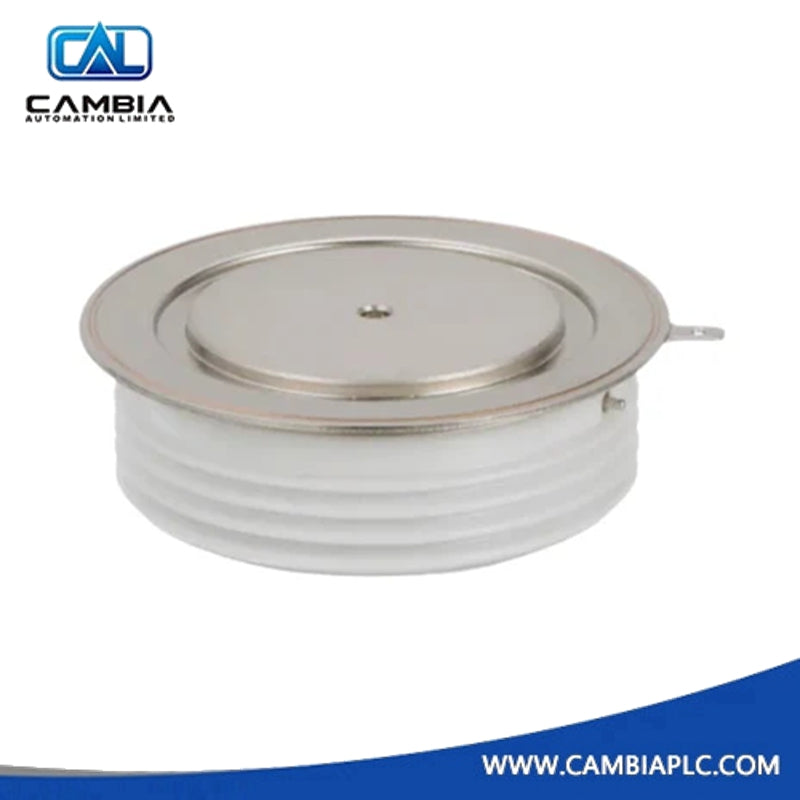

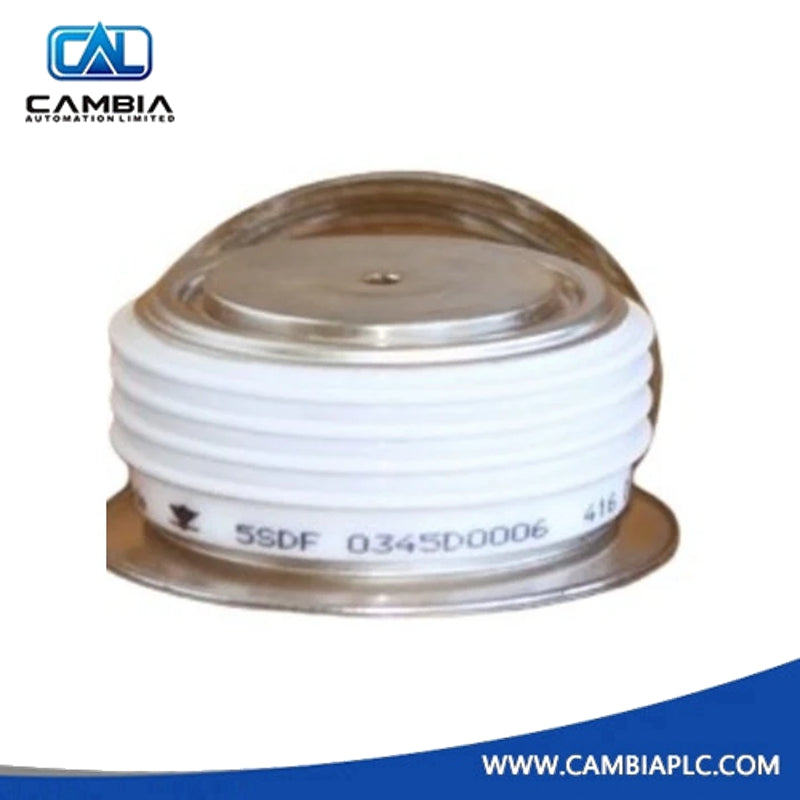

ABB 5SDF0345D0006 3BHL000200P0001 Thyristor for Acs1000 AC Drive
In stock, ready to ship
Manufacturer: ABB
Product No.: 5SDF0345D0006 3BHL000200P0001
Product Type: Thyristor
Product Origin: Sweden
Payment: T/T
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The ABB 5SDF0345D0006 (also known by product number 3BHL000200P0001) is a diode pressure module designed for use in medium-voltage AC frequency converters, specifically in ABB's ACS 1000 series. This critical component manages the current within the drive, and may also help in controlling the direction of the current.
Key Features
-
Direction Control: Regulates the current within the AC frequency converter.
-
High Voltage Handling: Designed to withstand high voltages typically found in medium-voltage AC drives, with a maximum voltage rating of 4500V.
-
Compact Design: Efficiently installed in the control cabinet of the frequency converter for space-saving and practical integration.
Applications
-
Medium Voltage Frequency Converters: Primarily used in ABB ACS 1000 medium-voltage frequency converters for controlling the speed and torque of high-power AC motors in industrial applications.
Product Details
| Attribute | Specification |
|---|---|
| Part Number | 5SDF0345D0006 (3BHL000200P0001) |
| Manufacturer | ABB |
| Country of Origin | Switzerland |
| Minimum Order Quantity | 1 piece |
| Part Type | New |
| Weight | 0.51 kg |
Additional Information
-
Rated Voltage and Current: Can handle a maximum voltage of 4500V.
-
Compatibility: Primarily designed for ACS 1000 drives, but also compatible with other ABB medium-voltage AC drive systems.
-
Selection Considerations: Ensure proper selection based on the rated voltage and current of the specific AC drive system for optimal performance.
