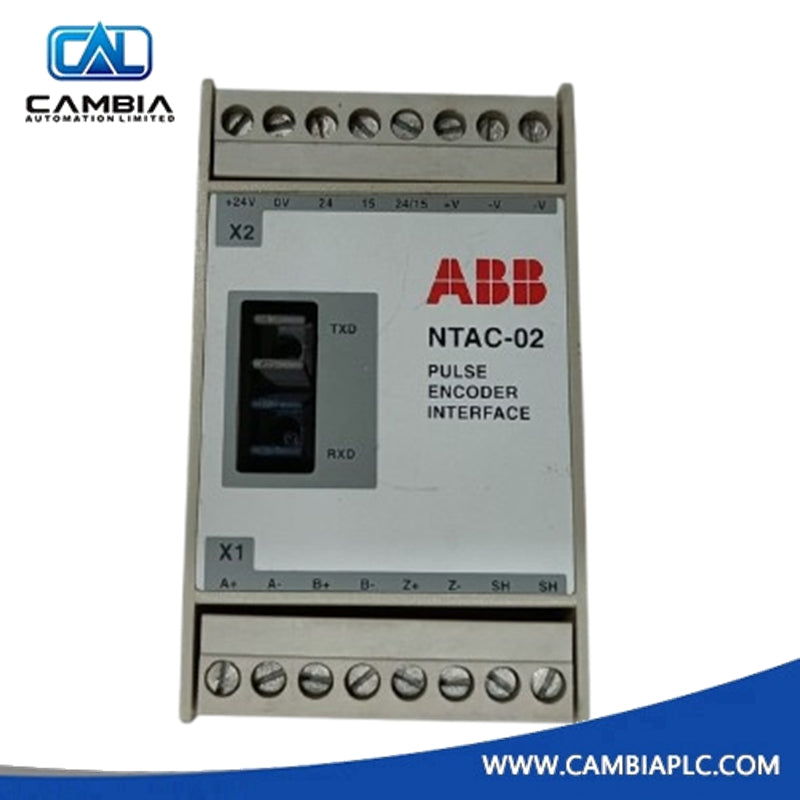

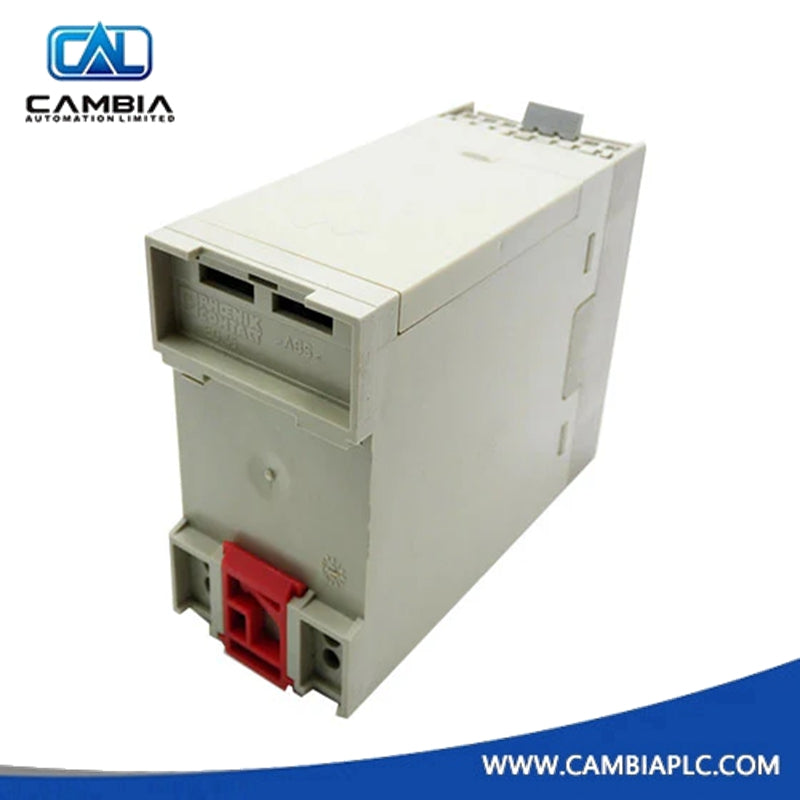

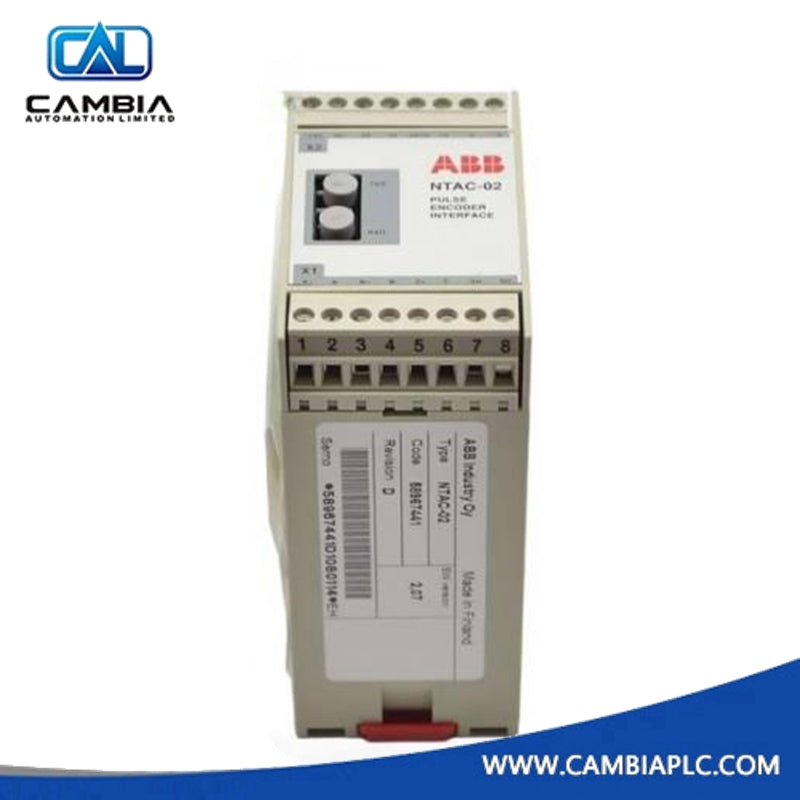

ABB 58976008 NTAC-02 Pulse Encoder Interface
In stock, ready to ship
Manufacturer: ABB
Product No.: 58976008 NTAC-02
Product Type: Pulse Encoder Interface
Product Origin: Sweden
Payment: T/T
Weight: 100g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The ABB 58976008 (NTAC-02) is a Pulse Encoder Interface Module, primarily used with ABB industrial drives.
Technical Overview
This module is a critical "Option Kit" for closed-loop control applications in industrial automation. It facilitates feedback processing and motor control, making it an essential component for achieving high-precision performance.
Key Functions
-
Feedback Processing: Converts raw pulse signals from a rotary encoder into digital data that the drive’s control board (like the RMIO board) can interpret.
-
Motor Control: Enables Direct Torque Control (DTC) in closed-loop mode, which is essential for applications requiring full torque at zero speed or highly accurate speed regulation.
-
Isolation: Provides electrical isolation and signal conditioning to protect the drive's sensitive control electronics from electrical noise generated by the motor/encoder cables.
Product Specifications
| Attribute | Specification |
|---|---|
| Product ID | 58976008 (NTAC-02) |
| Input Voltage | 24 V DC ± 10% |
| Power Consumption | 7.5 W / 300 mA |
| Encoder Supply | Jumper-selectable 15 V or 24 V |
| Signal Type | Incremental (A, B, Z channels) |
| Pulse Rate | Up to 100 kHz |
| Compatibility | ABB ACS600 and ACS800 Drive Series |
