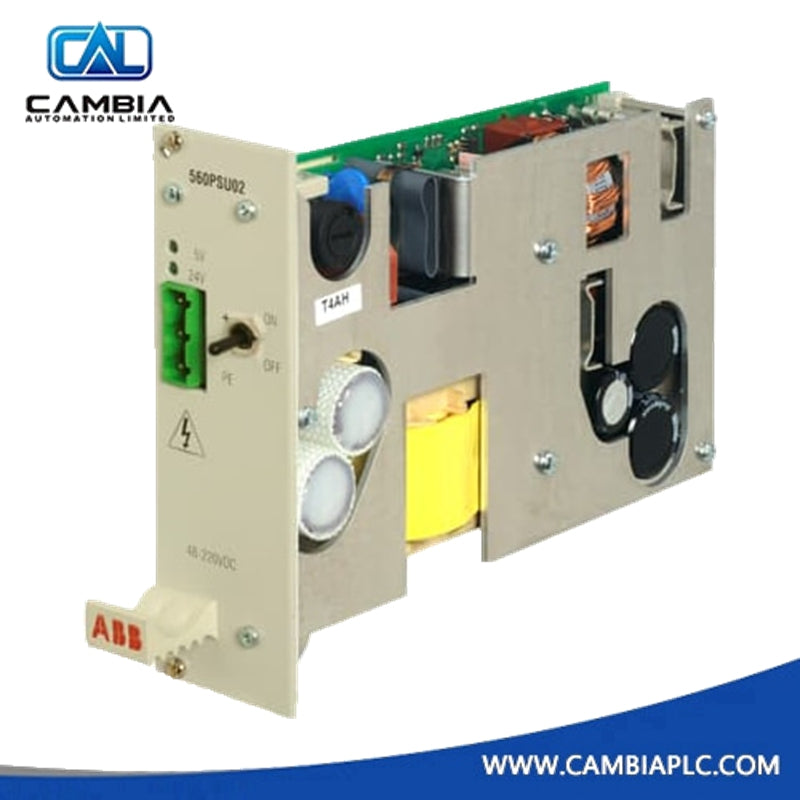

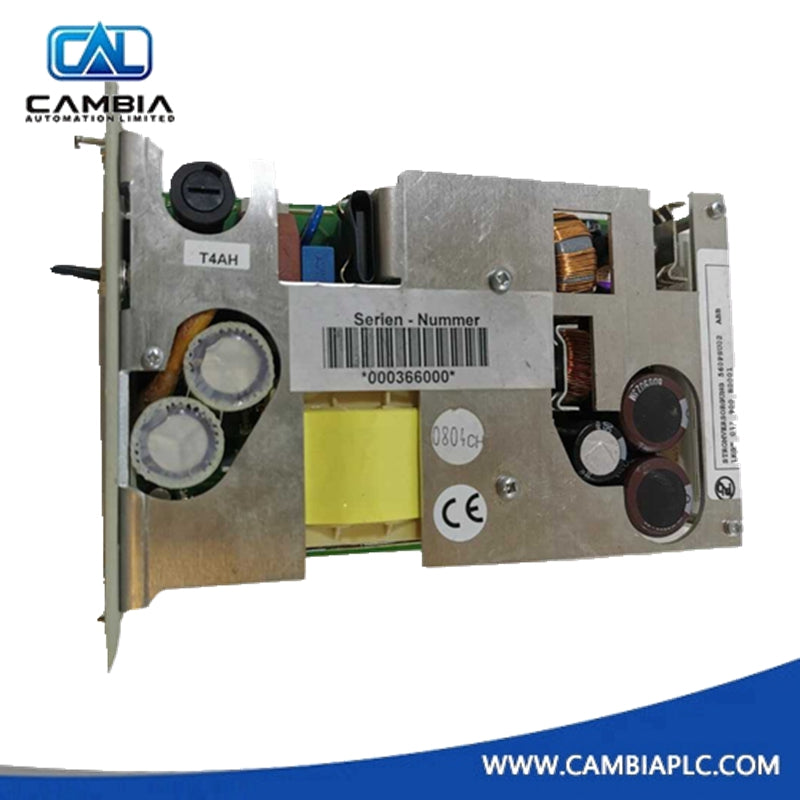

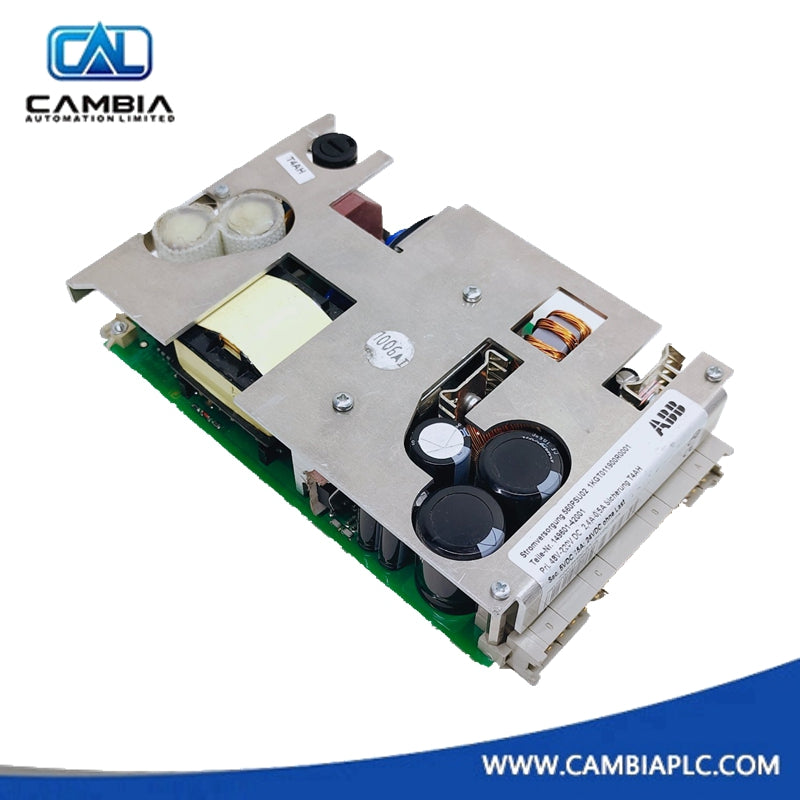

ABB 560PSU02 R0001 1KGT011900R0001 Power Supply Unit
In stock, ready to ship
Manufacturer: ABB
Product No.: 560PSU02 R0001 1KGT011900R0001
Product Type: Power Supply Unit
Product Origin: Sweden
Payment: T/T
Weight: 650g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The 560PSU02 power supply unit is designed to generate two supply voltages (5 V DC and 24 V DC) for the RTU560 subracks (560MPR03 and 560SFR02). It provides sufficient output power to support up to 8 communication units (CMUs) in a subrack. The power supply unit can be configured for redundant operation to meet higher availability requirements by running two units in parallel mode. In case one power supply fails, the other can take over the full load. It is important to use power supplies of the same type and rubric for redundant configurations.
Available Version:
-
R0001: Input range of 48 ... 220 V DC (-20% to +20%)
Power Supply Input:
| Feature | Specification |
|---|---|
| Input Voltage | 48 ... 220 V DC |
| Input Tolerance Range | -20% ... +20% |
| Voltage Interruption | ≤ 50 ms; 0% UN (UN ≥ 48V) |
| Max. Input Current | 2.4 ... 0.5 A |
| Starting Current | <10 A; 50µs - 1.5ms (Class S1, IEC 60870-4) |
| Fuse | F1 = 4 A T |
| Efficiency | 74% @ 48 ... 110 V DC |
| External Circuit-Breaker | The plus lead should be protected by a circuit-breaker upstream with 10 A trip current |
| Reverse Voltage Protection | Yes |
| Potential Isolation | Yes |
