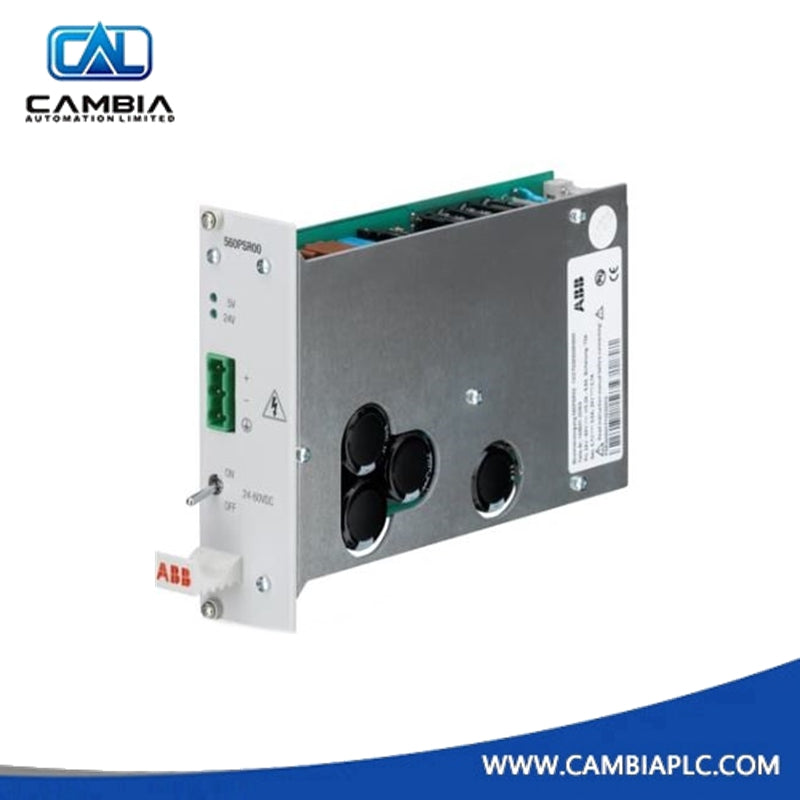

ABB 560PSR00 1KGT026500R0001 Power Supply Unit
ABB 560PSR00 1KGT026500R0001 Power Supply Unit

ABB

ABB 560PSR00 1KGT026500R0001 Power Supply Unit

In stock, ready to ship

  • Manufacturer: ABB

  • Product No.: 560PSR00 1KGT026500R0001

  • Product Type: Power Supply Unit

  • Product Origin: USA

  • Payment: T/T

  • Weight: 3000g

  • Shipping port: Xiamen

  • Warranty: 12 months

ABB 560PSR00 1KGT026500R0001 Power Supply Unit

The ABB 560PSR00 (1KGT026500R0001) is a power supply unit specifically designed for the RTU560 Remote Terminal Unit series, part of ABB's substation automation solutions. It delivers dual DC output voltages (5 V and 24 V) to power RTU560 subracks, particularly models 560MPR03 and 560SFR02. The unit supports high-availability configurations with redundant power supply capability to ensure continuous and reliable operation.

Technical Specifications

  • Input Voltage Range: 24 to 60 V DC (with tolerance of -20% to +15%)

  • Output Voltages:

    • 5 V DC at 5.5 A

    • 24 V DC at 0.7 A

  • Total Output Power: 44.3 W

  • Redundant Operation: Supports parallel operation with another 560PSR00 unit for redundancy, enabling seamless load sharing and failover

  • Cooling Method: Natural convection (no active cooling required)

  • Protection Features:

    • Short-circuit proof outputs

    • Over-voltage and reverse voltage protection on the input side

    • Potential isolation between input and output

  • Mounting: DIN rail mounting compatible with RTU560 subracks

Environmental Specifications

  • Operating Temperature Range: 0°C to +55°C

  • Storage Temperature Range: -40°C to +70°C

  • Humidity: 5% to 95% non-condensing
