ABB 560MPR03 R0001 1KGT022100R0001 Remote Terminal Unit Rack
In stock, ready to ship
Manufacturer: ABB
Product No.: 560MPR03 R0001 1KGT022100R0001
Product Type: Rack
Product Origin: Sweden
Payment: T/T
Weight: 1700g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.

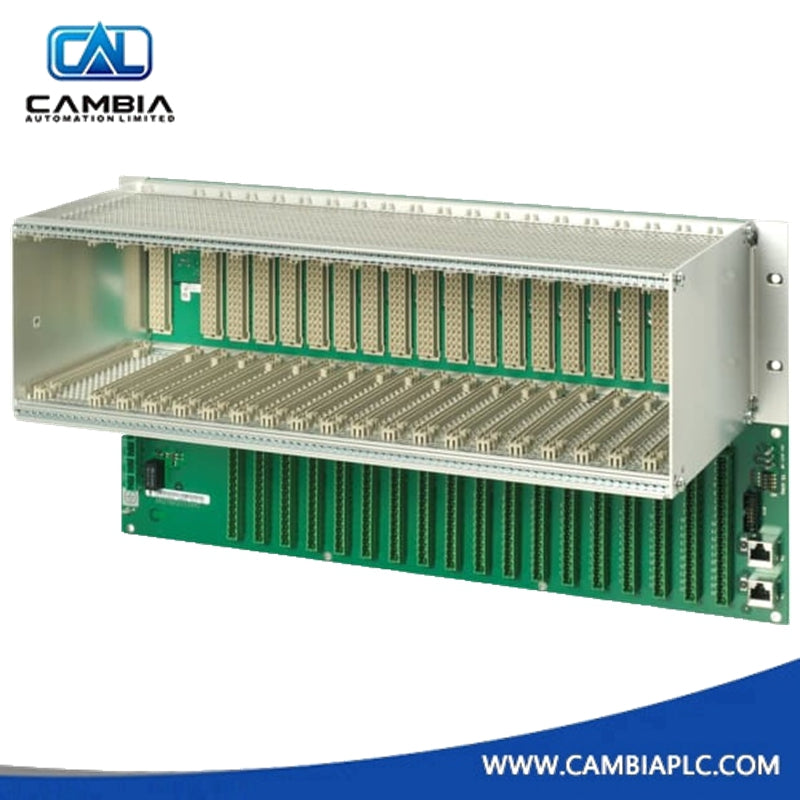

The ABB 560MPR03 R0001 is a 19-inch mounting panel rack specifically designed for the RTU560 product line. It provides a modular environment for the RTU system, enabling reliable operation in harsh conditions such as substations and power plants.
Key Specifications & Features:
| Feature | Description |
|---|---|
| Slot Capacity | 20 total slots (Slots 1–21 layout) |
| Power Slots | 2 dedicated slots for Power Supply Units (PSU) |
| I/O & CMU Slots | Up to 17 slots with redundant PSUs; up to 18 slots with a single PSU |
| Module Support | Supports up to 8 Communication Units (CMU) and 17+ I/O boards |
| Rack Height | 3 U (132.8 mm) for boards; total height with mounting plate is 6 U |
| Weight | Approx. 3.7 kg (empty) |
| Interfaces | 2x RJ45 for Serial Peripheral Bus (SPB) connection to other racks |
Critical Configuration Details:
-
Redundancy:
The rack includes a monitoring circuit that checks internal supply voltages (5 V DC and 24 V DC). If a power supply fails, a status relay contact is triggered for remote alarming. -
Interconnectivity:
Up to 7 racks of the 560MPR03 type can be connected on a single I/O bus segment. -
Bus Connection:
The 560BCU04 bus connection unit is typically required to use multiple Communication Units (CMUs). -
Mounting:
Designed for mounting on a mounting plate within a cubicle or cabinet.
Physical Dimensions:
| Dimension | Value |
|---|---|
| Height | 132.8 mm (3 U) |
| Width | 482.6 mm (19 inches) |
| Depth | 190.5 mm (increases to 260 mm with boards and front plugs inserted) |
