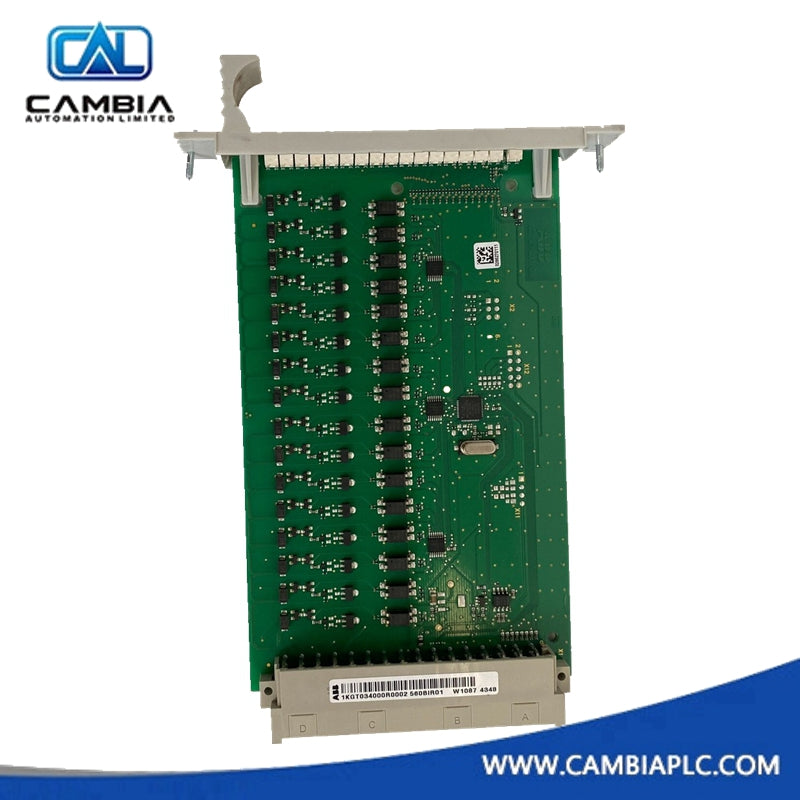

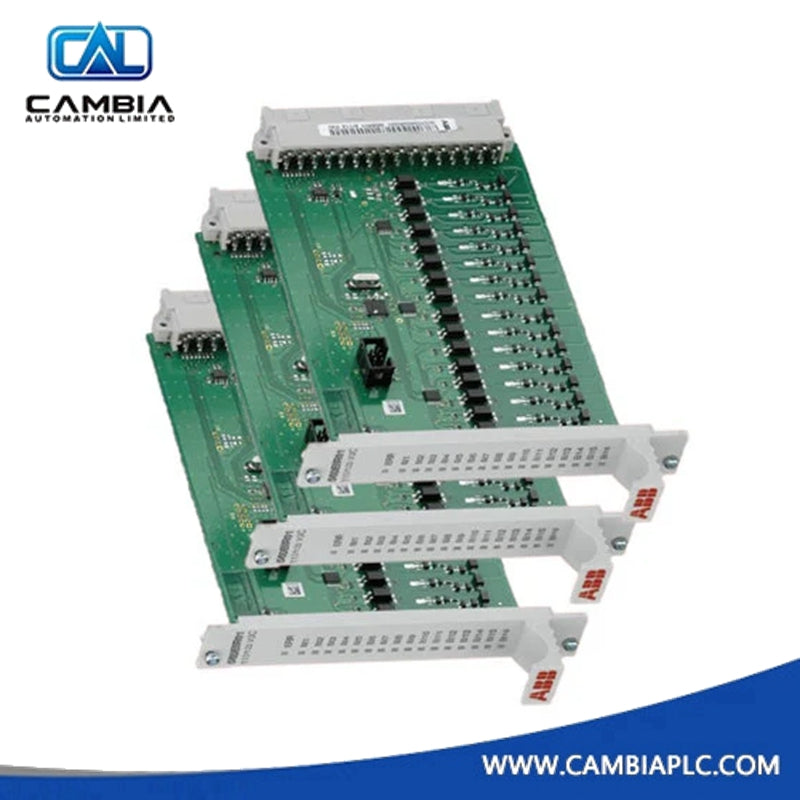

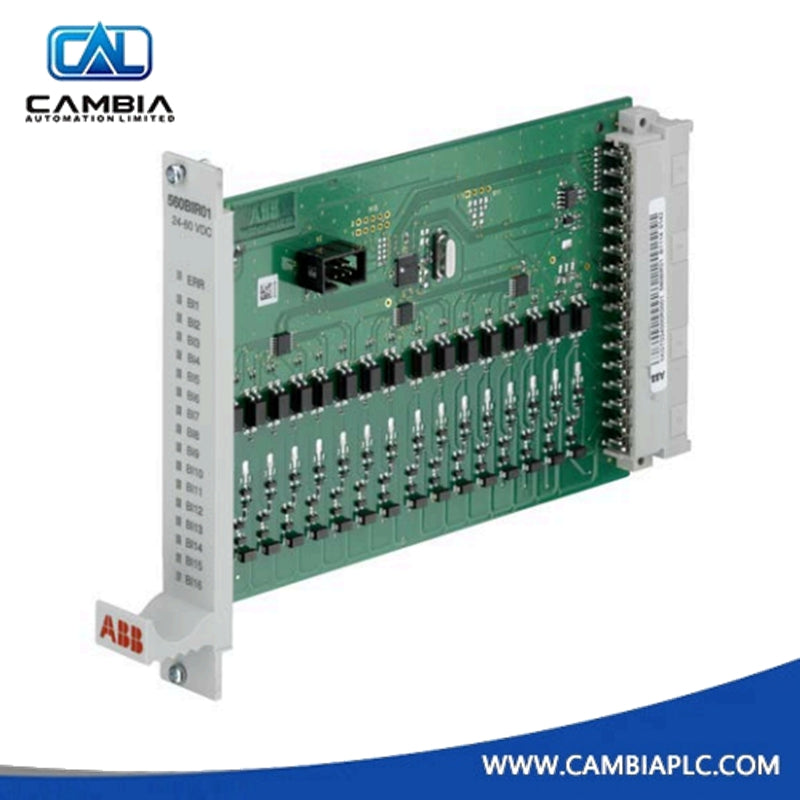

ABB 560BIR01 R0101 1KGT034000R0101 Binary Input Module
In stock, ready to ship
Manufacturer: ABB
Product No.: 560BIR01 R0101 1KGT034000R0101
Product Type: Binary Input Module
Product Origin: Sweden
Payment: T/T
Weight: 2800g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The 560BIR01 is a high-density Binary Input Module designed for the RTU560 system, offering critical monitoring and control functionality.
Key Technical Specifications
| Feature | Specification |
|---|---|
| Part Number | 1KGT034000R0101 (R0101 Variant) |
| Input Channels | 16 Channels (organized in 2 groups of 8) |
| Nominal Input Voltage | 110 V DC / 125 V DC |
| Input Threshold | Logical "1" (High) > 88 V DC |
| Logical "0" (Low) < 66 V DC | |
| Max Input Voltage | 143 V DC |
| Filtering/Debounce | Configurable via RTUtil560 software |
Core Functions & Features
-
Status Monitoring:
Used to monitor circuit breaker positions (Open/Closed), isolator switches, and "Trip" alarms from protective relays. -
Time Tagging:
The module can 1ms time-stamp events, allowing precise tracking of occurrences (e.g., when a breaker trips). This is crucial for Sequence of Events (SOE) analysis. -
Galvanic Isolation:
Inputs are opto-isolated from the RTU's internal logic bus, providing protection from high-voltage surges or electrical noise on the field wiring. This ensures safe operation of other components like the 500PSM03 and 560BCU04. -
LED Feedback:
Each of the 16 channels has a dedicated yellow LED on the front panel, providing real-time status of the input’s state.
