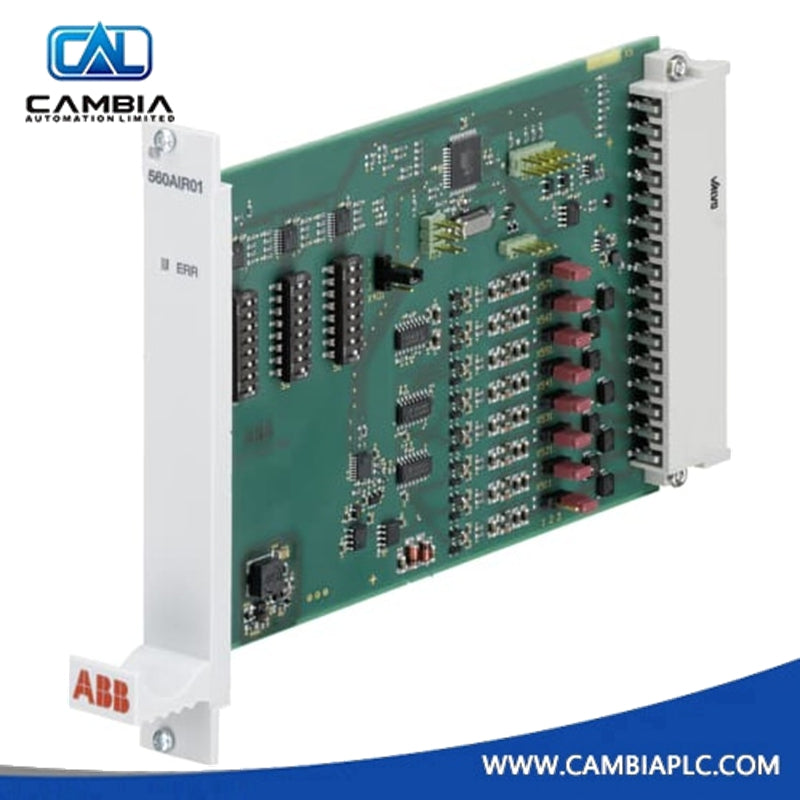

ABB 560AIR01 R0001 1KGT036500R0001 Analog Input Module
In stock, ready to ship
Manufacturer: ABB
Product No.: 560AIR01 R0001 1KGT036500R0001
Product Type: Analog Input Module
Product Origin: Sweden
Payment: T/T
Weight: 2800g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The 560AIR01 is an Analog Input Module designed specifically for the RTU560 series.its primary function is to convert analog signals from field sensors into digital data that the RTU can process.
Key Technical Specifications
| Feature | Specification |
|---|---|
| Part Number | 1KGT036500R0001 |
| Input Channels | 8 Differential Channels |
| Resolution | 16-bit ADC (High precision) |
| Input Ranges | Programmable: ±2 mA, ±5 mA, ±10 mA, ±20 mA, 4...20 mA |
| Isolation | 1500 V DC (Inputs to Logic) |
| System Interface | RTU560 I/O Bus |
Core Capabilities
-
High Accuracy
The 16-bit resolution enables precise measurements in applications such as monitoring transformer temperatures, pressure levels, or flow rates within power grids. -
Flexible Scaling
Each of the 8 channels can be configured independently for different current ranges, providing versatile input options for various field sensors. -
Interference Suppression
Advanced filtering techniques are used to suppress 50 Hz or 60 Hz noise commonly found in high-voltage substation environments, ensuring reliable readings. -
Self-Monitoring
The module performs continuous internal diagnostics, and will report a "Warning" or "Error" status to the Communication Unit (CMU) in the event of a hardware failure.
