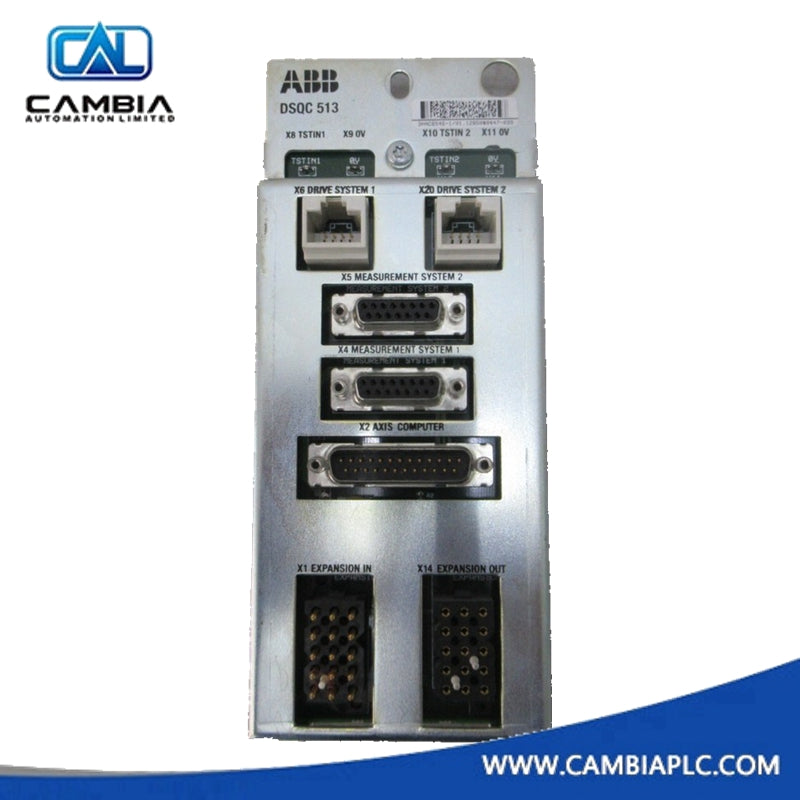

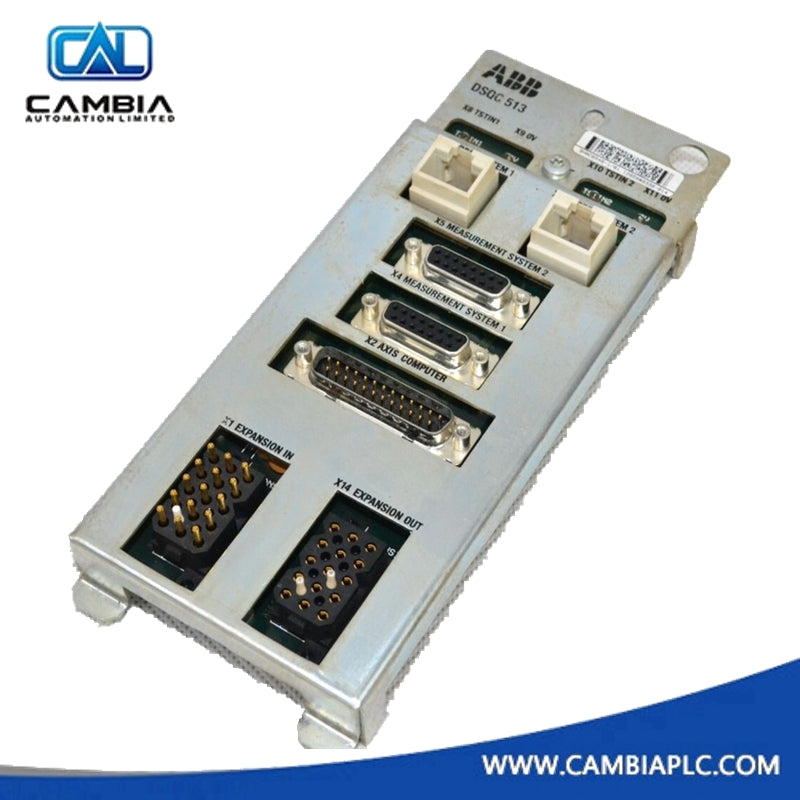

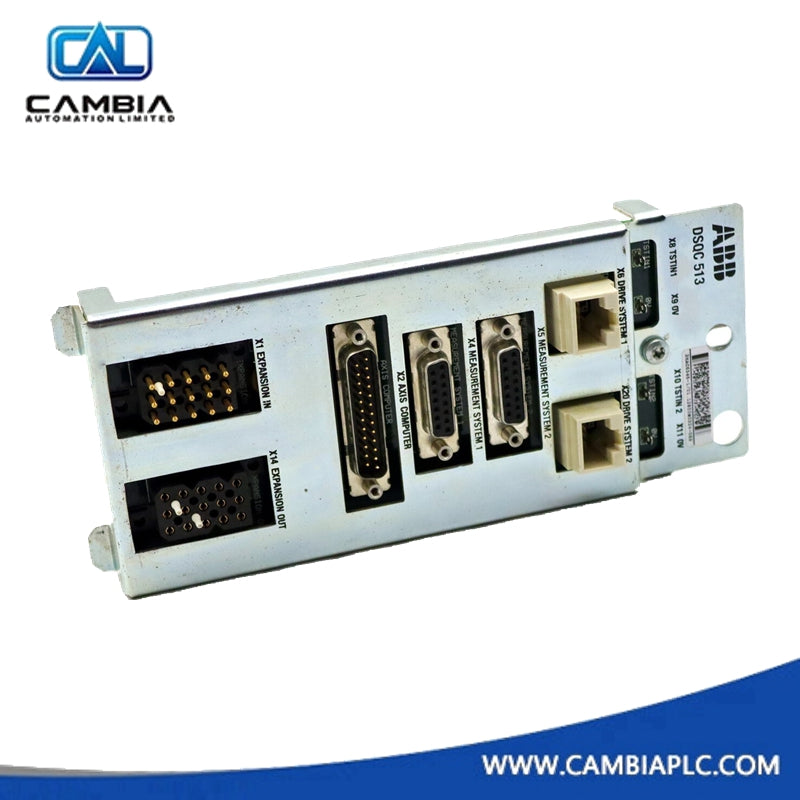

ABB 3HAC6546-1 DQC513 Axis Control Unit
In stock, ready to ship
Manufacturer: ABB
Product No.: 3HAC6546-1 DQC513
Product Type: Axis Control Unit
Product Origin: Sweden
Payment: T/T
Weight: 1460g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The 3HAC6546-1 (DQC513) is an Axis Control Unit used in ABB’s IRC5 robot controller system.
Technical Overview
| Feature | Specification |
|---|---|
| Part Number | 3HAC6546-1 |
| Model Designation | DQC513 |
| System Compatibility | IRC5 M2004 and later versions |
| Primary Function | Axis positioning and motor control feedback |
| Communication | Integrates via the internal drive bus |
Critical Functions
-
Signal Processing: Calculates the torque, speed, and position commands for the robot axes.
-
Feedback Loop: Processes data from motor encoders to ensure the robot’s physical position aligns with the software’s commanded position.
-
Safety Coordination: Works in tandem with the safety system to execute emergency stops and brake control.
