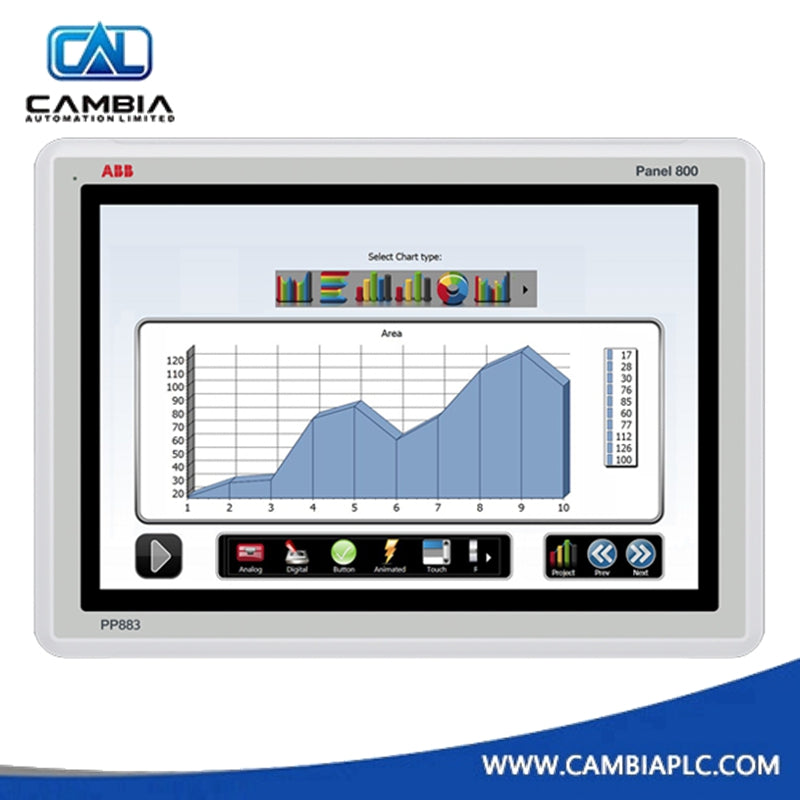

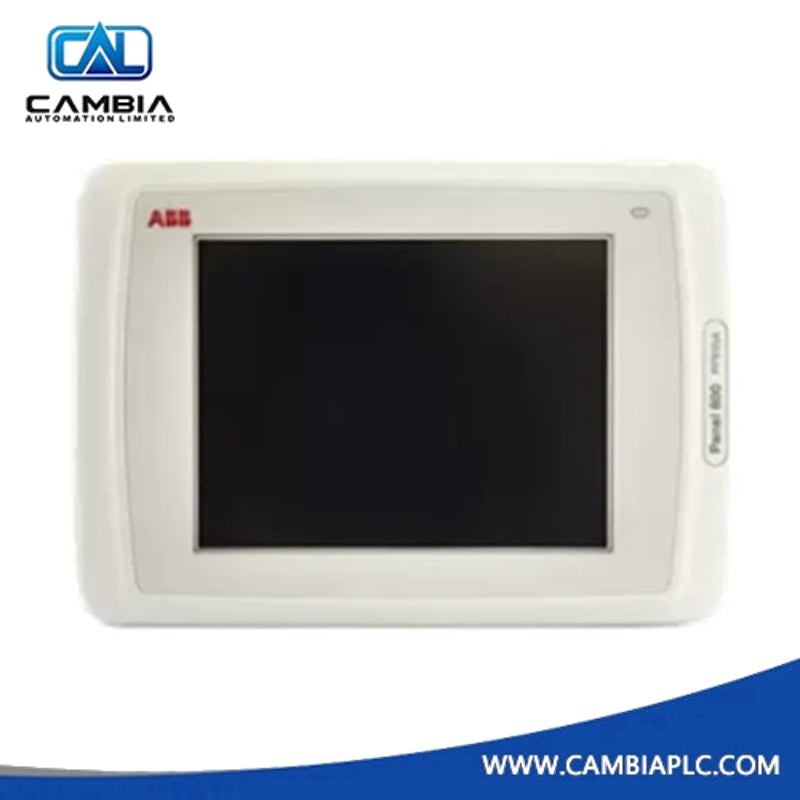

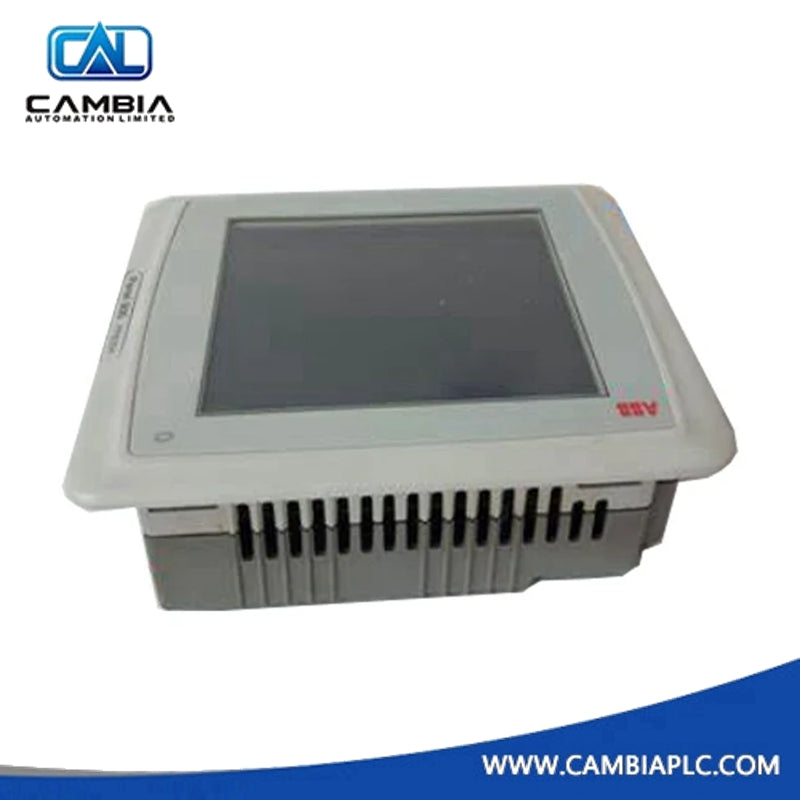

ABB 3BSE092979R1 PP883 Operator Panel

The ABB PP883 (3BSE092979R1) is a high-performance operator panel from the Panel 800 Version 6 series, designed for advanced process and equipment control in industrial environments.
With enhanced functionality, powerful processing performance, and extensive connectivity options, the PP883 is well suited for demanding applications requiring robust and reliable HMI solutions.

Key Features

Display and Touch

• Display Size: 12.1 inch

• Display Type: TFT-LCD with LED backlight

• Color Depth: 262k colors

• Resolution: 1280 × 800 (16:10)

• Brightness: 400 cd/m²

• Viewing Angle:

• Horizontal: 176°

• Vertical: 176°

• Touch Screen: Resistive touch

• Touch Lifetime: Up to 1 million touch operations

Processor and Memory

• Processor: Intel® Atom™, 1.1 GHz

• Main Memory: 1 GB DDR2

• Application Memory: ≥ 1.4 GB

Storage and Clock

• External Storage:

• 1 × SD card slot (up to 2 GB, standard SD format)

• Real-Time Clock: Included

Communication Interfaces

• Ethernet:

• 1 × 10/100/1000 Mbit/s

• 1 × 100 Mbit/s

• USB:

• 3 × USB 2.0 (maximum 500 mA per port)

• Serial Interfaces:

• 2 × RS232

• 2 × RS422/485

• 2 combined ports supporting:

Mechanical and Mounting

• Mounting Options:

• Panel mounting

• VESA 75 × 75 mounting

• Overall Dimensions (W × H × D):
  340 × 242 × 79 mm

• Panel Cut-out Dimensions (W × H):
  324 × 226 mm

• Mounting Depth:
  72 mm (including clearance)

• Weight: 2.6 kg

• Frame Material: Powder-coated aluminum

• Front Foil: Polyester Autotex EBA180L

Electrical and Environmental Specifications

• Power Supply: +24 V DC (18–32 V DC)

• Power Consumption: 22 W

• Protection Rating:

• Front: IP65

• Rear: IP20

• Operating Temperature: −10 °C to +50 °C

• Storage Temperature: −20 °C to +70 °C

• Relative Humidity: 5–85% (non-condensing)
