In stock, ready to ship

  • Manufacturer: ABB

  • Product No.: 3BSE092977R1 DSFR197

  • Product Type: Standard Panel

  • Product Origin: Sweden

  • Payment: T/T

  • Weight: 800g

  • Shipping port: Xiamen

  • Warranty: 12 months

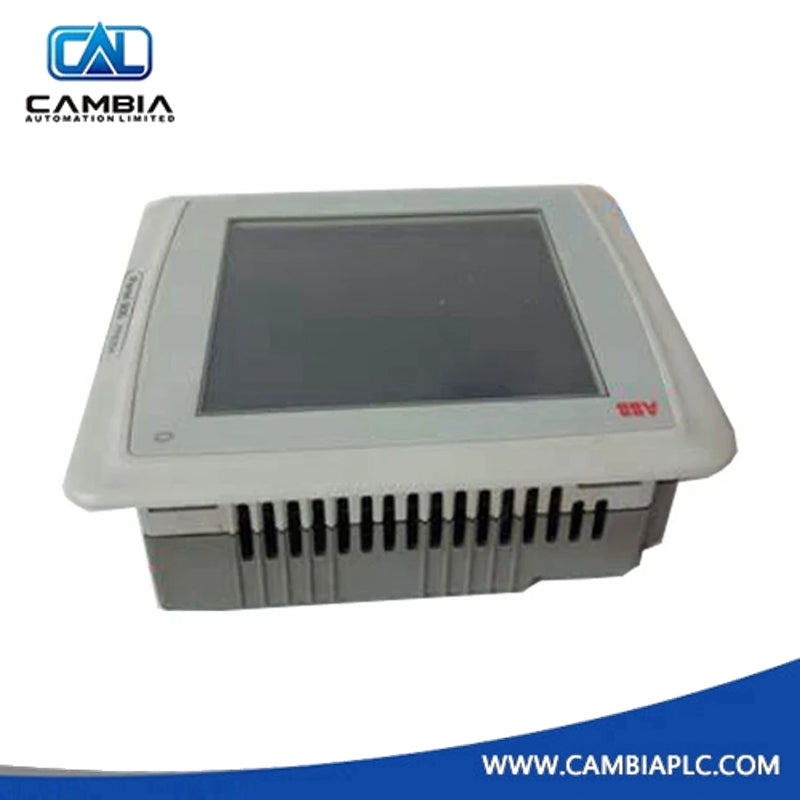

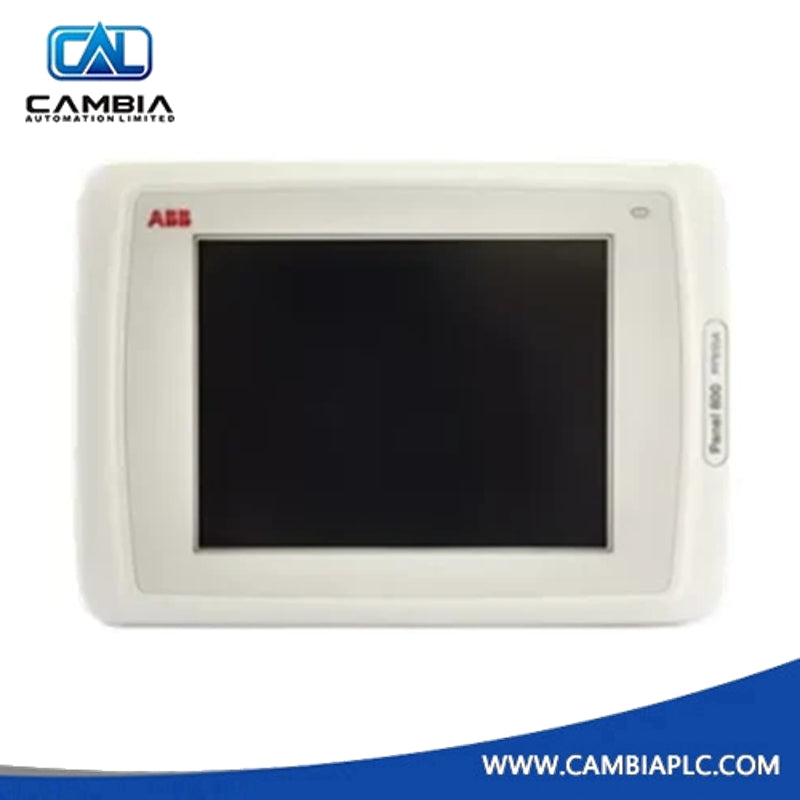

ABB 3BSE092977R1 DSFR197 Standard Panel 7"

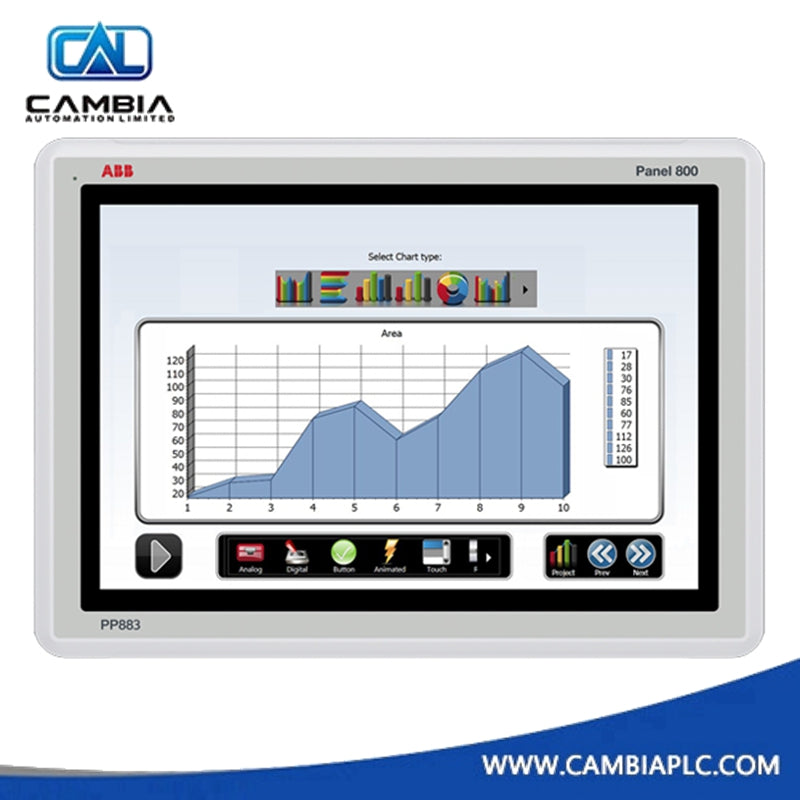

Touchscreen panels featuring brilliant TFT/LED display colors and multi-protocol connectivity.
The Panel 800 standard range includes PP875, PP881, PP883, PP886, and PP895, offering user-friendly HMIs with comprehensive, integrated templates and libraries suitable for a wide variety of industrial processes.

All standard panels are equipped with high-resolution TFT/LED graphics. Most models feature widescreen, high-resolution displays, delivering improved efficiency and excellent operator interaction.

General Information

  • Article Number: 3BSE092977R1

  • Category: Standard

  • Display Type: Touchscreen

  • Display Size: 7 inch

  • Brightness: 350 cd/m²

  • Display Resolution / Aspect Ratio: 800 × 480 (16:9)

  • Processor: ARM9, 1 GHz

  • Main Memory: 512 MB

  • External Storage Media:

    • 2 GB SSD

    • 1.5 GB available for application storage

  • Dimensions (W × H × D): 204 × 143 × 50 mm

  • Net Weight: 0.8 kg

  • Power Supply: +24 V DC (18–32 V DC)

  • Operating Temperature: −10 °C to +60 °C

Dimensions and Mounting

  • Overall Dimensions (W × H × D): 204 × 143 × 50 mm

  • Panel Cut-out Dimensions (W × H): 187 × 126 mm

  • Mounting Depth:

    • 43 mm (panel depth)

    • 143 mm (including clearance)

  • Mounting Options:

    • Panel mounting

    • VESA 75 × 75 mounting
