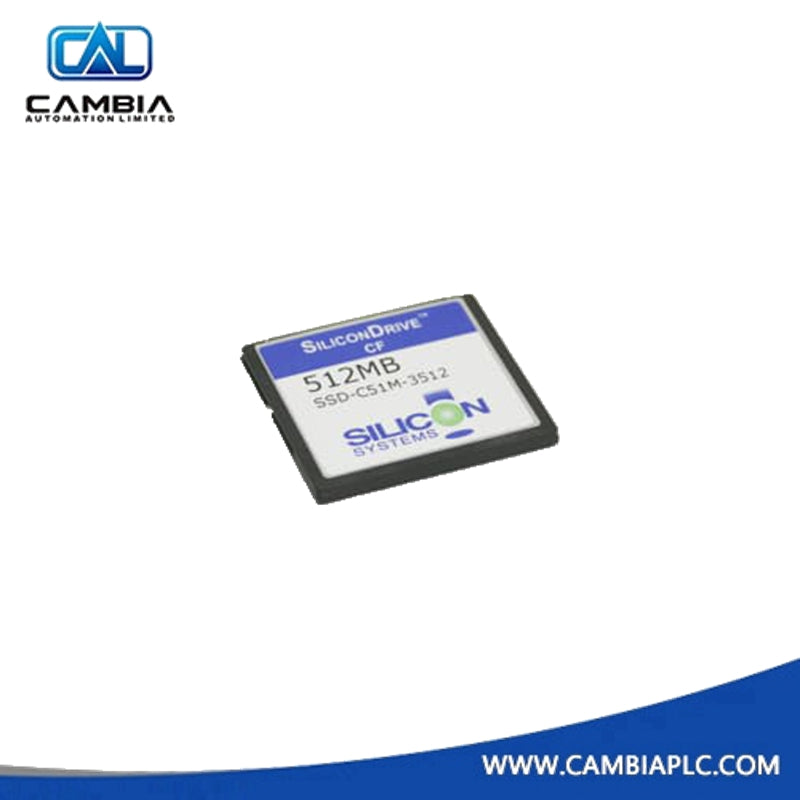

ABB 3BSE042257R1 Compact Flash card
In stock, ready to ship
Manufacturer: ABB
Product No.: 3BSE042257R1
Product Type: Compact Flash card
Product Origin: Sweden
Payment: T/T
Weight: 2g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The MB801V512 (3BSE042257R1) is a specialized industrial-grade Compact Flash card designed for use with ABB Panel 800 series HMIs, including the PP865 operator panel. It functions as an expansion memory module for storing application projects, historical data logs, and recipe files.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 512 MB |
| CF Standard | Type I Compact Flash |
| Compatibility | Panel 800 (Versions 4.1, 5.0, 5.1), AC 800M controllers |
| Memory Type | Industrial-grade (SLC architecture) |
| Operating Temperature | -25°C to +85°C |
Key Functions with PP865 HMI
When used in the PP865 HMI, the MB801V512 card typically supports:
-
Project Backup
Storage and transfer of HMI application projects for backup or hardware replacement. -
External Data Logging
Saving trend data and alarm logs beyond the internal memory capacity of the panel. -
Firmware Updates
Acting as a bootable medium for firmware upgrades or system re-imaging.
Product Status & Replacement
-
Lifecycle Status
The 3BSE042257R1 is classified by ABB as a legacy (Classic) product. -
Recommended Replacement
For higher capacity or availability, ABB recommends 2PAA121688R1, a 4 GB industrial-grade Compact Flash card, designed as a direct successor to the MB801V512.
Important Notes
-
Third-Party Media Warning
Although the PP865 uses a standard CF slot, consumer-grade CF cards are not recommended. These typically lack SLC memory architecture, which is essential for reliability, endurance, and long-term data retention in industrial environments. -
Formatting Requirement
Before installing a new CF card, ensure it is formatted as FAT or FAT32, depending on the firmware version, to guarantee system recognition.
