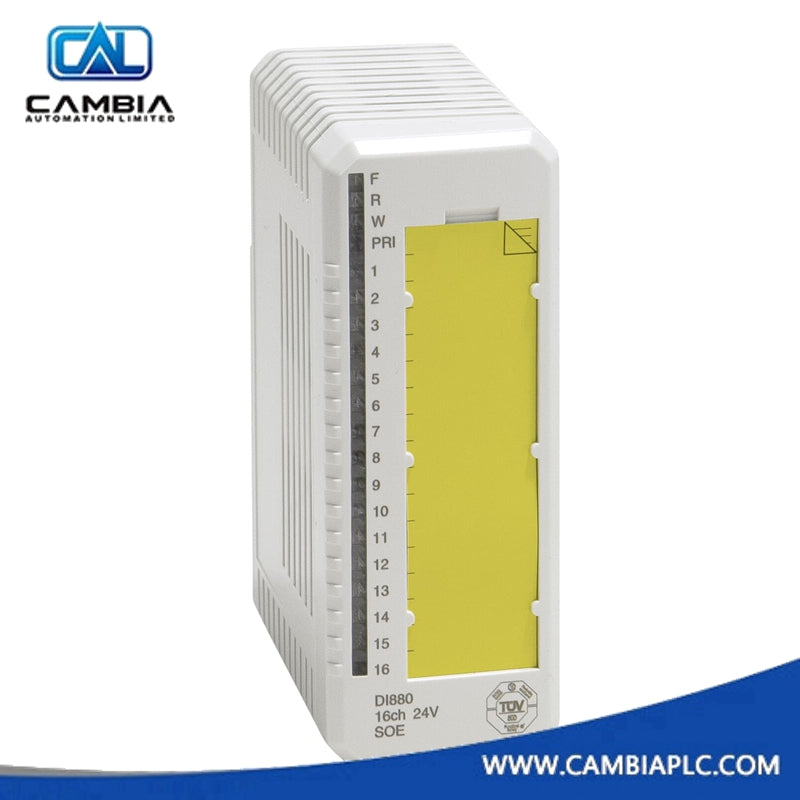

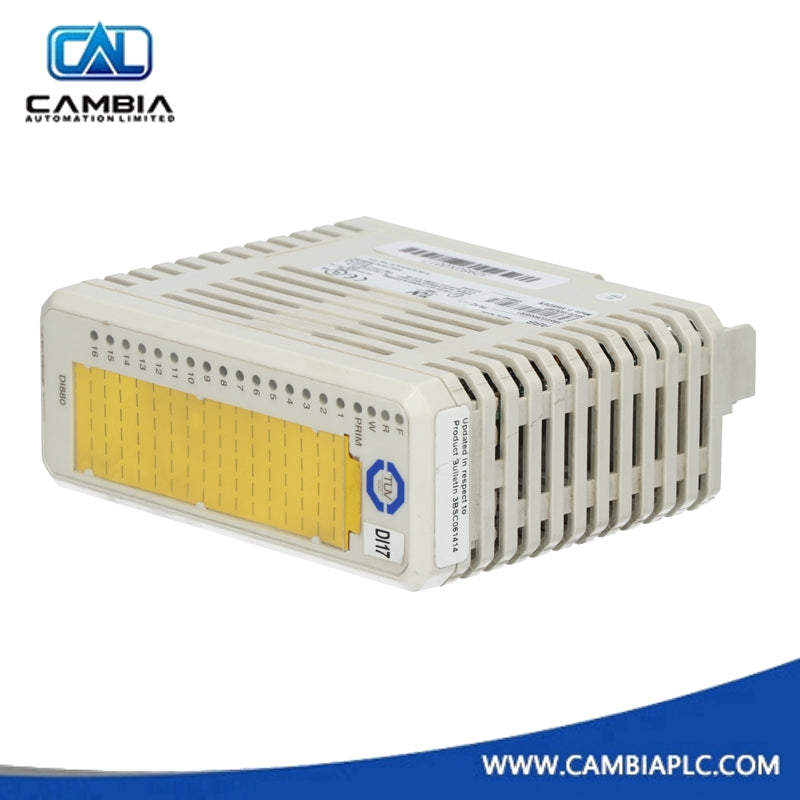

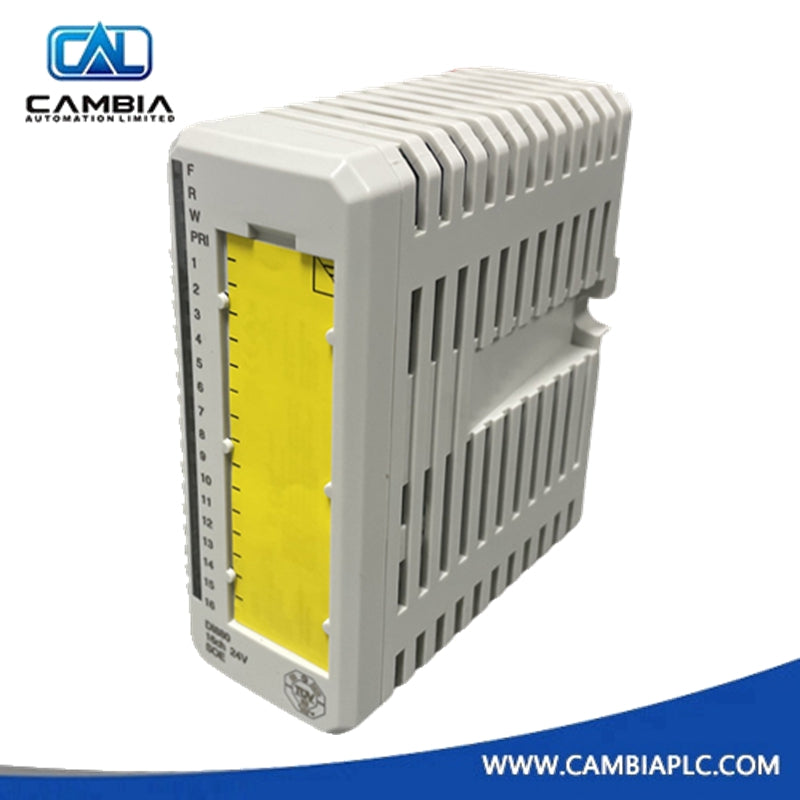

ABB 3BSE028586R1 DI880 Digital Input Module
In stock, ready to ship
Manufacturer: ABB
Product No.: 3BSE028586R1 DI880
Product Type: Digital Input Module
Product Origin: Sweden
Payment: T/T
Weight: 150g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The ABB DI880 (3BSE028586R1) is a 16-channel, 24 V DC digital input module designed for single or redundant configurations within the S800 I/O system. It features Sequence of Events (SOE) functionality, channel-wise transducer power, and SIL3 certification, making it suitable for safety-critical industrial automation applications.
Key Features
-
16 isolated digital input channels in one group
-
Supports 24 V DC signal level with wide input voltage range
-
SOE (Sequence of Events) function with 1 ms resolution
(up to 512 × 16 events) -
Front-panel LED indicators for real-time status monitoring
-
On-board diagnostics with shutter filter suppression
-
Suitable for single or redundant module operation
-
Built-in current-limited sensor power per channel
-
SIL3 certified according to IEC 61508
-
Category 4 compliant per EN 954-1
Technical Specifications
Electrical Characteristics
-
Input Voltage Range:
-
Logic “0”: –30 to +5 V
-
Logic “1”: 11 to 30 V DC
-
Input Impedance: 3.1 kΩ
-
Isolation: Groupwise isolated from ground
-
Filter Time: Selectable, 0 to 127 ms
-
Event Recording Resolution: 1 ms
Power Requirements
-
Power Dissipation: 2.4 W
-
ModuleBus Current Consumption (+5 V): Up to 150 mA
-
External Current Consumption:
-
15 mA (excluding sensor load)
-
Up to 527 mA including sensor load
Mechanical Specifications
-
Width: 45 mm (1.77 in)
-
Height: 119 mm (4.7 in)
-
Depth:
-
102 mm (4.01 in)
-
111 mm (4.37 in), including connector
-
Weight: 0.15 kg (0.33 lbs.)
Environmental Conditions
-
Operating Temperature: 0 to +55 °C (32 to 131 °F)
