ABB 3BSE022460R1 Module Termination Unit

In stock, ready to ship

  • Manufacturer: ABB

  • Product No.: 3BSE022460R1

  • Product Type: Module Termination Unit

  • Product Origin: Sweden

  • Payment: T/T

  • Weight: 500g

  • Shipping port: Xiamen

  • Warranty: 12 months

ABB 3BSE022460R1 Module Termination Unit

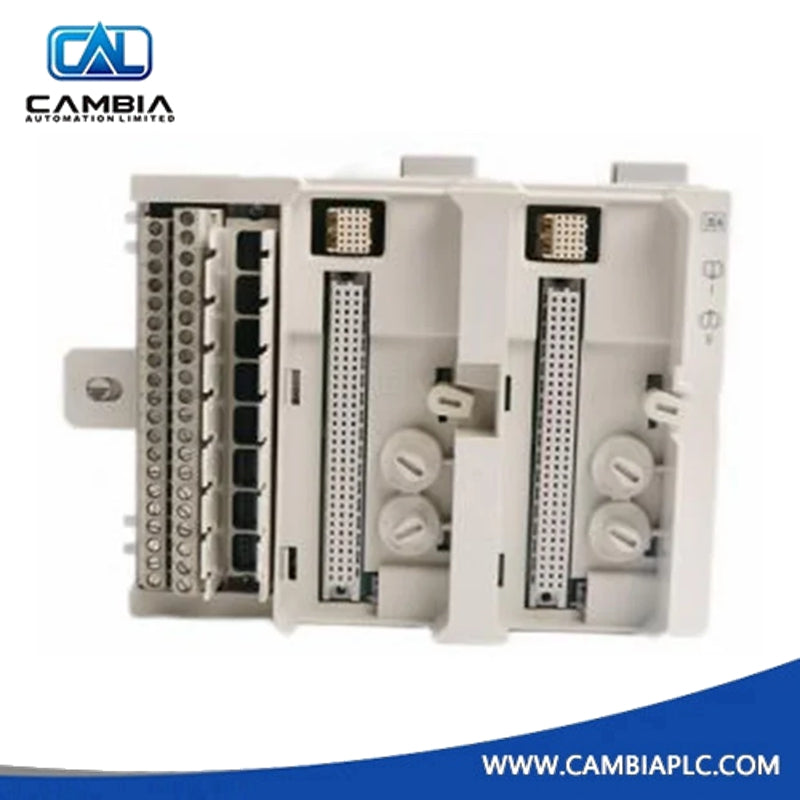

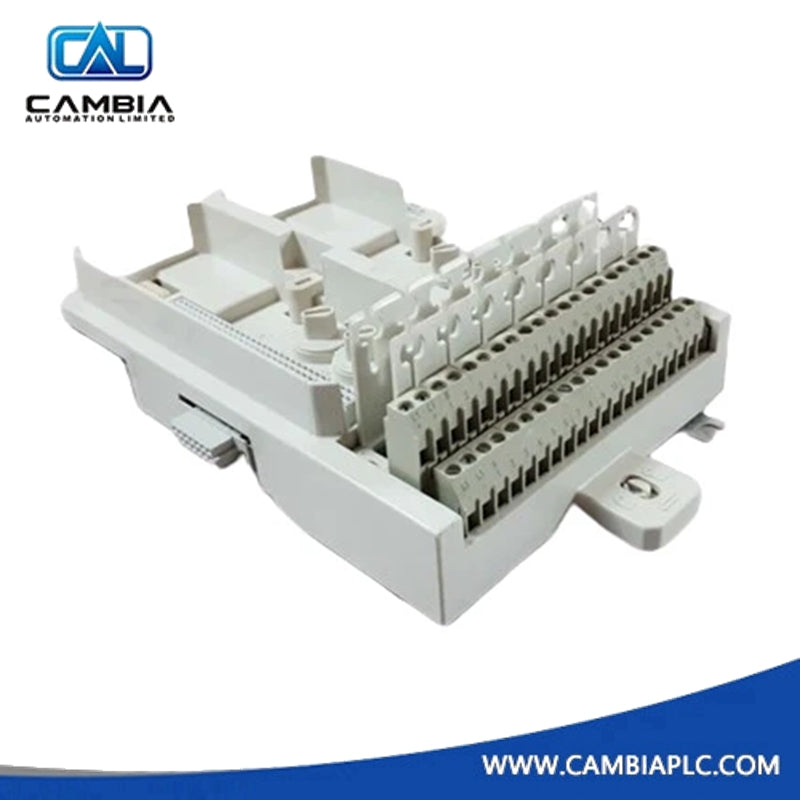

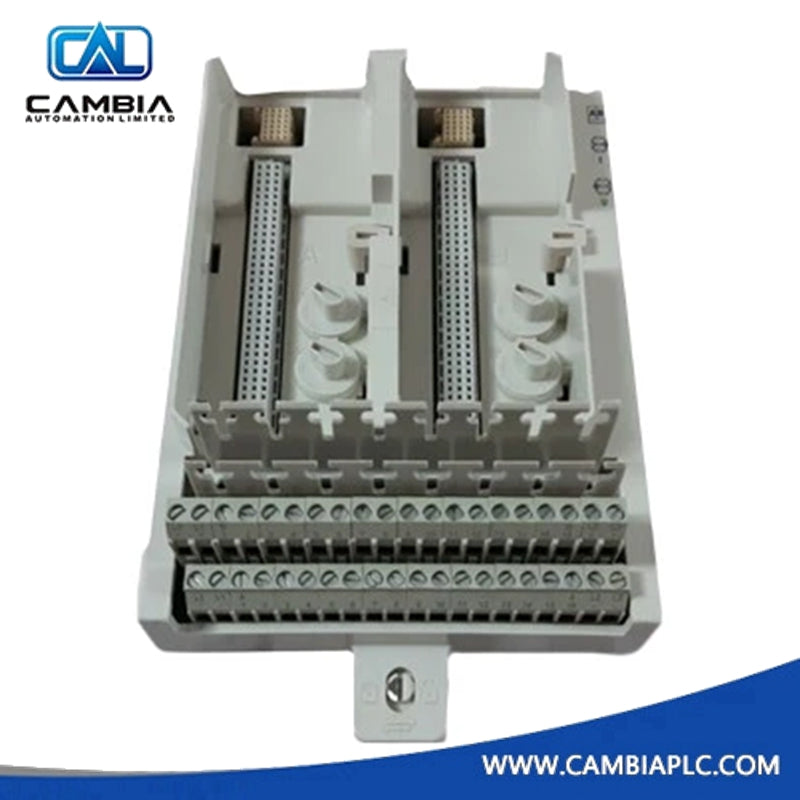

The ABB TU846 3BSE022460R1 is a passive Module Termination Unit designed for redundant field communication interfaces CI840/CI840A and redundant I/O configurations. It supports dual power supply and ModuleBus redundancy, ensuring high reliability and availability in industrial automation systems.

General Information

  • Article Number: 3BSE022460R1

  • Communication Protocol: PROFIBUS DP-V1

  • Supported Systems: Redundant CI840/CI840A, Redundant I/O

  • Line Redundancy: Yes

  • Module Redundancy: Yes

  • Hot Swap Capability: No

  • Power Supply: 24 V DC (19.2 – 30 V)

  • Mounting Orientation: Vertical or Horizontal

Mechanical and Electrical Specifications

Connectors

  • PROFIBUS: DSUB-9

  • Service Ports: RJ45

ModuleBus Power Distribution

  • 5 V: Maximum 1.5 A

  • 24 V: Maximum 1.5 A

Wiring and Installation

  • Mechanical Keying: 36 different key combinations

  • Wire Size Range: 0.25 – 2.5 mm² (24 – 14 AWG)

  • Recommended Tightening Torque: 0.5 – 0.6 Nm

  • Stripping Length: 6 – 7.5 mm (0.24 – 0.30 in)

Electrical Ratings

  • Rated Insulation Voltage: 50 V

  • Dielectric Test Voltage: 500 V AC

Environmental and Certification Data

  • CE Marking: Yes

  • Safety Standards:

    • EN 61010-1

    • UL 61010-1

    • EN 61010-2-201

    • UL 61010-2-201

  • Hazardous Area Approvals:

    • cULus Class I, Zone 2

    • ATEX Zone 2

Environmental Conditions

  • Operating Temperature:

    • 0 to +55 °C (32 to 131 °F)

    • Approval range: +5 to +55 °C

  • Storage Temperature: -40 to +70 °C (-40 to +158 °F)

  • Relative Humidity: 5 to 95%, non-condensing

  • Maximum Ambient Temperature:

    • 55 °C (131 °F)

    • 40 °C (104 °F) with vertical mounting

  • Equipment Class: Class I (earth protected, IEC 60536)

  • Ingress Protection: IP20 (IEC 529 / IEC 144)

Dimensions

  • Width: 124 mm (4.88 in)

  • Height: 186 mm (7.32 in), including latch

  • Depth: 47 mm (1.85 in)
