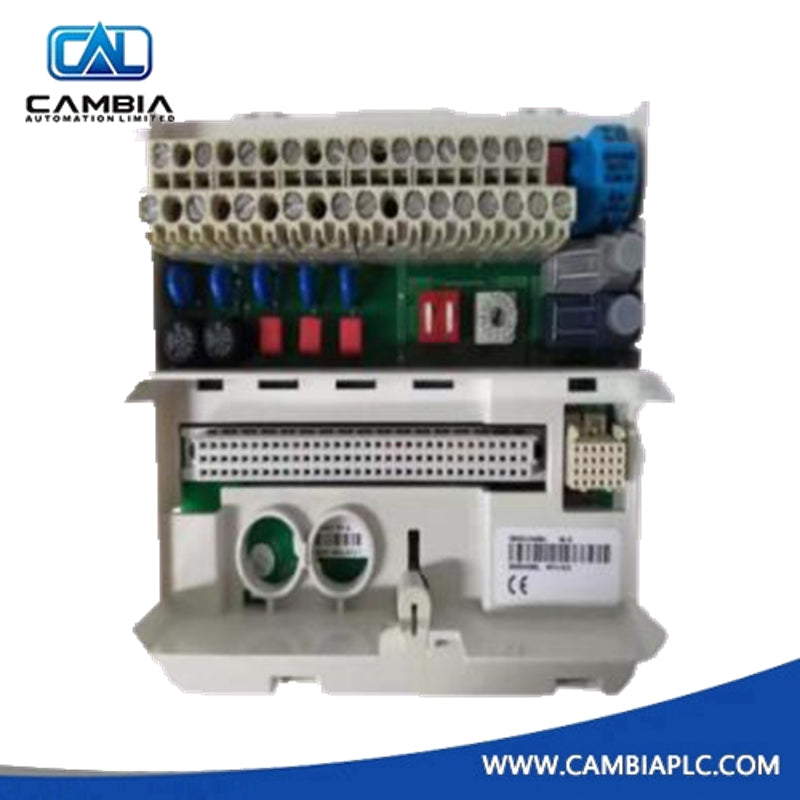

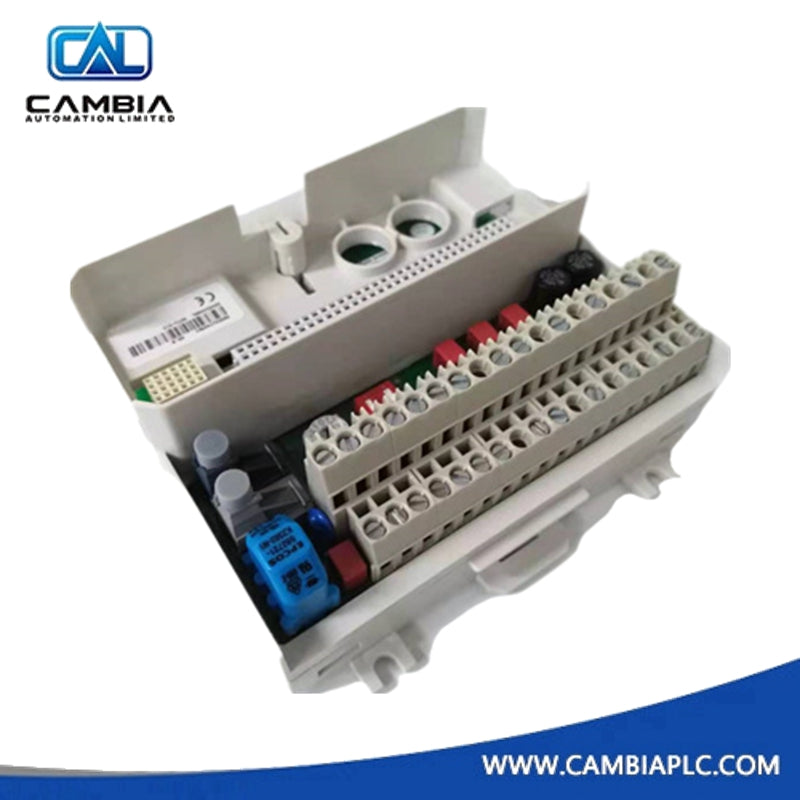

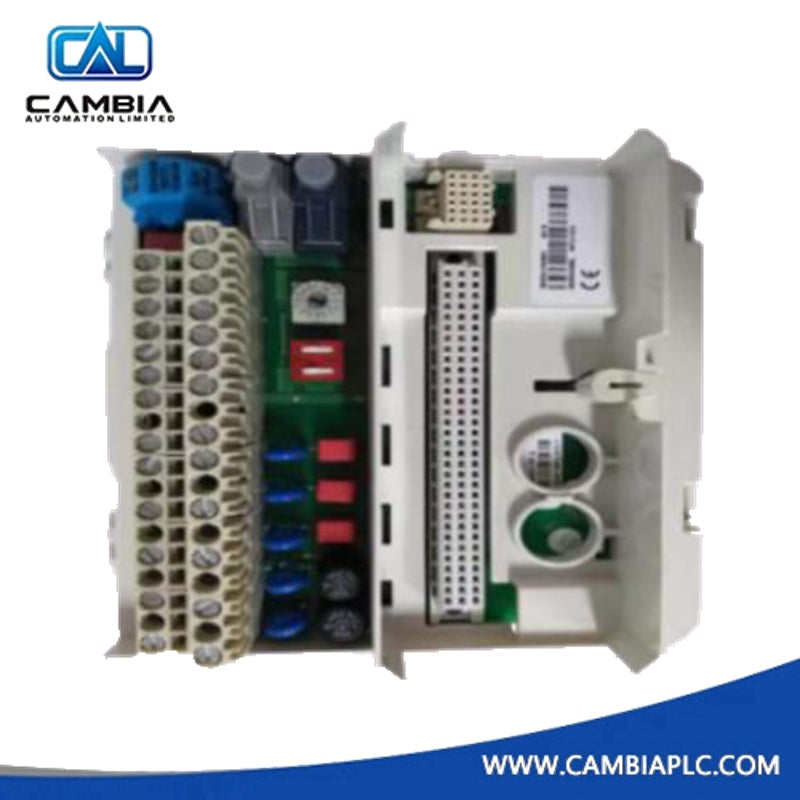

ABB 3BSE017429R1 Digital Output Module
In stock, ready to ship
Manufacturer: ABB
Product No.: 3BSE017429R1
Product Type: Digital Output Module
Product Origin: Sweden
Payment: T/T
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The ABB 3BSE017429R1, commonly referred to as DO814, is a robust 16-channel digital output module designed for the Advant S800 I/O system.
Key Specifications & Features
-
Number of Channels: 16 current-sourcing digital outputs
-
Rated Output Voltage: 24 V DC (typical operating range: 19.2 V to 30 V)
-
Output Current: Up to 0.5 A per channel
-
Protection: Short-circuit and over-temperature protection
-
Isolation: Outputs isolated from the ModuleBus; channels share a common group ground
Technical Overview
| Feature | Specification |
|---|---|
| Product Type | Digital Output Module (DO814) |
| Number of Channels | 16 |
| Rated Output Current | 500 mA per channel |
| Max Leakage Current | 0.5 mA |
| Power Dissipation | Typical 2.4 W |
| Status Indication | Individual channel LEDs + Fault / Run LEDs |
