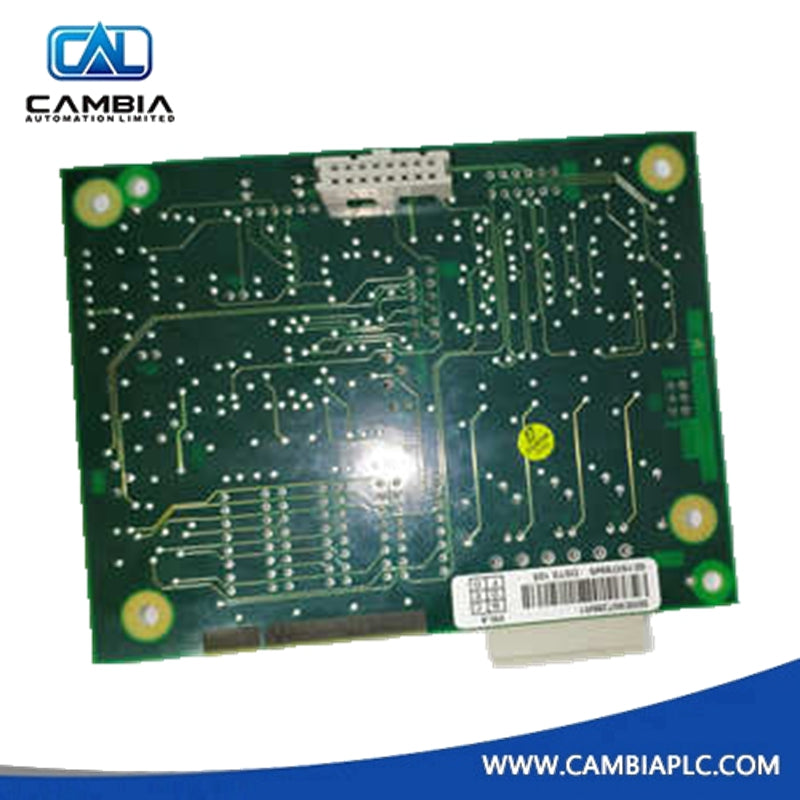

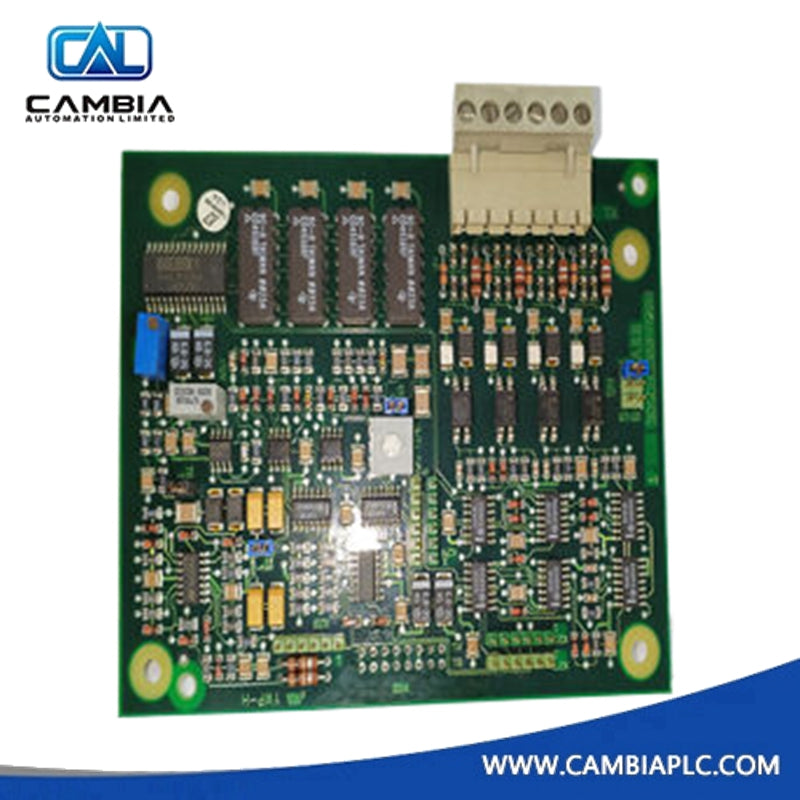

ABB 3BSE007286R1 DSTS105 Power Supply Module
In stock, ready to ship
Manufacturer: ABB
Product No.: 3BSE007286R1 DSTS105
Product Type: Power Supply Module
Product Origin: Sweden
Payment: T/T
Weight: 420g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The ABB 3BSE007286R1 (DSTS105) is a specialized module used in ABB’s legacy control systems, particularly within the MasterPiece 200 and Advant Controller 400 (AC400) platforms.
Technical Function
The DSTS105 generates stable reference and ramp signals used to smoothly increase or decrease setpoints such as motor speed, torque, or process variables. By preventing instantaneous changes, the module helps reduce:
-
Mechanical stress
-
Electrical surges
-
Process instability
This makes it especially valuable in continuous-process and motion-control applications.
Technical Specifications
| Attribute | Specification |
|---|---|
| Product ID | 3BSE007286R1 |
| Type Designation | DSTS 105 |
| System Compatibility | MasterPiece 200 / Advant OCS (AC400) |
| Primary Function | Ramp and setpoint generation |
| Mounting | Subrack / Rack-mounted |
| Product Status | Legacy / Obsolete (spare-part availability only) |
Key Features
-
Controlled Acceleration & Deceleration
Generates linear or S-curve ramps for smooth process transitions. -
High Signal Integrity
Provides precise analog reference signals for consistent drive and process performance. -
Industrial-Grade Reliability
Designed for continuous 24/7 operation in harsh industrial environments, typical of the MasterPiece system family. -
Modular Design
Easily integrates into standard ABB backplane and bus systems for power and communication.
